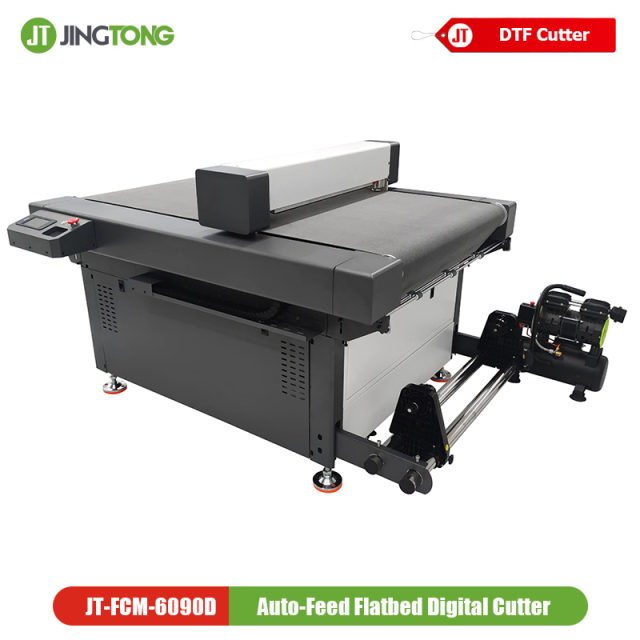

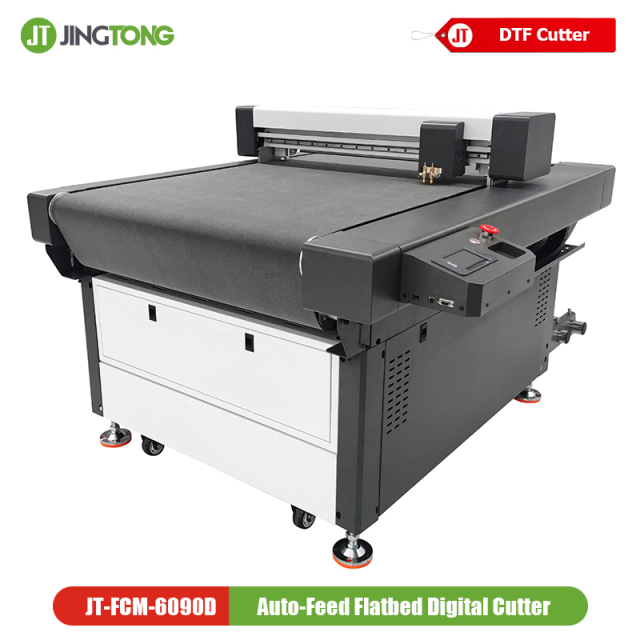

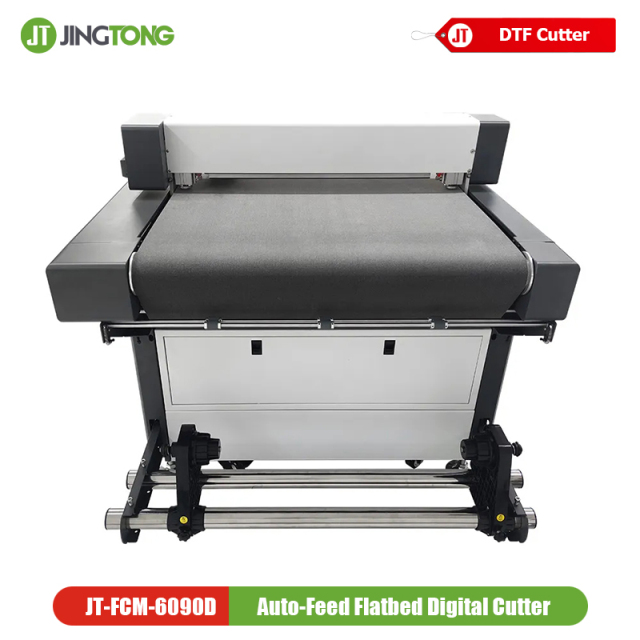

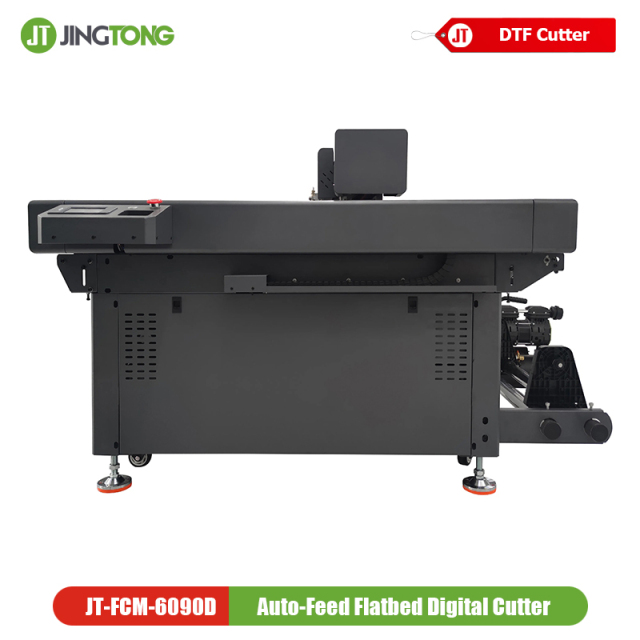

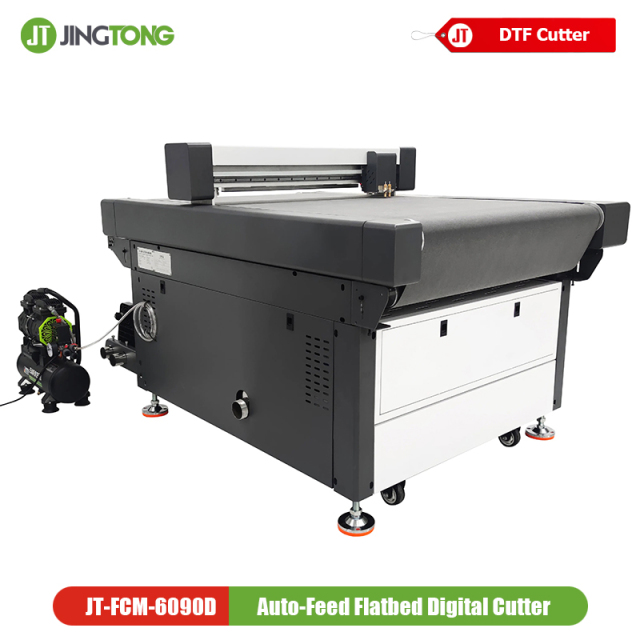

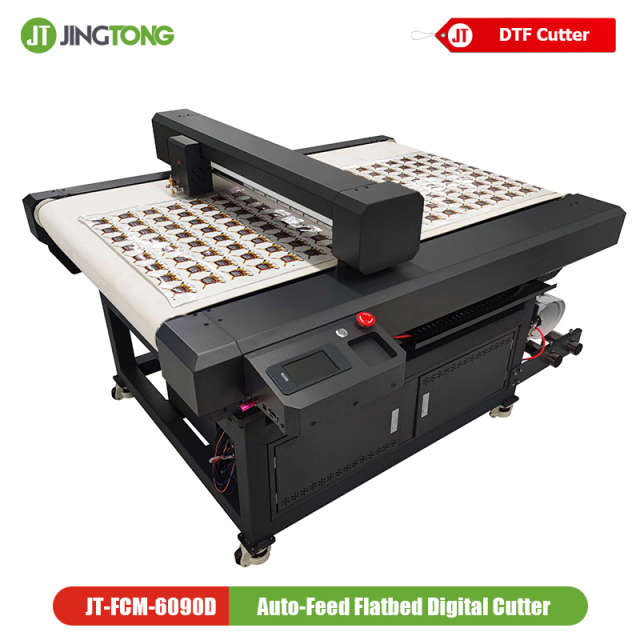

The JT-FCM-6090D Flatbed Cutter is a professional digital cutting machine designed for DTF printing, vinyl cutting, label production, and digital print finishing. Equipped with CCD contour recognition, servo motor control, and a vacuum adsorption platform, this Flatbed Cutter delivers accurate and efficient cutting for DTF PET film, stickers, PVC, TPU, and other flexible materials.
With automatic contour cutting and continuous feeding capability, the JT-FCM-6090D Flatbed Cutter helps improve production efficiency while maintaining stable and precise cutting quality for industrial applications.
Product Highlight
One-key operation, efficient cutting for DTF film
Flatbed DTF film cutter with conveyor feeding, a special purpose auto feed flatbed digital cutter for DTF printing industry with features optimized according to characters of material applied in the DTF print field.
- Intelligent Sensor: DTF printer and cutter can be linked, printing and cutting synchronization, automatic path making, continuous cutting, single copy repeat cutting.
- Clean and Smooth Cutting Edges: Perfect cutting force management provides clean, smooth and debris-free edges
- High Precision: Capable of cutting fine strings of text with precision and tearing off pieces easily.
- Advanced Algorithm: Obvious elimination of distorted, rounded, or lifted corners.
Professional Features
 |
 |
 |
| SEGMENTED AREA CUTTING OPERATION |

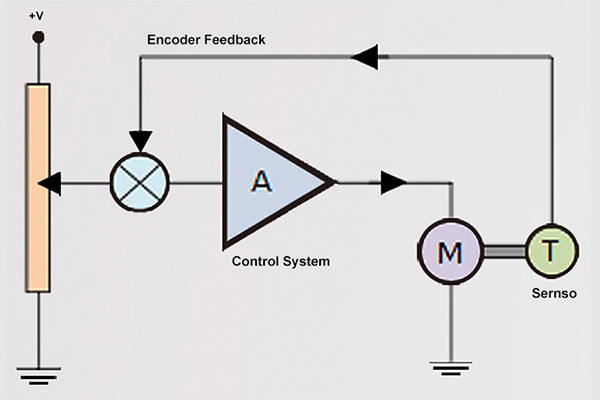

SERVO MOTOR/ CLOSED LOOP CONTROL |
DOTTED LINES CUTTING |

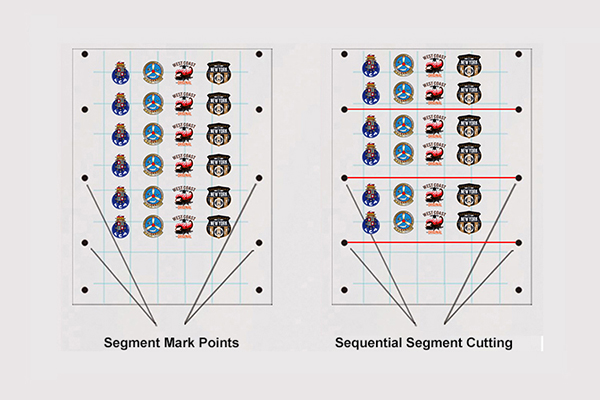

| Contour cutting is performed sequentially in each segmented area, which improves accuracy and tracking for long roll media, heavier media or media that has been laminated. |
Cutting / Plotting will be stopped when tool carriage is overloading, it is an important safety feature to protect tool carriage when media is jammed. |

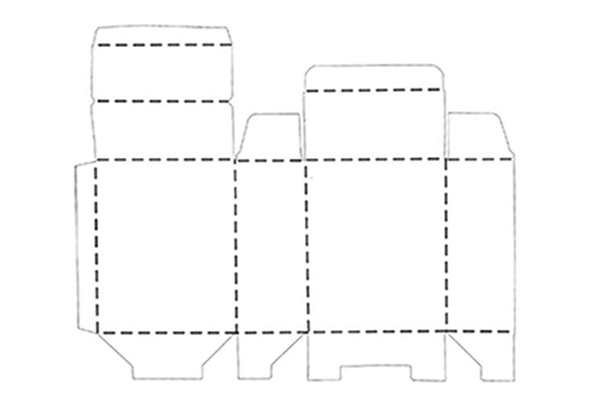

Dotted line cutting is typically available for medias with 2 layers and also kinds of paper. |
 |
 |
 |
| FAST CUTTING/ PLOTTING OPERATION |
HALF CUT /PERF CUT |
MULTIPLE LAYERS SOLUTION |

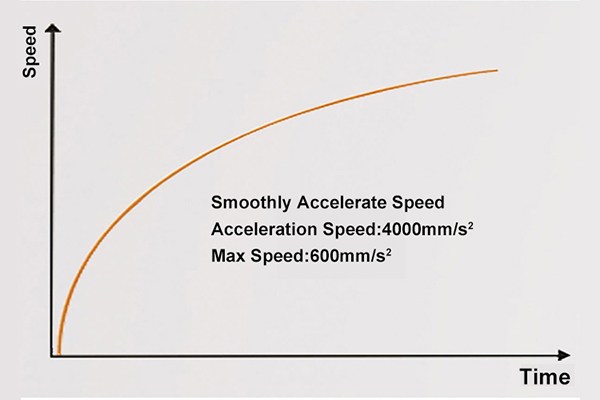

| Fast speed for volume production: Servos bring out smooth acceleration, big torque, precise cutting /plotting, and excellent durability. |
Half cut / Perforation cut are available, every time you may carry out either one or both. |

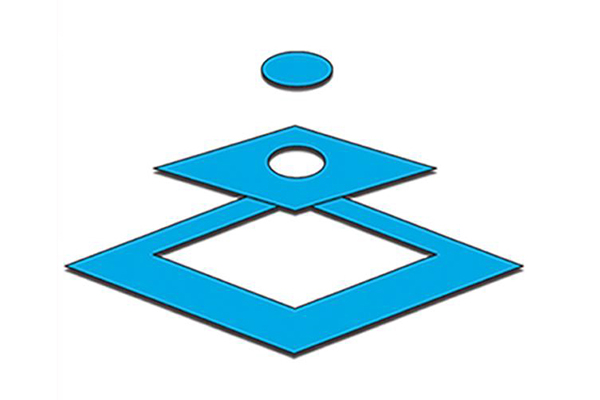

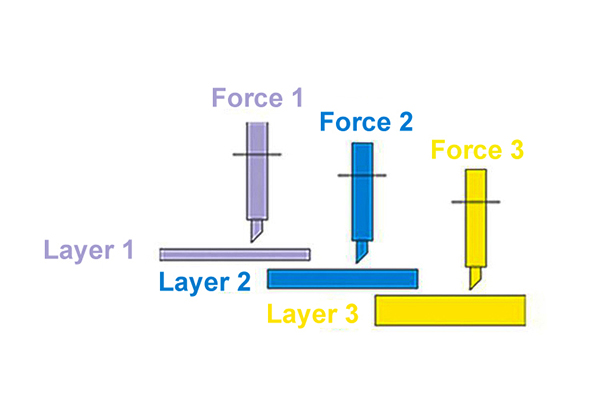

For media with multiple layers, different cutting force is applied for different layer. |
 |
 |
 |
| SCANNING BAR-CODE WHEN OFFLINE |
FAST REGISTRATION MARKS DETECTION BY CCD CAMERA |
MULTI-FUNCTIONAL APPLICABILITY |

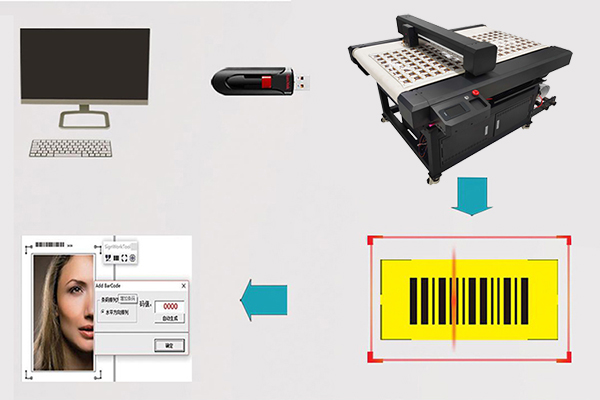

| One click to recognize the cutting job from those saved in the USB memory by scanning the Bar-code which is pre-printed, no need to connect to the computer. |

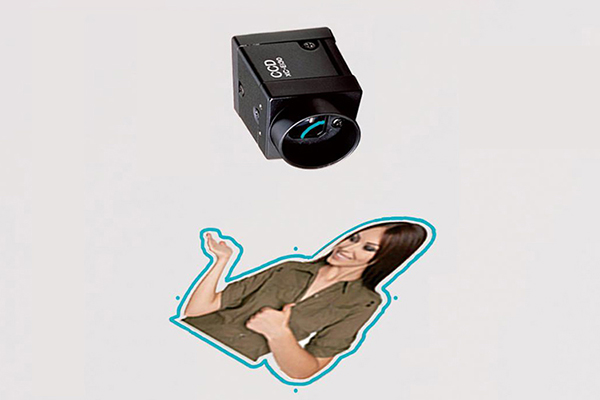

CCD cameras are usually combined with associated software for fast and efficient inspection of complex mold-free contours. Solve the problems of artificial positioning errors and poor printing quality. |
In addition to PET film, it can also cut TPU, PVC, label materials, etc. One machine can be used for multiple purposes. It supports straight line, curve and special-shaped cutting. |
| Model |
JT-FCM-6090D |
| Cutting Area |
610 x 900mm |
| Cutting Speed |
1mm – 800mm/s |
| Cutting Thickness |
≤ 1.2mm |
| Cutting Accuracy |
0.05mm |
| Cutting Pressure (KG) |
1kg |
| Blade Head |
Dual blade structure |
| Cutting Mode |
Half-cut, full-cut |
| Cutting Materials |
UV DTF film, DTF film, etc. |
| Application Scenarios |
Packaging printing, paper products industry, garment cutting, label industry, and automotive industry |
| Positioning Method |
Camera positioning |
| Operation Interface |
HD touch screen, multi-language support |
| Material Holding Method |
Vacuum adsorption |
| Working Method |
Roll-type felt automatic feeding |
| Drive Method |
High-speed servo drive |
| Standard Interfaces |
USB, USB flash drive, offline, Ethernet port |
| Compatible Software |
PrintFactory Production/SignMaster/Ai/AutoCAD/CorelDRAW |
| Compatible Format |
HPGL |
| Computer System |
Windows7 / Windows10 / Windows11 |
| Power Supply/Power |
110V/220V, 50~60HZ
Power: Machine 2.5kw, Air pump 1.5kw |
| Temperature |
18℃-28℃ | 64.4°F – 82.4°F |
| Humidity |
50%-60% |
| N.W |
Machine 220kg | 485lb
Air pump 20kg | 44.1lb |
| G.W |
360kg | 793.66lb |
| Machine: |
Machine: 146cm × 130cm × 105cm / 57.48″ × 51.18″ × 41.34″
Air pump: 39cm x 37cm x 35cm / 15.35″ × 14.56″ × 13.78″ |
| Packaging |
170cm × 128cm × 120cm / 66.93″ × 50.39″ × 47.24″ |
The JT-FCM-6090D Flatbed Cutter is widely used for DTF PET film cutting, vinyl stickers, labels, decals, and digital print finishing applications. It is ideal for DTF printing factories, advertising companies, and custom apparel production requiring accurate automatic contour cutting and stable industrial performance.
FAQ
Q1: What materials can the 6090 UV printer print on?
A: It can print on a wide range of materials including acrylic, glass, wood, metal, ceramic, plastic, leather, and more. It is suitable for both rigid and some flexible materials.
Q2: What is the difference between XP600, i1600, and i3200 printheads?
A:
• XP600: Cost-effective, suitable for entry-level and general printing
• i1600: Better stability and finer details
• i3200: Higher speed, industrial-level performance, longer lifespan
Q3: Does the printer support white ink and varnish?
A: Yes, it supports CMYK + White + Varnish printing, allowing printing on dark surfaces and creating 3D or glossy effects.
Q4: Can it print on cylindrical objects like bottles?
A: Yes, with an optional rotary device, the printer can print on bottles, mugs, tumblers, and other cylindrical items.
Q5: Is this printer suitable for small businesses?
A: Absolutely. The 6090 UV printer is compact, affordable, and versatile, making it ideal for startups, small businesses, and customization shops.
Q6: What software is compatible with this printer?
A: It supports popular RIP software such as MainTop and PhotoPrint, ensuring easy operation and professional color management.
Q7: What is the difference between UV printer and UV DTF printer?
A: UV printers print on substrates directly while UV DTF printers print on AB films first, and then attach to the substrates. UV DTF printer is extended from UV printer to make up for the shortcomings of UV printing.
