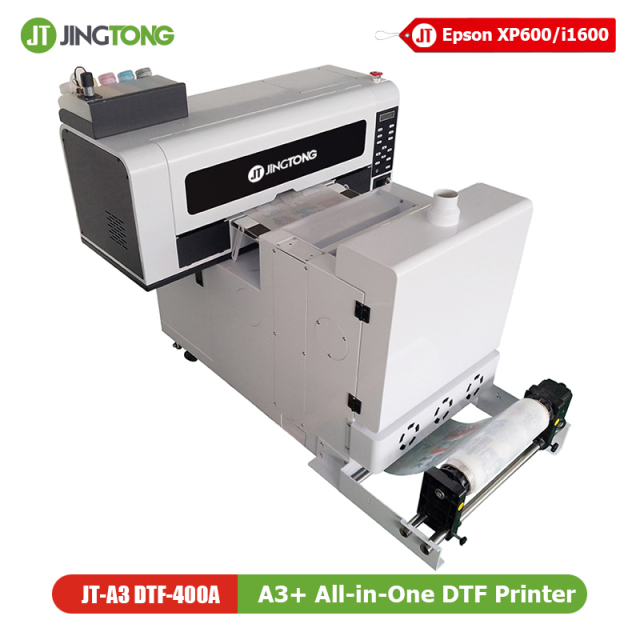

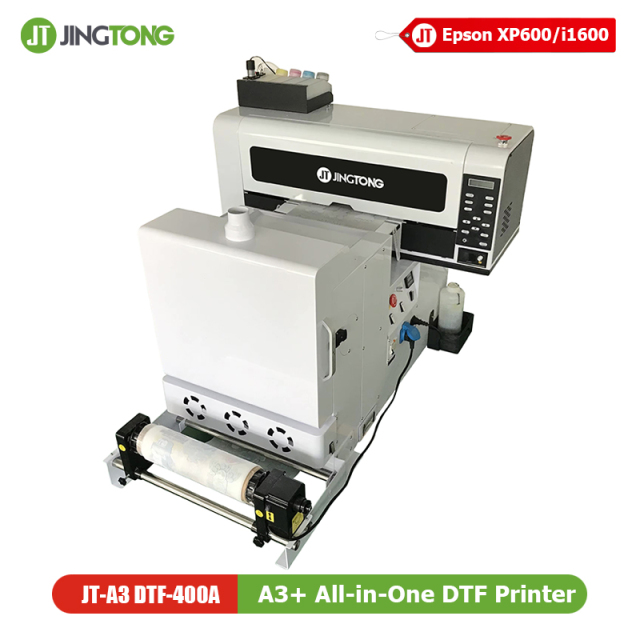

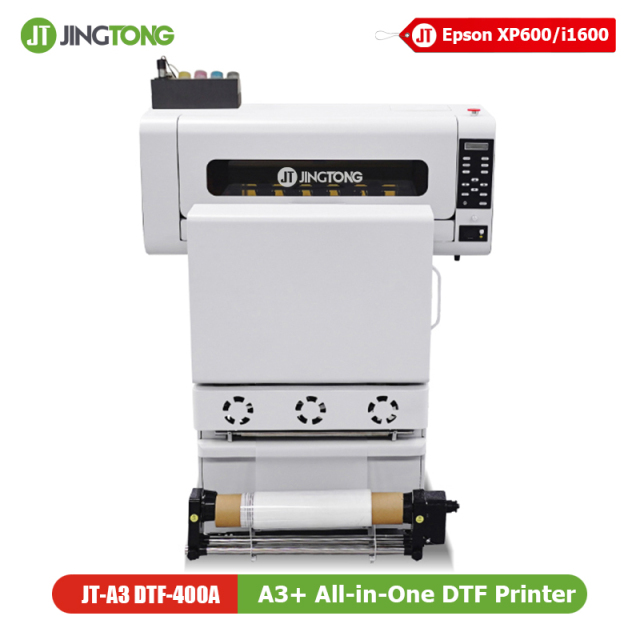

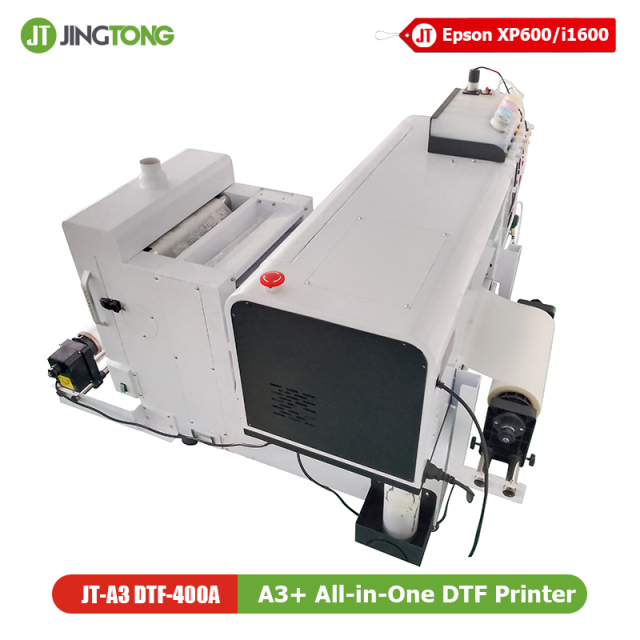

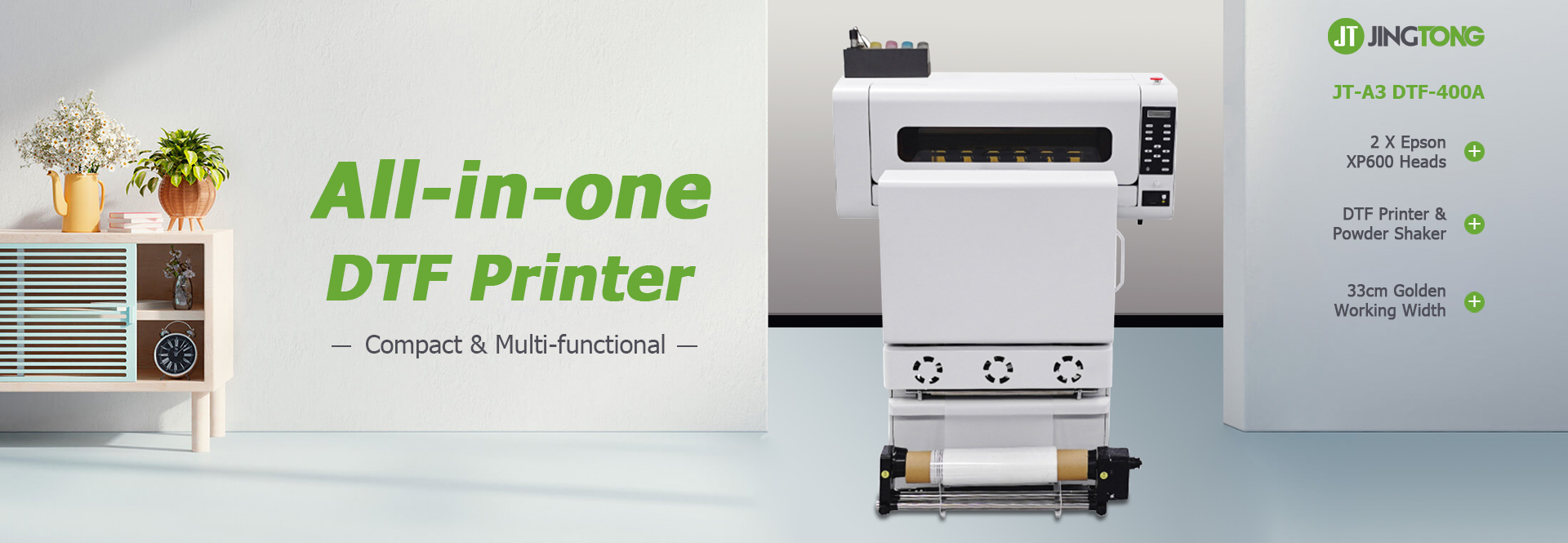

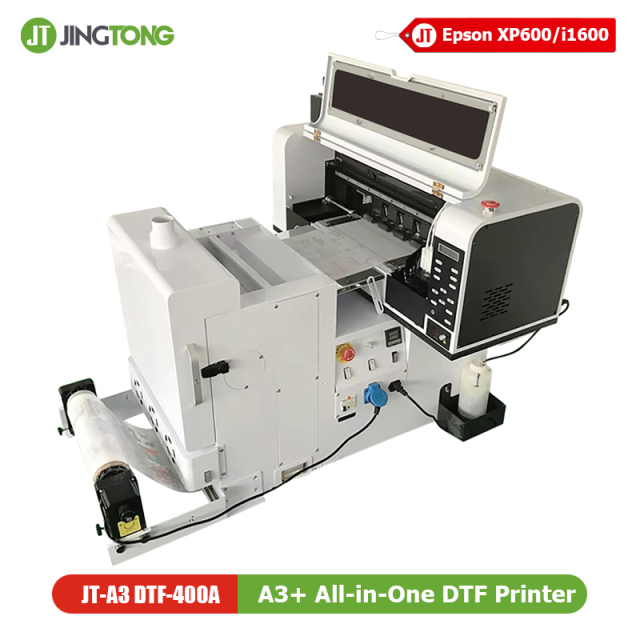

Jingtong A3 DTF-400A all-in-one DTF printer integrates DTF printing and TPU powder processing, creating a new digital DTF film printing process. Use the latest Epson I1600-A1 print head and the latest powder shaker technology. Provide a one-stop solution for garment printing. Epson’s unique variable size droplet technology (vsdt) smooth gradients with free control spray droplet volume.
The DTF powder shaker has lower energy consumption is more environmentally friendly and has a high efficiency of 3.5 kilowatts. Small footprint and complete functions are its advantages.Feature of JT-A3 DTF-400A All-in-One DTF Printer
 |
 |
 |
 |

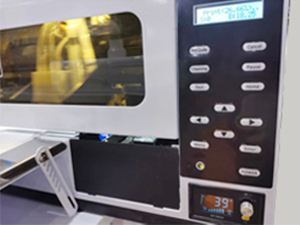

| Control Panel |
CMYK+W Ink System |

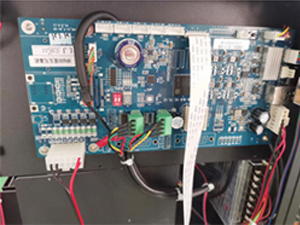

HOSON Main Board |

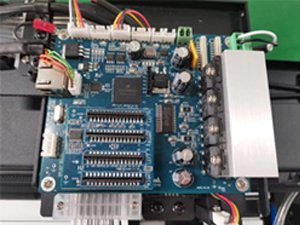

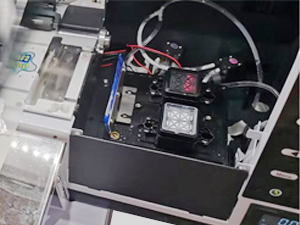

HOSON Head Board |
 |
 |
 |
 |
| Dual XP600/i1600 Head |
300mm Print Width |

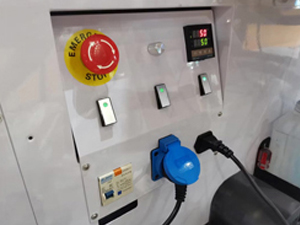

Shaker Controller |

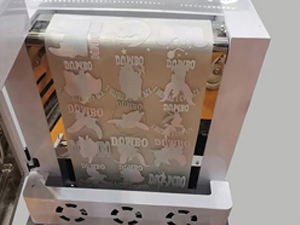

Vertical Heating Area |
The JT-A3 DTF-400A delivers high image quality, reliability and productivity in a highly intuitive design, providing advanced features for the apparel printing industry, including:
- Higher accuracy printing - The new design and optimization of details will make the product quality from printing.

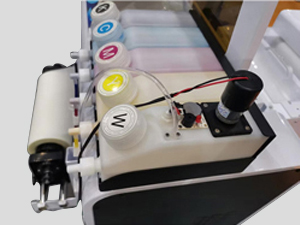

- White Ink Circulation & Filtration System - White ink circulation system adds filters to avoid white ink clogging. allows the required pigment dyes to pass through and remain in the ink.

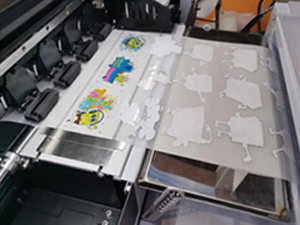

- Suction Conveying System - Vacuum adsorption conveying platform, absorbing the print material to ensure that the material does not bulge or run off.
- Save Your Time - Use Jingtong Industry dtf printing machine you don't need take time to look for another shaker
About the JT-A3 DTF-400A All-inOne DTF Printer1. Adopt dual Epson XP600 printhead(Option in Epson i1600 Head), to print CMYK and white ink.2. Use the hoson board for work.3. Printer with Original Maintop 6.1 software.4. Printer with white ink mixing and circulation system, effectively ensure no precipitation, smooth printing and no clogging.5. Powder shaker with 3pcs heating tube.6. dtf printer and powder shaker all in one, easy to operate.Machine Parameter
| Model |
JT-A3 DTF-400A |
| Print Head |
F1080(XP600)*2 / Epson I1600-A1*2 |
| Precision / Print speed |
XP600: 4pass: 6m²/hour; 6pass: 4m²/hour |
| i1600: 4pass: 10m²/hour; 6pass: 6.5m²/hour |
| Ink |
Pigment Ink (C M Y K+W) |
| Maximum Width |
300mm |
| Print Media |
PP Synthetic Paper \ PET Film \ DTF Paper |
| Print Interface |
Gigabit interface |
| RIP Software |
Maintop6.1 / Photoprint / Print Factory |
| Power |
AC110V / AC220V / 50/60HZ |
| Operating Environments |
Temperature: 20ºC-35ºC, Humidity: 35%RH-65%RH |
| Dimensions of Printer (L x W x H) |
1150(L) x 1030(W) x 1120(H) mm |
| Net Weight |
125KG |
| DTF Powder Shaker and Dryer |
| Operation Mode: |
PLC Touch Screen |
| Oven Temp.: |
Adjustable |
| Voltage: |
110v/220v, 3phase, 60Hz |
| Power: |
2kw |
| Shaking Width |
Max 330mm |

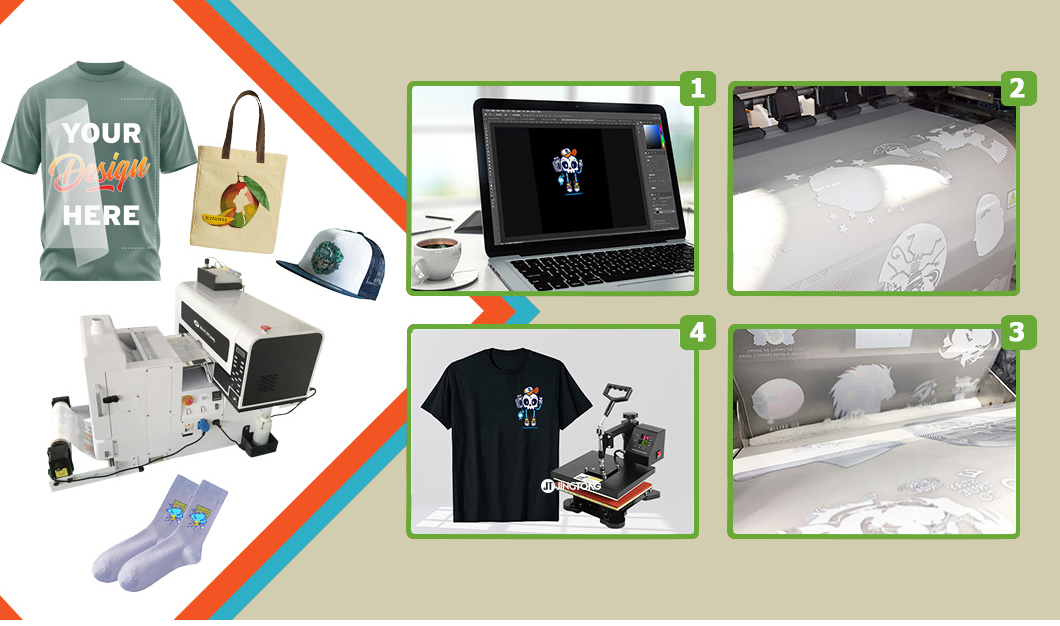

Color Channel for Design Spot
Create spot color channels using a variety of design applications.
Drawing Software RIP
Utilize RIP software; spot color and color are RIP out.
Drying While Printing And Powdering
DTF Fluorescent printing, dusting, drying, and automatic winding are all integrated processing steps.
Pressing of Garments
The printed PET film will either be manually or mechanically cut, hot pressed, and torn before being considered complete. |
 |
FAQ
1. What does “All-in-One DTF Printer” mean?
An All-in-One DTF printer integrates DTF printing, powder shaking, powder drying, and curing into one compact machine. No external powder shaker or oven is required, making it ideal for small businesses, studios, and startups.
2. What materials can this A3 DTF printer print on?
DTF transfers printed by this machine can be applied to cotton, polyester, blends, denim, nylon, leather, canvas, and many other fabrics. It works well on both light and dark garments.
3. What is the maximum printing size?
The maximum printing width is A3 size (up to 300 × 420 mm / 11.8 × 16.5 inches), suitable for T-shirts, hoodies, tote bags, caps, and small batch custom apparel.
4. Does the machine include white ink printing?
Yes. The printer supports CMYK + White ink printing, ensuring vibrant colors and strong opacity on dark fabrics. White ink circulation and stirring functions help reduce ink sedimentation.
5. Is this DTF printer easy to set up and operate?
Yes. The machine is designed for plug-and-play installation with simple operation. Basic training or guidance is enough for beginners, making it suitable even for users with no prior DTF experience.
6. What kind of ink, film, and powder does it use?
• Ink: DTF pigment ink (CMYK + White)
• Film: PET DTF film (single-side or double-side)
• Powder: Hot-melt adhesive powder (fine or medium grade)
All materials are widely available in the market.
7. Is the powder shaking and drying system automatic?
Yes. The built-in system automatically performs powder application, powder recycling, drying, and curing, which improves efficiency and reduces manual labor and material waste.
8. What garments can I make with this machine?
You can produce:
• Custom T-shirts
• Hoodies & sweatshirts
• Sportswear
• Workwear
• Tote bags
• Small promotional apparel orders
It is ideal for on-demand printing and short-run production.
9. What maintenance is required?
Routine maintenance includes:
• Daily nozzle checks
• Regular white ink circulation
• Cleaning the capping station and printhead
• Keeping the powder system clean
Proper maintenance helps extend printhead life and ensure stable print quality.
10. Is this A3 All-in-One DTF printer suitable for small businesses?
Absolutely. Its compact size, low investment cost, and all-in-one design make it perfect for startups, home businesses, print shops, and test production before scaling up.
11. What power supply does the machine support?
The printer typically supports 110V / 220V, compatible with most countries. Please confirm the exact power requirement before ordering.
12. Can this machine be shipped worldwide?
Yes. The machine can be shipped by sea, air, or express, with export-standard packaging. Technical support and operation guidance are available after shipment.
