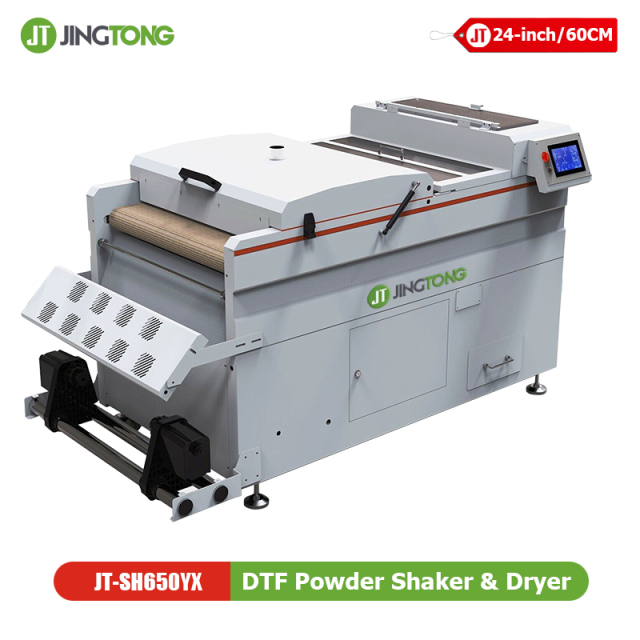

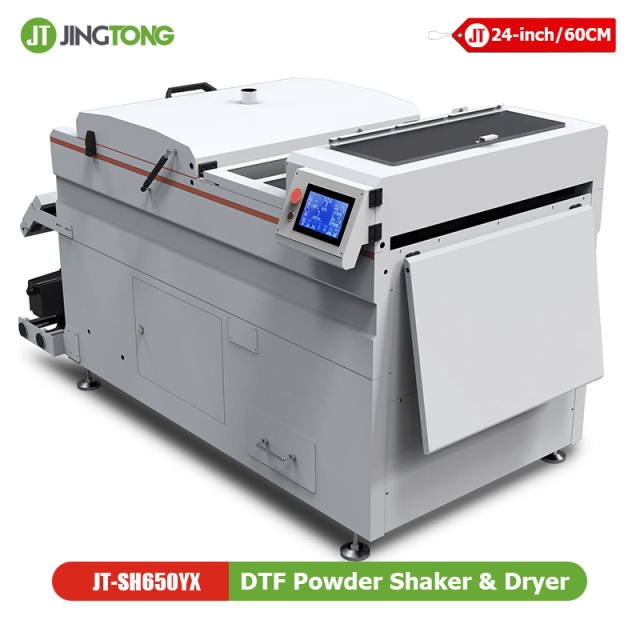

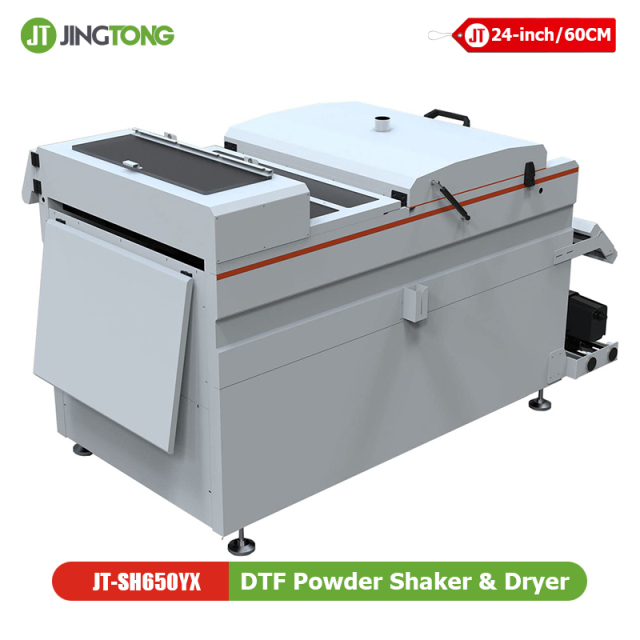

Name: 24 Inch Automatic DTF Powder Shaker & Dryer Machine with Touchscreen | High-Speed Film Curing System
Brand: Xiamen Jingtong Industry Co., Ltd
SKU: JT-SH650YX
Availability: InStock
Rating: 5 (1 reviews)

Description

The JINGTOG 24-Inch Automatic DTF Powder Shaker and Dryer is engineered to streamline your entire DTF production line—powdering, shaking, melting, and curing. Built for medium to high-volume printing environments, it offers smoother film feeding, stable heating, and cleaner powder handling. The integrated vacuum absorption platform keeps the PET film flat and stable during the curing process, while the intelligent touchscreen provides simple, centralized control over temperature, speed, vibration, and powder volume.

Ideal for print shops, customization studios, and DTF manufacturers seeking efficiency, durability, and consistent output.

Feature of 24-inch DTF Powder Shaker

Automated Powdering & Curing - The machine handles powder spreading, shaking, and even melting automatically—greatly reducing labor and eliminating production inconsistencies.
24-Inch Wide Format for High Output - Supports large-format DTF printers, allowing continuous printing and fast turnaround for apparel businesses.
Vacuum Absorption Film Platform - Keeps PET film stable and wrinkle-free during curing, improving adhesion and overall print quality.
Intelligent Touchscreen Control - Adjust heating, conveyor speed, powder volume, vibration strength, and more—all from an easy-to-use control panel.
Uniform Powder Application - Advanced oscillation ensures smooth, even powder distribution for sharper, more durable transfers.
High-Performance Heating System - Achieve fast and consistent powder melting with stable, energy-efficient temperature control.
Durable Industrial Build - Made for long work cycles, continuous printing environments, and demanding production schedules.
Cleaner Working Environment - Optimized powder return system reduces waste and keeps the workspace cleaner.

Machine Parameter

Maximum Shake Powder Width	600mm (23.6inches)
Functions	Shake powder control, dusting control, PID setting of curing temperature
Heating Element	4pcs Quartz infrared heat drying tube
Rewinding Function	Automatic induction rewinding
Heating and Drying Mode	Front guide plate heating, upper drying curing
Cooling Mode	9 fun air cooling (2 raw)
Machine Size	76.9in x 39.5in x 43in (1953mm x 1002mm x 1092mm)
Power Shaker and Dryer Weight	528lbs (240kg)
Packaging Size	70.5in x 44.1in x 44.5in (1790mm x 1120mm x 1136mm)
Gross Weight	638lbs (290kg)
Powder spreading structure	The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
Powder shaking device	The motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.
Requirements
Working Power Supply	AC220V/110V, 50hz / 60hz, 1 phase.
Current	23A/45.5A, 5000W
With JINGTONG DTF film, power and Inks, you can easily and quickly create custom t-shirts and apparel.
Remarks
JINGTONG DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.

Application Areas
1. Garment Printing Factories
Ideal for mass production of T-shirts, hoodies, sportswear, and uniforms using DTF transfer films.
2. Custom Apparel Shops
Perfect for small-batch or on-demand printing with consistent quality.
3. Fashion and Design Studios
Allows creation of vivid, neon-color designs using DTF fluorescent inks with reliable curing.
4. Promotional Product Manufacturers
Produces durable, bright prints for bags, caps, and other customized giveaways.
5. Print-on-Demand Businesses
Reduces labor and speeds up delivery by automating powder application and film drying.

FAQ (Frequently Asked Questions)
Q1: What printer sizes is this machine compatible with?
This 24-inch DTF powder shaker and dryer works with most 24-inch (600mm) DTF printers on the market.

Q2: Does it operate automatically once connected to the printer?
Yes. After setting your parameters, the machine automatically powders, shakes, melts, and cures the printed film.

Q3: What type of DTF powder can I use?
It is compatible with standard TPU DTF adhesive powder (white or black), suitable for cotton, polyester, blends, and more.

Q4: Does the machine have a safety system?
Yes. It includes temperature protection, emergency stop, and stable power control for safe long-term operation.

Q5: How difficult is it to maintain?
Maintenance is simple—regular cleaning of the powder tank, conveyor, and heating vents will keep the system running smoothly.

Q6: Will it improve production speed?
Absolutely. By automating powdering and curing, it reduces manual labor and shortens production time significantly.
