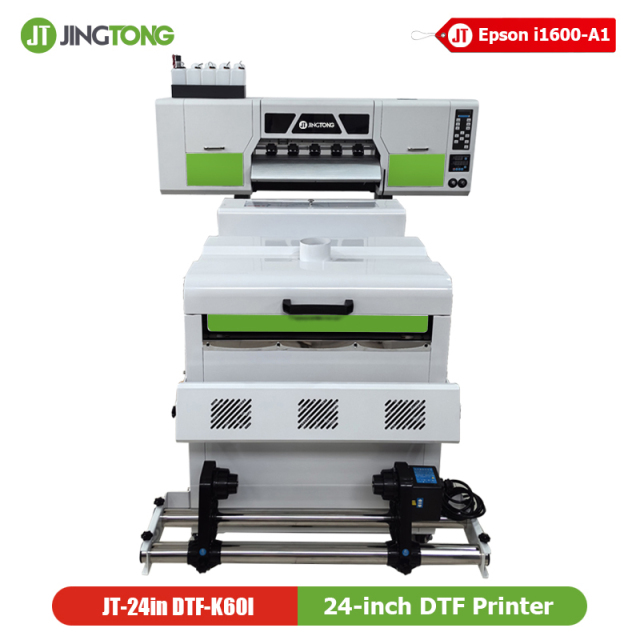

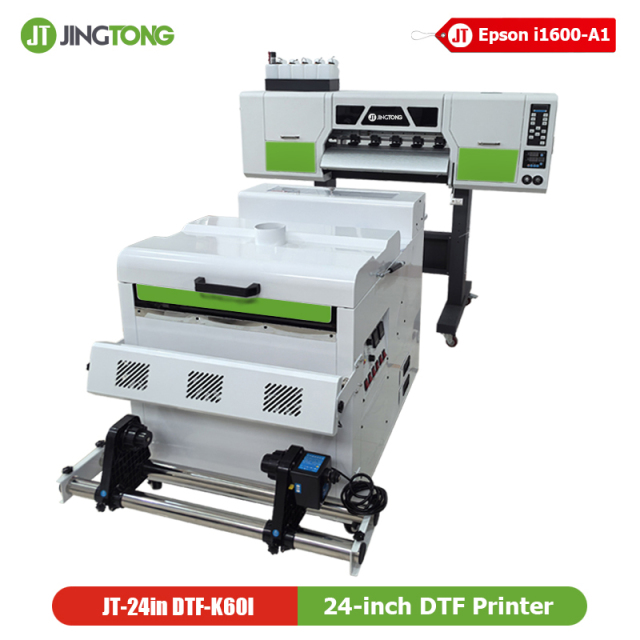

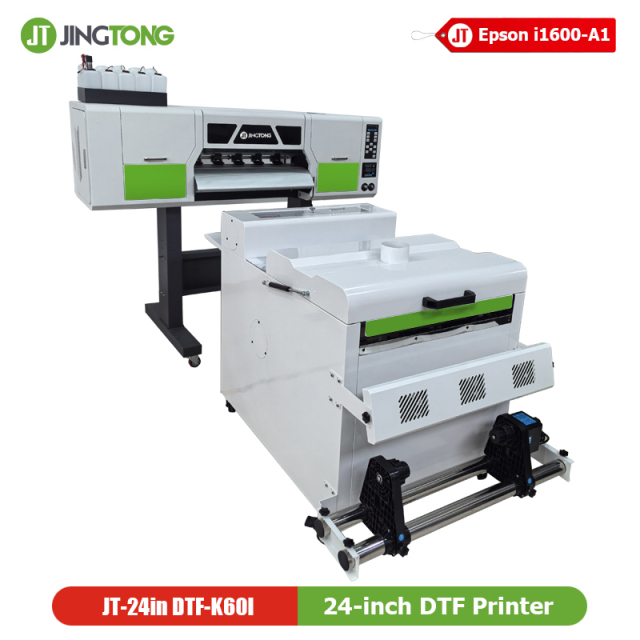

Name: 24 Inch DTF Printer with Dual Epson i1600-A1 Printheads
Brand: Xiamen Jingtong Industry Co., Ltd
SKU: JT-24in DTF-K60I
Availability: InStock
Rating: 5 (1 reviews)

Description

JT-24in DTF-K60I is a professional 24-inch DTF printer equipped with dual Epson i1600-A1 printheads, offering an excellent balance between printing speed, output quality, and operating cost. It is ideal for professional studios and growing print businesses that require reliable daily production without industrial-level investment.

Best For
• Small to medium print shops
• Growing apparel brands
• Businesses upgrading from single-head systems

Business Value
• Strong price-performance ratio
• Suitable for stable daily production
• Easy upgrade path for future expansion

Key Selling Points of JT-24in DTF-K60I Printer
• Dual Epson i1600-A1 Printheads: Stable performance with high precision and consistent ink firing
• Balanced Speed & Quality: Optimized for medium to high daily output
• 24-Inch Printing Width: Improves workflow efficiency and reduces film waste
• Reliable White Ink Management: Designed for long printing sessions with reduced maintenance
• Cost-Effective Professional Solution: Ideal upgrade from entry-level DTF printers

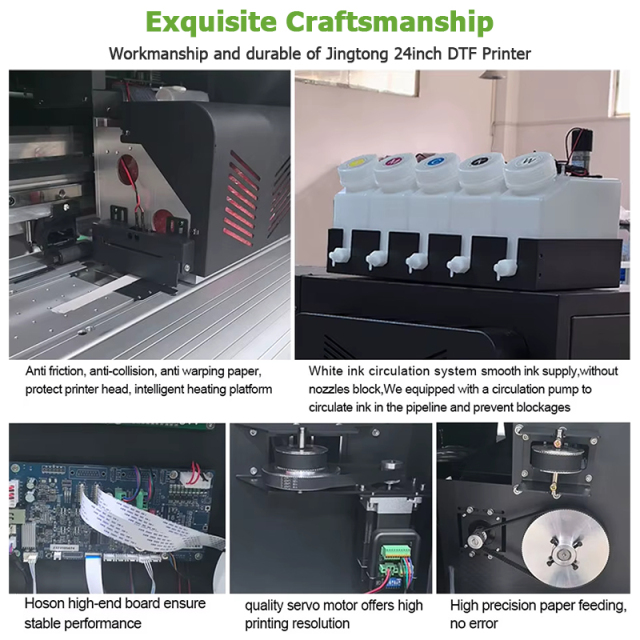

Features


Ink shortage alarm	White ink circulation	Printhead anti-crash device
It uses sensors to determine the ink level accurately. Designed to monitor ink levels and notify the clients when the ink is running low.	Prevent the white pigment particles from settling and to prevent the heads clogging.	Protection of the printhead from damage caused by collisions. By preventing accidental contact with the substrate, the anti-crash device ensures that print quality remains high and consistent.

Hosan board	Taiwan Hiwin guide rails	Powder shaker with oven
Reducing the chances of print errors and ensuring smooth operation.	Ensures smooth and stable movement. enhancing durability and performance.	Powder shaker helps achieve strong adhesion between the ink and the film.

Machine Parameter

Model	JT-24in DTF-K60I
Print head	Epson I1600-A1
Number of nozzles	Epson I1600*2 pcs
Printing Speed	8-10 m2/h
Ink	Type: Water pigment ink Capacity: 5 Colors: 1.5L*5/color Continuous supply system Colour: CMYK+W
Media type	DTF PET Film
Dimensions(mm)	16557501550mm
Transmission interface	USB 2.0
Printer head cleaning	Automatic spray cleaning
Operating system	Win 10, Win 11
Interface	Gigabit network port
Print width	600mm
Power	Printer: 2000W Dryer: 450w
Temperature	Temeperature: 15-32C
Humidity	Humidity: 35-65%
Rip software	Maintop 6.1, PP, RIIN
Printing height	1.5-6mm
Print resolution	4 pass: 7201200; 6pass: 7201800; 8 pass: 720*2400dpi
image format	TIFF JPG EPS PDF
Weight	138 kg
Heating System	Powder shaking machine built-in infrared drying
Reeling function	Automatic sensing system
Powder shaker package size/weight	12809301180mm/150KG

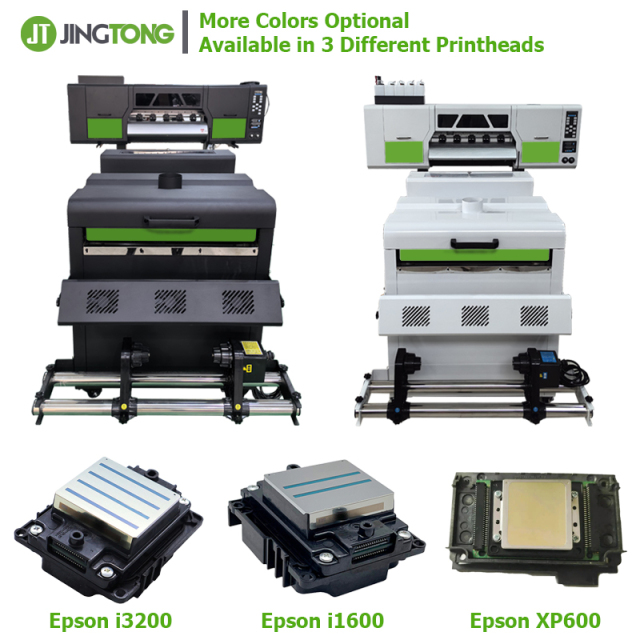

Printhead Configuration Comparison

Model	Printhead	Speed Level	Target User
JT-24in DTF-K60P	Dual i3200-A1	★★★★★	Industrial / High-volume
JT-24in DTF-K60I	Dual i1600-A1	★★★★☆	Professional Studio
JT-24in DTF-K60X	Dual XP600	★★★☆☆	Entry / Growing Business

PrecisionCore Technology
Precision made of Epson unique MEMS nozzles and an ink flow path ensure theperfectly round ink droplets are placed accurately and consistently.

I1600
Ink ejection of up to 4 colours realize with high resolution (600 dpi/colour). In addition to the I3200, I1600 has also been added to the lineup in order to meet the various customer needs.

I3200
PrecisionCore print head has proven high durability and extended service life by Epson’s industrial printers.

XP600
Epson DX11 printhead is used by various Epson printers including the XP-600 series. This is the original Epson head (part number F1080-A1 / FA09121 / FA09xxx).

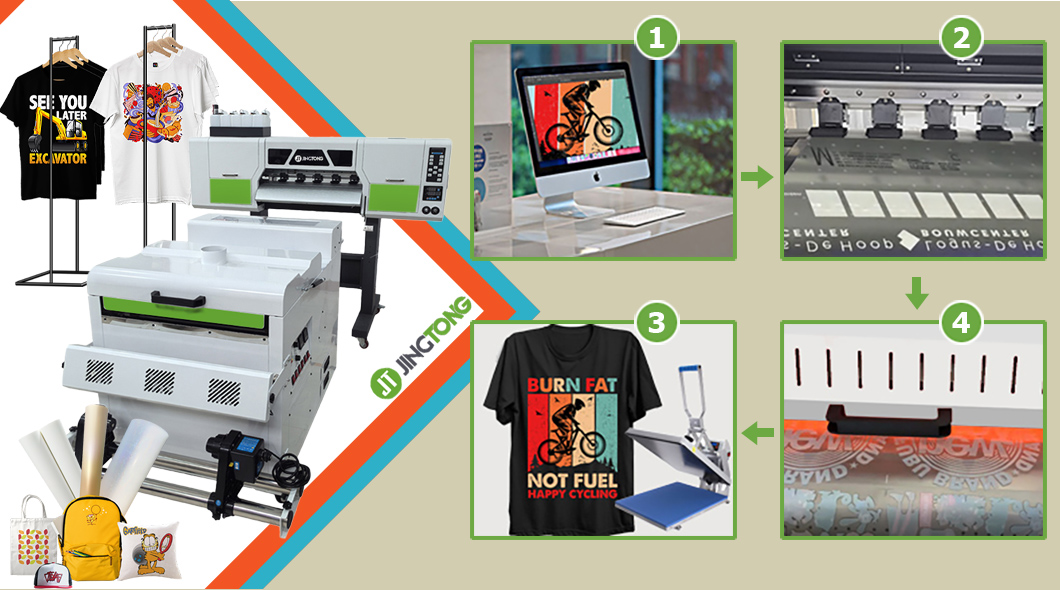

JINGTONG T Shirt (DTF) Printing Process

Color Channel for Design Spot
Create spot color channels using a variety of design applications.

Drawing Software RIP
Utilize RIP software; spot color and color are RIP out.

Drying While Printing And Powdering
DTF Fluorescent printing, dusting, drying, and automatic winding are all integrated processing steps.

Pressing of Garments
The printed PET film will either be manually or mechanically cut, hot pressed, and torn before being considered complete.

Applications
This Jingtong Dual i1600 60cm DTF Printer can customize all kinds of clothing, unlimited colors, and unlimited fabrics, suitable for many types of groups for batch customization or personalization. For example, a couple of clothing, school bags, fresh canvas shoes, and so on. Support customization with pictures or store design options, good printing effect, washable, stretchable, comfortable, and soft.

FAQ
1. What is the main difference between the i1600 and i3200 printhead versions?
The main difference lies in printing speed and production capacity. The dual Epson i1600-A1 version offers an excellent balance of speed, print quality, and cost, making it ideal for professional studios and growing businesses, while the i3200 version is designed for higher-volume industrial production.

2. Is the print quality of the i1600 version comparable to the i3200 version?
Yes. The Epson i1600-A1 printhead delivers high-resolution output with smooth color gradients and solid white ink coverage. For most commercial DTF applications, the print quality is very close to that of the i3200 version.

3. What type of businesses is this i1600 DTF printer suitable for?
This model is ideal for:
• Professional DTF studios
• Small to medium-sized print shops
• Businesses handling daily commercial orders
• Users upgrading from entry-level DTF printers

4. Can this printer handle white ink printing reliably?
Yes. The printer is equipped with a white ink circulation and stirring system to reduce pigment sedimentation, ensuring stable and consistent white ink output during continuous printing.

5. What materials can be printed with this DTF printer?
This printer is designed for DTF film printing and can be used to transfer designs onto cotton, polyester, blends, denim, nylon, leather, and other common textile materials after heat pressing.

6. Is the printer difficult to operate for new users?
No. The dual i1600 DTF printer features user-friendly software and a straightforward operating workflow. Basic training is sufficient for new users to start production quickly.

7. What RIP software is supported?
The printer supports mainstream RIP software such as Maintop and Photoprint. Other RIP options may be available upon request, depending on customer requirements.

8. What is the recommended production workload for this model?
The dual i1600-A1 version is suitable for medium-volume production and daily operation, making it a reliable solution for businesses that need consistent output without the cost of a full industrial system.

9. Does the machine support long continuous printing?
Yes. This model is designed for stable, long-hour printing with proper maintenance and correct ink usage, making it suitable for commercial production environments.

10. What maintenance is required for the i1600 printheads?
Routine maintenance includes daily nozzle checks, regular cleaning, and keeping the printer in a stable temperature and humidity environment. Compared to entry-level printheads, i1600 heads offer improved stability and longer service life.

11. Can this printer be upgraded later to an i3200 printhead?
The printer platform is the same, but upgrading printheads requires technical evaluation and is not a simple plug-and-play process. Customers are advised to choose the appropriate printhead configuration based on their current production needs.

12. What kind of technical support do you provide?
We provide installation guidance, operation training, troubleshooting support, and long-term technical assistance via video, manuals, and online communication.

13. Is this printer suitable for international shipping and installation?
Yes. The machine is securely packed for international shipping and includes detailed installation instructions. Remote setup support is available if needed.

14. What optional equipment is recommended with this printer?
For higher efficiency, we recommend pairing the printer with a powder shaker and curing oven system, as well as using high-quality DTF inks and films for optimal results.

15. How do I choose between XP600, i1600, and i3200 versions?
• XP600: Entry-level, suitable for startups and small orders
• i1600: Best balance of speed, quality, and cost for growing businesses
• i3200: High-speed solution for factories and large-volume production
