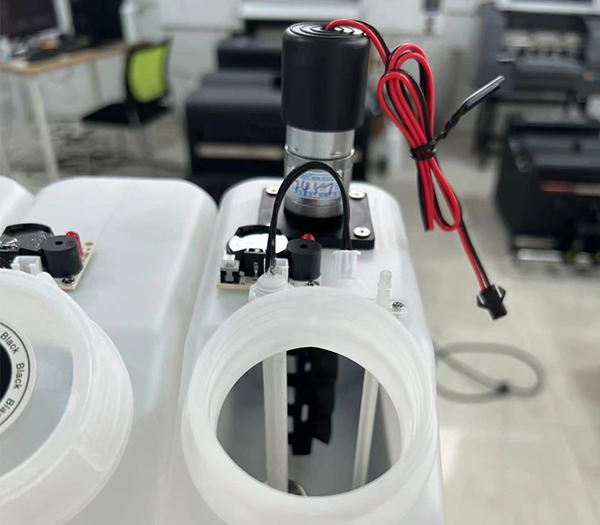

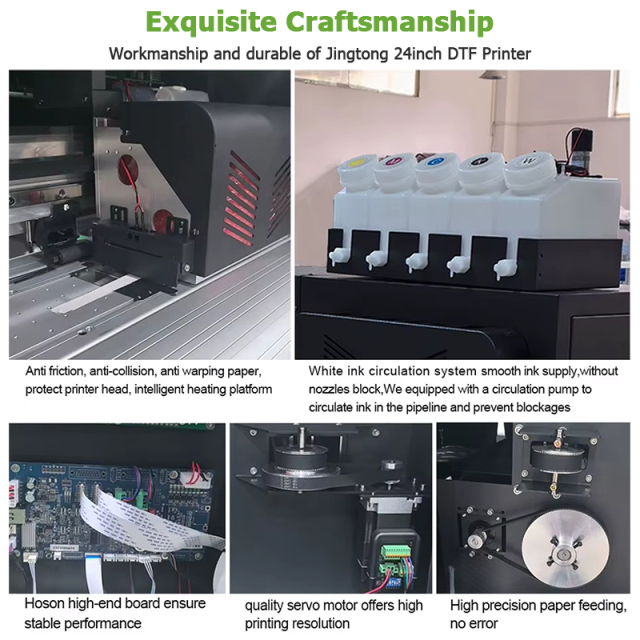

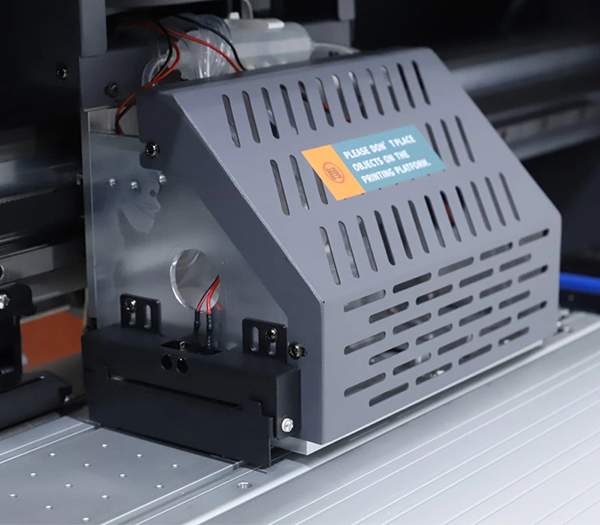

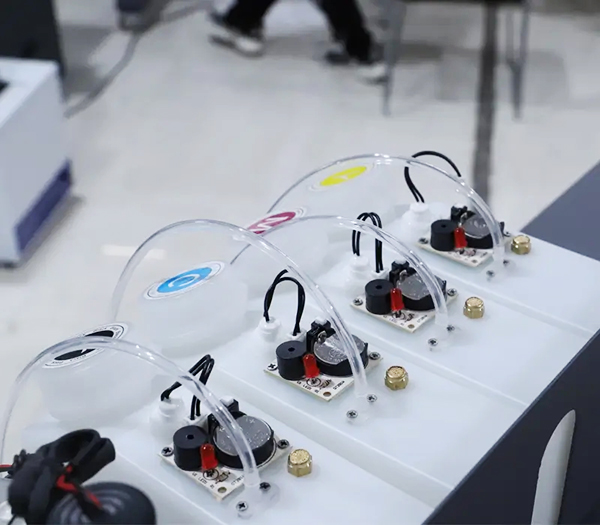

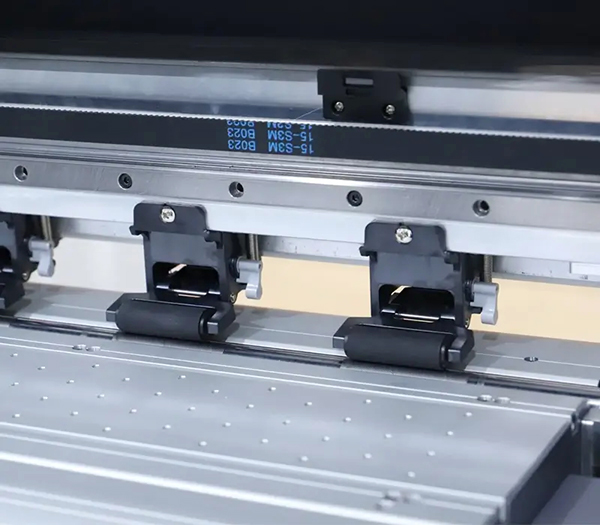

| Ink shortage alarm | White ink circulation | Printhead anti-crash device |
| It uses sensors to determine the ink level accurately. Designed to monitor ink levels and notify the clients when the ink is running low. | Prevent the white pigment particles from settling and to prevent the heads clogging. | Protection of the printhead from damage caused by collisions. By preventing accidental contact with the substrate, the anti-crash device ensures that print quality remains high and consistent. |
 |
 |
 |

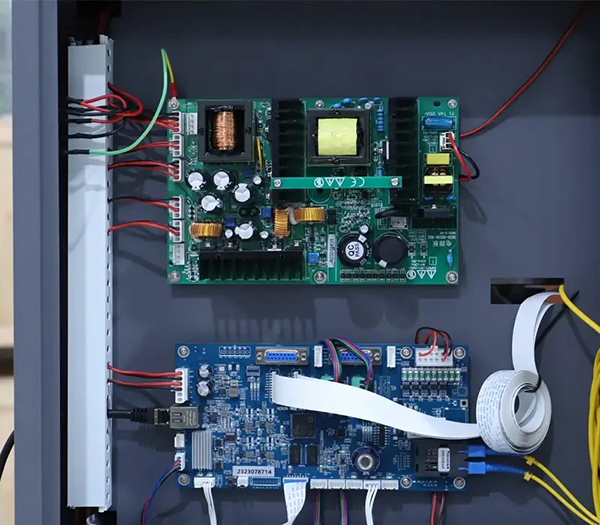

| Hosan board | Taiwan Hiwin guide rails | Powder shaker with oven |
| Reducing the chances of print errors and ensuring smooth operation. | Ensures smooth and stable movement. enhancing durability and performance. | Powder shaker helps achieve strong adhesion between the ink and the film. |

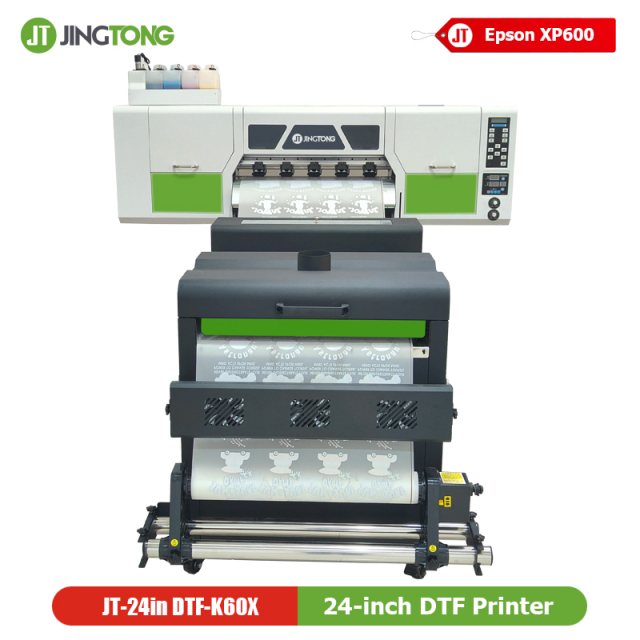

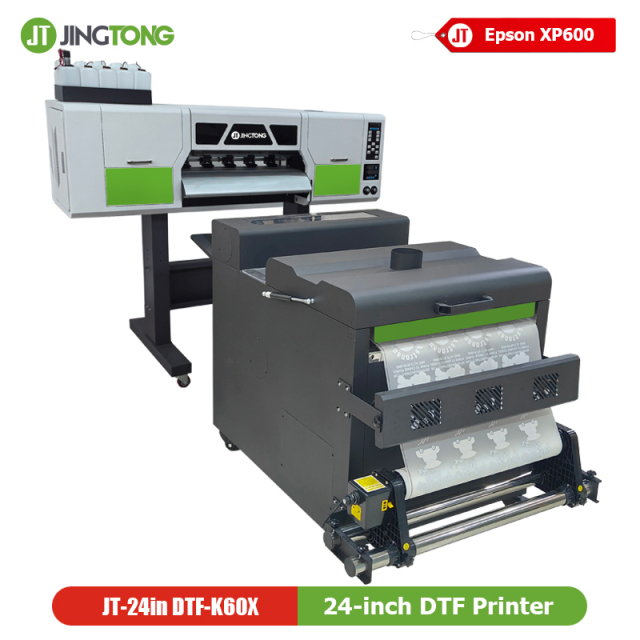

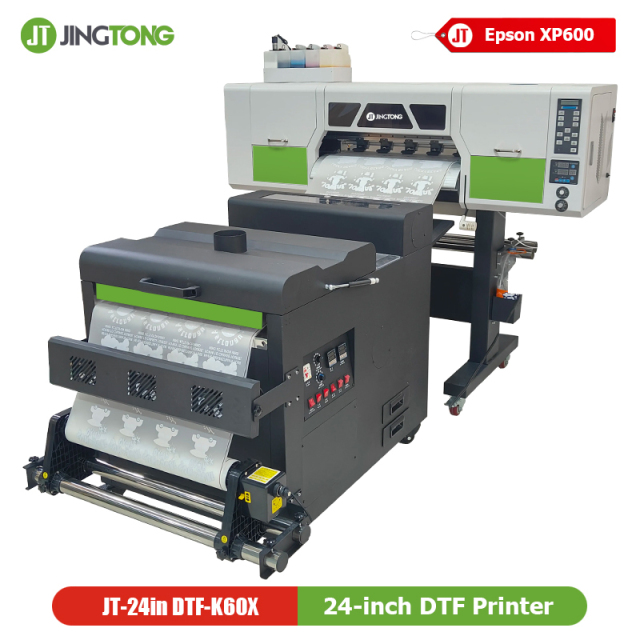

| Model | JT-24in DTF-K60X |
| Print head | Epson XP600 |
| Number of nozzles | Epson XP600*2 pcs |
| Printing Speed | 6-8 m2/h |
| Ink | Type: Water pigment ink
Capacity: 5 Colors: 1.5L*5/color Continuous supply system Colour: CMYK+W |
| Media type | DTF PET Film |
| Dimensions(mm) | 1655*750*1550mm |
| Transmission interface | USB 2.0 |
| Printer head cleaning | Automatic spray cleaning |
| Operating system | Win 10, Win 11 |
| Interface | Gigabit network port |
| Print width | 600mm |
| Power | Printer: 2000W Dryer: 450w |
| Temperature | Temeperature: 15-32C |
| Humidity | Humidity: 35-65% |
| Rip software | Maintop 6.1, PP, RIIN |
| Printing height | 1.5-6mm |
| Print resolution | 4 pass: 720*1200; 6pass: 720*1800; 8 pass: 720*2400dpi |
| image format | TIFF JPG EPS PDF |
| Weight | 138 kg |

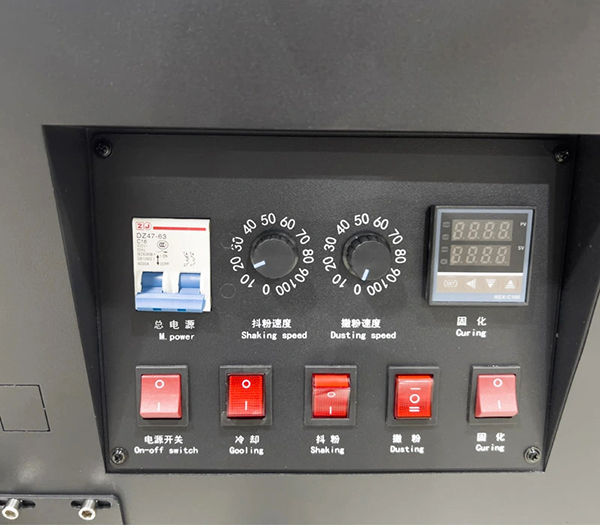

| Heating System | Powder shaking machine built-in infrared drying |
| Reeling function | Automatic sensing system |
| Powder shaker package size/weight | 1280*930*1180mm/150KG |

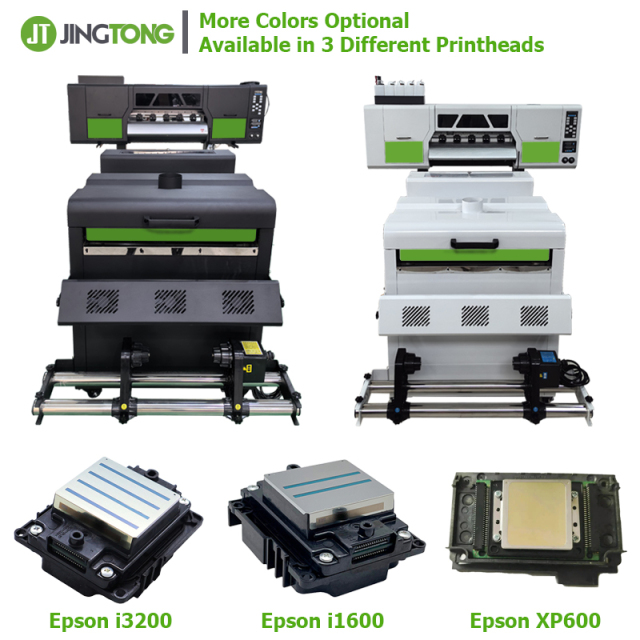

| Model | Printhead | Speed Level | Target User |
| JT-24in DTF-K60P | Dual i3200-A1 | ★★★★★ | Industrial / High-volume |
| JT-24in DTF-K60I | Dual i1600-A1 | ★★★★☆ | Professional Studio |
| JT-24in DTF-K60X | Dual XP600 | ★★★☆☆ | Entry / Growing Business |
 |

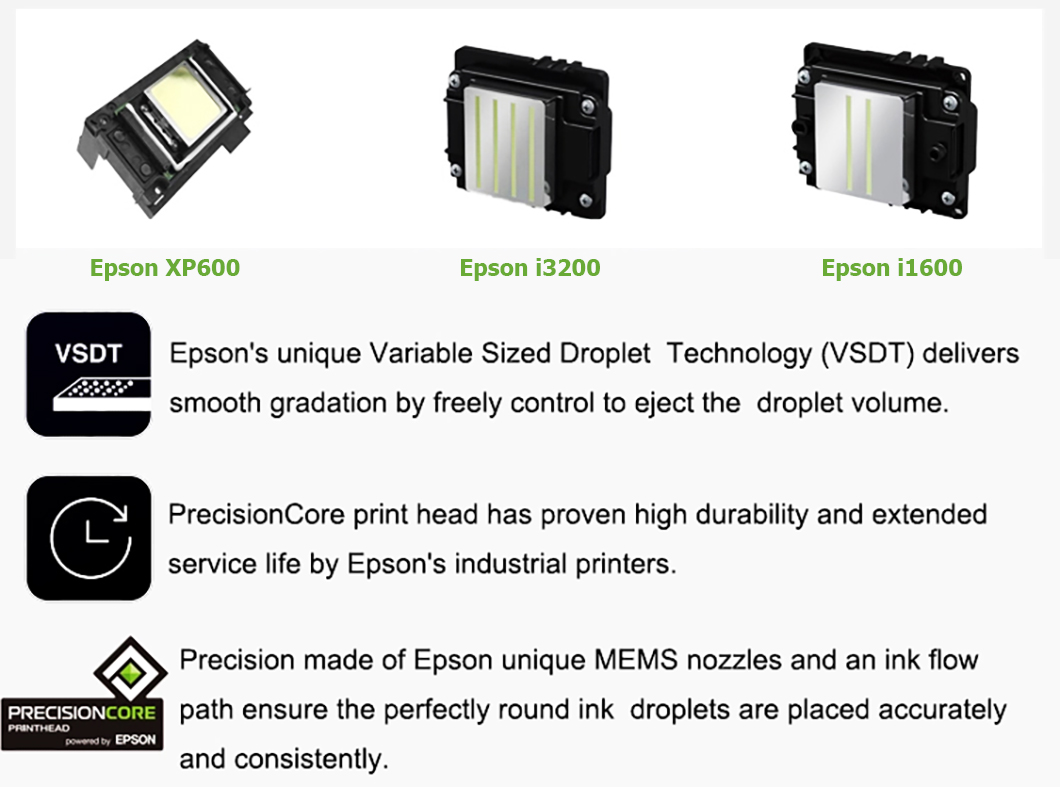

PrecisionCore Technology Precision made of Epson unique MEMS nozzles and an ink flow path ensure theperfectly round ink droplets are placed accurately and consistently. I1600 Ink ejection of up to 4 colours realize with high resolution (600 dpi/colour). In addition to the I3200, I1600 has also been added to the lineup in order to meet the various customer needs. I3200 PrecisionCore print head has proven high durability and extended service life by Epson’s industrial printers. XP600 Epson DX11 printhead is used by various Epson printers including the XP-600 series. This is the original Epson head (part number F1080-A1 / FA09121 / FA09xxx). |

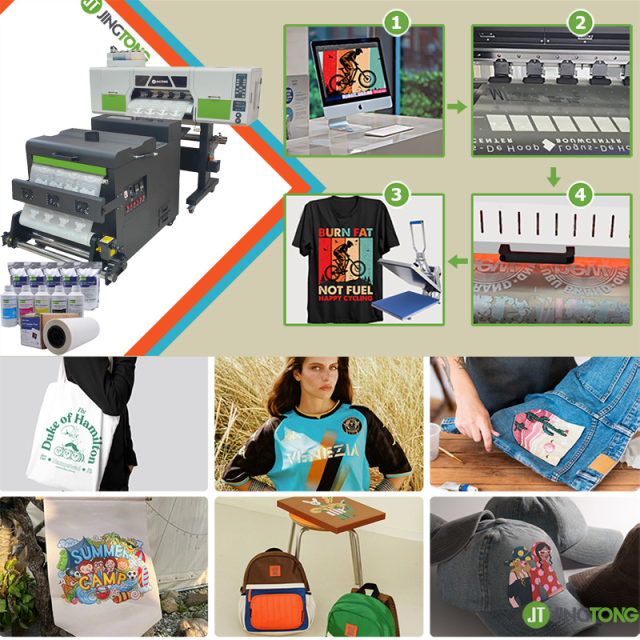

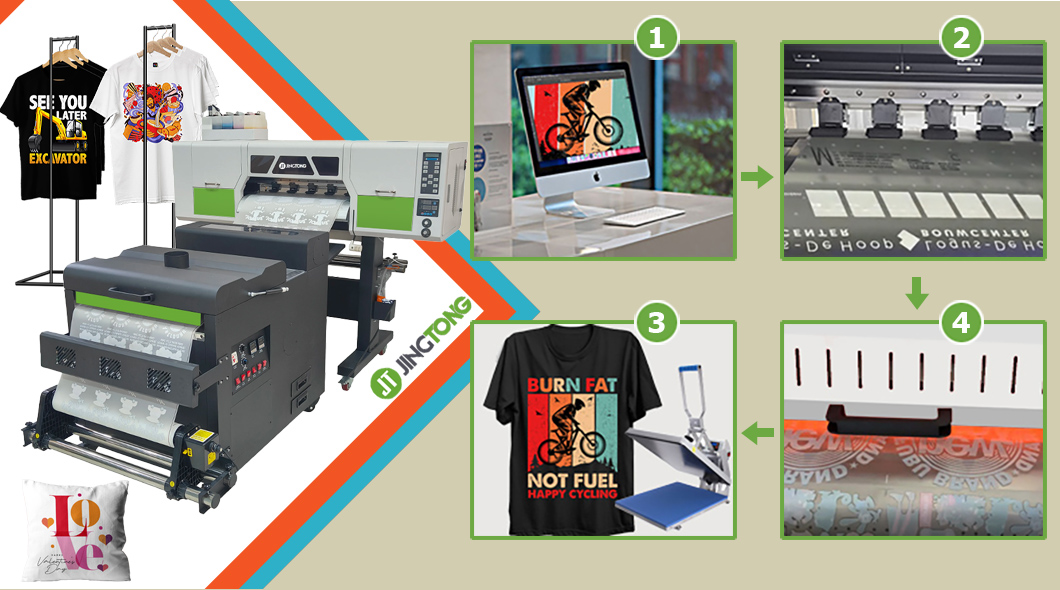

| Color Channel for Design Spot Create spot color channels using a variety of design applications. Drawing Software RIP Utilize RIP software; spot color and color are RIP out. Drying While Printing And Powdering DTF Fluorescent printing, dusting, drying, and automatic winding are all integrated processing steps. Pressing of Garments The printed PET film will either be manually or mechanically cut, hot pressed, and torn before being considered complete. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
