Discover the power of our advanced DTF fluorescent printer, featuring four high-performance Epson I3200 printheads and a 24-inch wide format design. This direct to film fluorescent printer supports multiple fluorescent inks for ultra-bright, eye-catching colors. Ideal for apparel decoration, luminous signage, and creative textile printing, it offers outstanding precision, long-lasting wash resistance, and efficient large-scale production performance.Feature of 24-inch DTF Fluorescent Printer
- Designed for Fluorescent Inks – Specifically supports vibrant fluorescent colors such as neon orange, pink, green, and yellow, creating striking visual effects under natural or UV light.
- 24-Inch Large Format Printing – Enables wide printing coverage for bulk production and large-sized transfer designs.
- Four Epson I3200-A1 Printheads – Delivers exceptional accuracy, fine detail, and rich color gradients, ensuring professional-quality output for apparel printing and textile customization.
- Wide Material Compatibility – Prints beautifully on cotton, polyester, blends, and dark or light garments without pre-treatment.
- Durable and Wash-Resistant Prints – DTF fluorescent inks produce long-lasting, vivid transfers that remain bright even after multiple washes.
- High Productivity and Efficiency – Fast printing speed, stable performance, and low waste rate make it ideal for printing businesses, apparel factories, and customization shops.
 |
 |
 |
| Print Head Heating System |
Intelligent control panel |
Bulk Ink Supply System |
| By heating the ink damper and the carriage base, the DTF printer can work normally in a lower-temperature environment. In the printing process, ensure good fluidity of the DTF ink to improve the printing performance with great quality. |

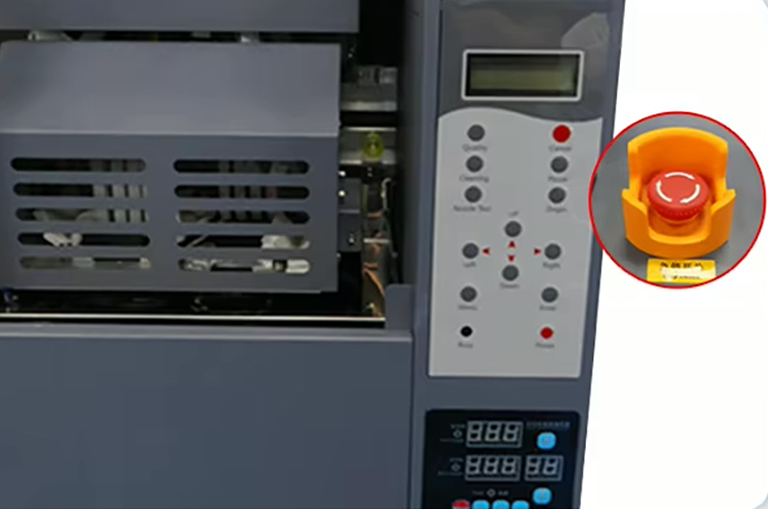

With paper sensing system, you can detect whether there is paper (to prevent printer blanks). Equipped with emergency switch, the fault can be stopped at will. Hansen board High prevision high speed stable network port board. High prevision nozzle printing, clearer image. |

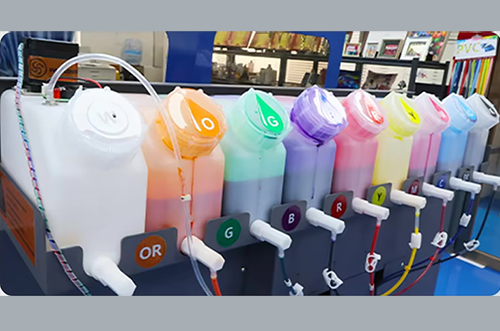

Equipped with a 1000ML large ink supply bottle, which can continuously supply ink to the ink cartridge. Customers can quickly change the ink capacity of the printer at any time to keep a non-stop production for such as T-shirt printing. |
 |
 |
 |

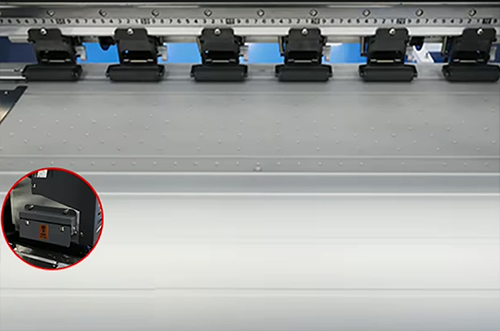

| Pinch Roller Adjustable |
Smart Control Panel |
Preheating Powder Bin |
| According to the printing material, the pressure of the pinch roller can be adjusted to ensure smooth paper feeding and high printing accuracy when printing. |

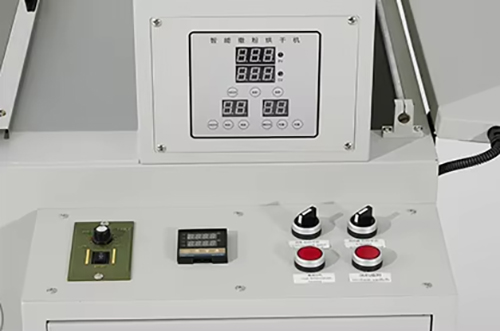

Machine operation panel, the operation through the panel control, switch power, can switch the language, adjust the wind and other functions. |

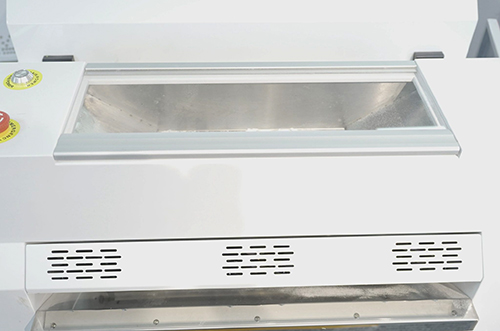

Pre-heating removes moisture from the powder so that the hot melt powder flows smoothly under low temperature or slightly humid conditions. White smooth coating for smoother powder feeding and prevention of powder accumulation. |
 |

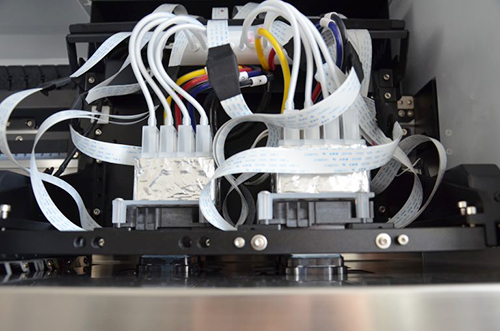

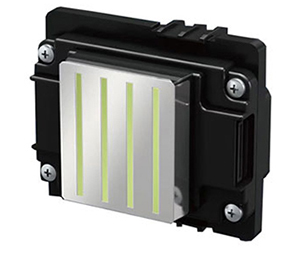

Epson I3200-A1 print heads are used in the JT-DTF-602 S Series DTF printer. The Epson I3200 head boasts 3200 nozzles, a 600 dpi resolution, higher jetting frequency than DX5 and XP600, better color saturation, faster printing, and more accurate printing, all for a low price. Very economical. |
| Model |
i3200-A1 |
| Ink Type |
Water based ink |
| Size(width x depth x height)(mm) |
69.1×59.4×35.6 |
| Weight (g) |
82 |
| Nozzle Numbers |
3200 |
| Length Between Nozzles(inch) |
1/300(in one row) |
| Nozzle Row |
8 row |
| Max color/head |
4 colors |
| Resolution |
300 npi/1 row 600 npi/2 rows |
| Effective Printing Width(mm) |
33.8 |
| Jet Freqency(kHz) |
43.2 (single dot), 21.6 (multi dot) |
| Ink Drops(pl) |
3.8-6-12(9.4) |
| Ink Viscosity(mPa.s) |
3~4 |
|

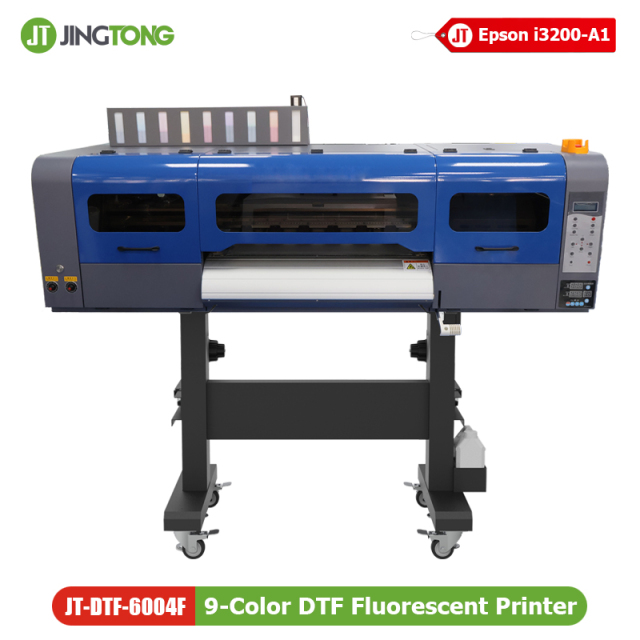

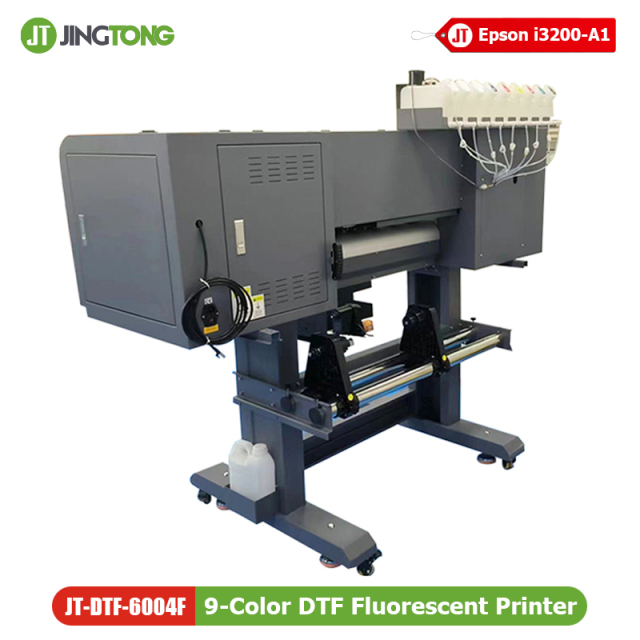

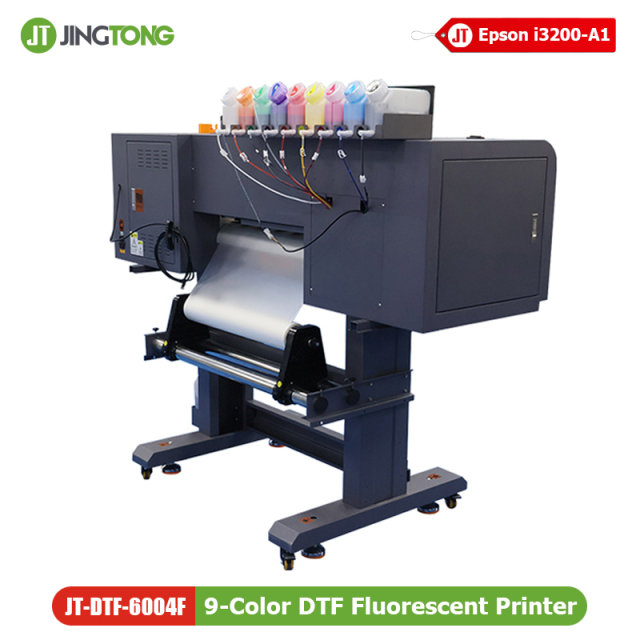

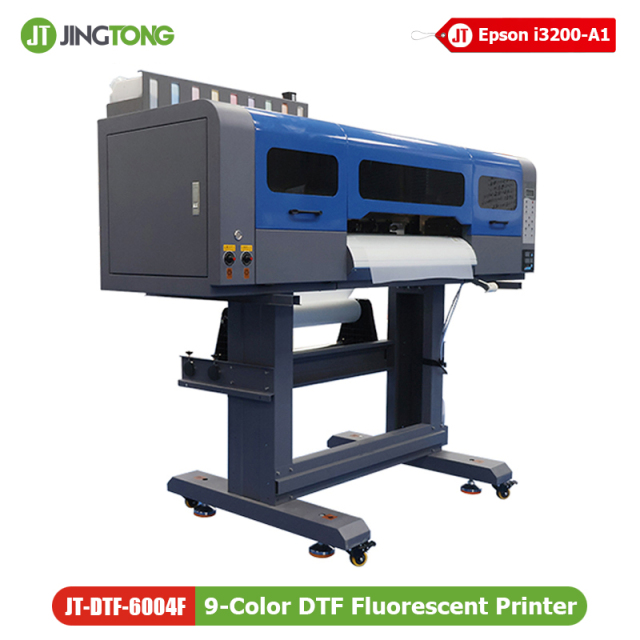

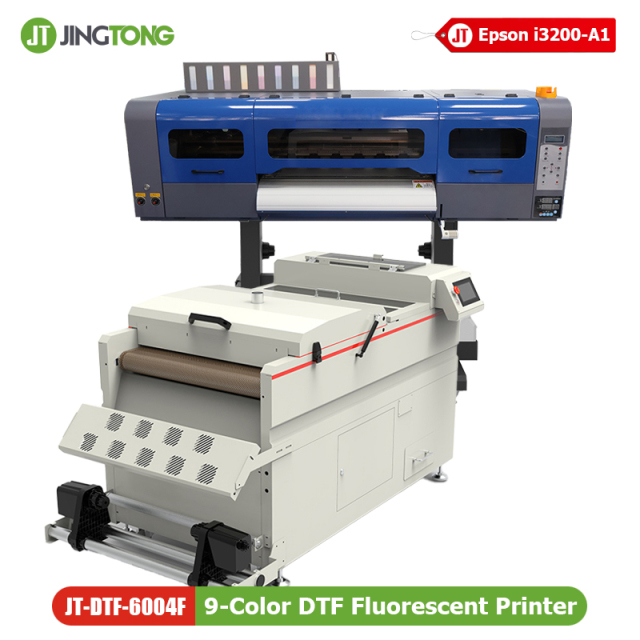

JT-DTF-6004F 24-Inch DTF Fluorescent Printer
|
| Brand |
Jingtong Industry |
| Product Model |
JT-DTF-6004F |
| Print Head |
Epson I3200 print head, including 400 nozzles/row*8*lines, high quality up to 2400dpi |
| Print Resolution/Speed |
4pass: 30m² /hour |
| 6pass: 25m²/hour |
| 8pass: 20m²/hour |
| Ink |
Types |
Water Based Ink |
| Capacity |
9 Colors: 1000ML*9/color |
| Media |
Maximum Width |
600mm |
| Thickness |
1.5mm to 6mm adjustable |
| Max Roll Weight |
20kg |
| Types |
PP Synthetic Paper, Vinyl Sheet, Film, Coated Paper, Canvas , Adhesive Vinyl Sheet, Banner and so on. |
| Media Heater |
Front/Mid/Rear Heaters (individually controllable) |
| Interface |
Network Port |
| RIP Software |
Maintop6.1, Photoprint, Print Factory |
| Voltage |
AC110V+/- 10%, AC220V+/-10%, 50/60+/HZ |
| Operating Environment |
Temperature: 20ºC- 35ºC, Humidity: 35%RH-65%RH |
| Power |
200w~450w |
| Dimensions |
187*72*88cm |
| Package size |
188*88*74cm |
| Net Weight |
215KG |
| Gross Weight |
245KG |

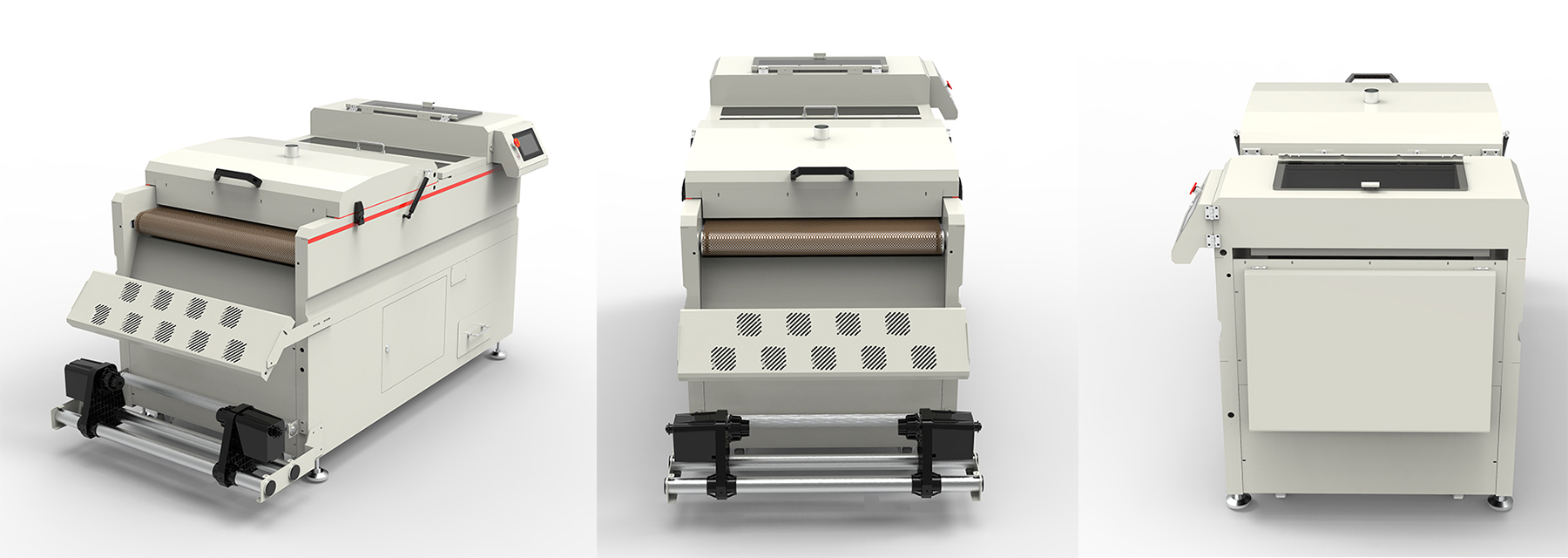

The SH650 dtf powder shaker adopts the high-end conveyor belt transmission mode, which is convenient for sample printing, can cut while printing, and has the function of anti-sticking. The drying oven is further lengthened to make this powder-shaking machine reach a new height.Parameter - JT-SH650 Powder Shaker
| Conveyor Belt DTF Powder Shaker |
| Model |
JT-SH650 |
Brand |
JINGTONG |
| Material |
DTF film |
Film size |
60CM |
| Preheating |
Large heating plate |
Plate TEMP |
Can be set |
| Electrostatic prevention |
Electrostatic brush |
Film transmit |
Conveyor belt |
| Media correction |
Front and rear film positioning correction |
Film take-up system |
Double motors Auto-induction |
| Powder amount |
Can be set |
Shake speed |
Can be set |
| Powder Control |
Auto-special control structure |
Shaking cover |
Acrylic metal frame cover |
| Dryer |
Further lengthened drying |
Control panel |
Touch screen |
| Voltage |
110V or 220V |
Rated Power |
5.6KW |
| Rated current |
24A |
Energy usage |
3.4KW-5.6KW |
| Packing |
1931*1121*1137mm |
G.W |
292KG |
| Warranty |
13Month |
Technical support |
Free for life |

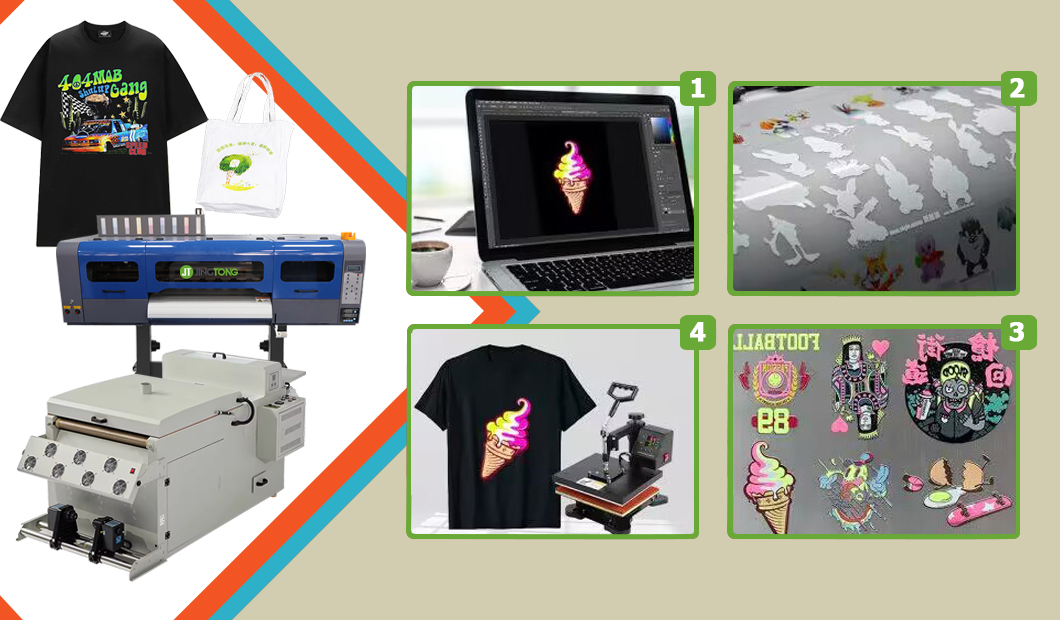

Color Channel for Design Spot
Create spot color channels using a variety of design applications.
Drawing Software RIP
Utilize RIP software; spot color and color are RIP out.
Drying While Printing And Powdering
DTF Fluorescent printing, dusting, drying, and automatic winding are all integrated processing steps.
Pressing of Garments
The printed PET film will either be manually or mechanically cut, hot pressed, and torn before being considered complete. |
 |
FAQ – 24 Inch Large Format DTF Fluorescent Printer1. What is this DTF fluorescent printer used for?
This printer is designed for Direct to Film (DTF) printing with fluorescent ink support, allowing you to create bright, eye-catching transfers for T-shirts, hoodies, bags, and other textiles.
2. What makes this printer “fluorescent”?
In addition to standard CMYK + white ink, the printer supports fluorescent colors (such as fluorescent yellow, pink, or green), producing high-visibility and neon-style effects that stand out under normal and UV light.
3. What is the maximum printing width?
The printer supports up to 24 inches (60 cm) printing width, suitable for large graphics, full-size designs, and higher-volume production.
4. Does it support white ink printing?
Yes. The printer supports white ink printing, which is essential for DTF transfers on dark or colored fabrics and for enhancing fluorescent color brightness.
5. What materials can be transferred after printing?
Printed DTF film can be heat-pressed onto cotton, polyester, blends, and other common fabrics, making it suitable for a wide range of apparel and textile products.
6. Is this printer suitable for commercial production?
Yes. With its 24-inch format and stable DTF workflow, it is ideal for print shops, promotional apparel businesses, and medium-to-large volume production.
7. What additional equipment is required?
For a complete DTF workflow, you will need:
• DTF PET film
• DTF hot-melt powder
• Powder shaker & dryer machine
• Heat press machine
8. What software does the printer use?
The printer works with professional DTF RIP software to control color output, fluorescent layers, white ink, and print settings. A Windows-based system is typically required.
9. What maintenance is required?
Regular maintenance includes:
• Daily nozzle checks
• Printhead cleaning
• Proper white and fluorescent ink circulation
This helps ensure consistent color output and prevents ink clogging.
10. What is the warranty?
Yes. Jingtong machines come with a one-year warranty, except for the print head. During the warranty period, we will send some parts for replacement free of charge, and damaged parts should be returned promptly.
