Structural design of high-precision nozzle bottom plate New upgrade of the structure design of the nozzle bottom plate.The processing accuracy can reach the requirement of 0.01-0.02mm, that is, after installing the nozzle, there is no need to adjust the angle and level posi-tion, can effectively solve the problem of difficult deviation calibration of nozzle position, and also improve the material accuracy of nozzle installation. |
 |
Adopt one-piece aluminum profile mold/industrial-grade high-precision processing The whole machine adopts section aluminum and industri-al-grade high-precision machining, including printing beams, bottom beams, front and rear arc plates, printing platforms, etc. to ensure that the equipment runs more stably and smoothly for a long time at high speed, greatly improving the printing quality and extending the machine service life. |
 |

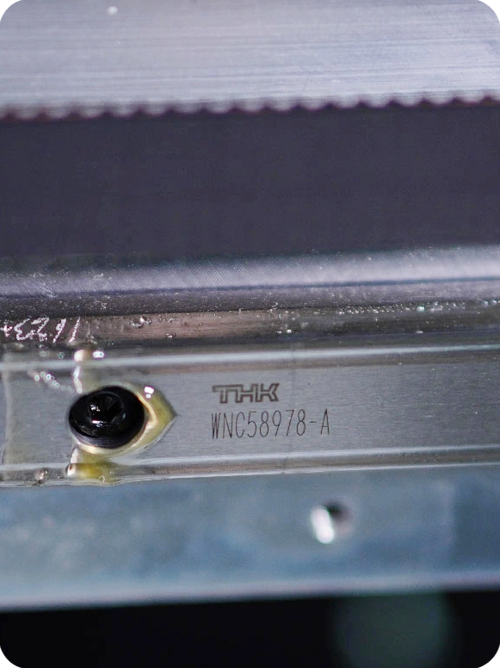

THK Guide Rail Use THK 2.0 guide rail to ensure that the equipment runs more stably and smoothly for a long time at high speed, greatly improving the printing quality and extending the machine service life. |
 |

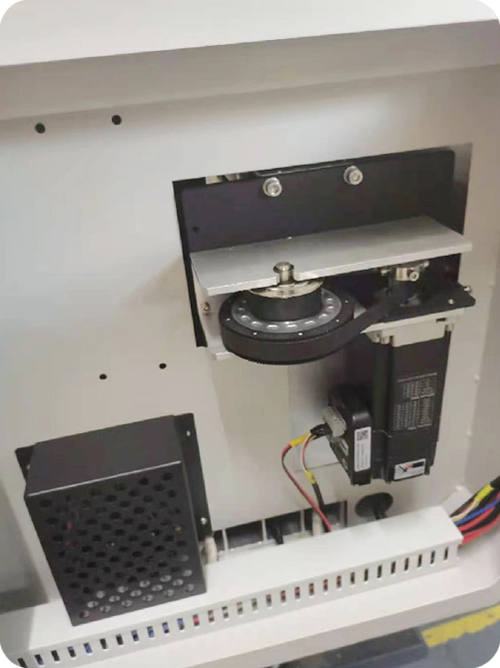

Integrated servo motor, stepper motor The LeadShine integrated servo motor ensures the printing stability and the printing ink dots are more accurate. The paper feeding adopts stepper motor to ensure the consistency and stability of the paper feeding, and improve the printing accuracy. |
 |

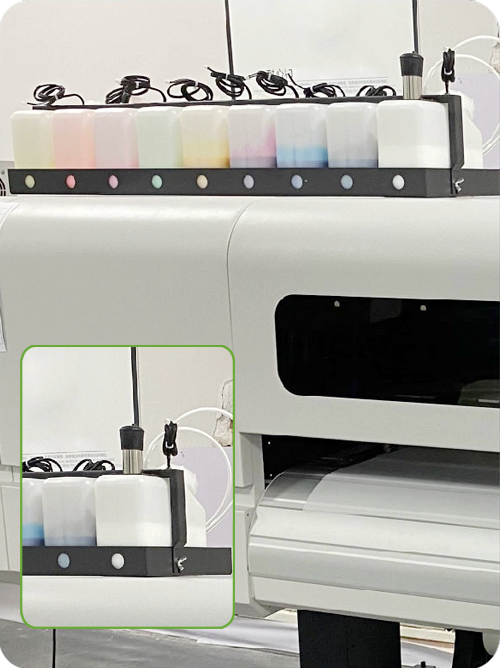

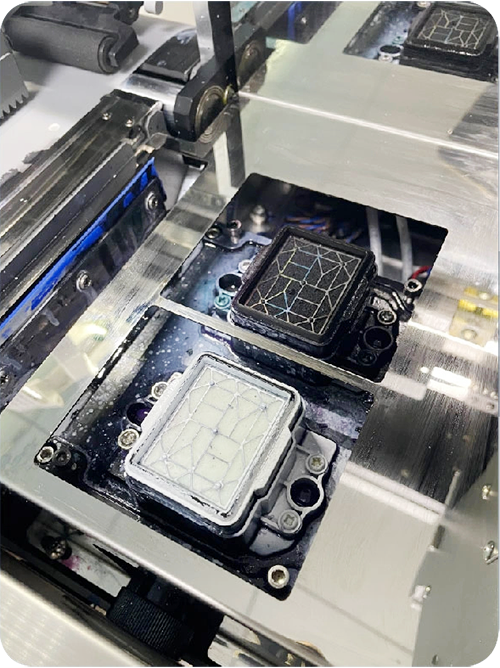

White ink automatic circulation function after shutdown The independent power supply and control circuit board are added. When the machine is turned off, the white ink can realize the automatic circulation function to prevent the phenomenon of white ink precipitation and clogging, thereby improving the service life of the nozzle and reducing the maintenance cost. |
 |

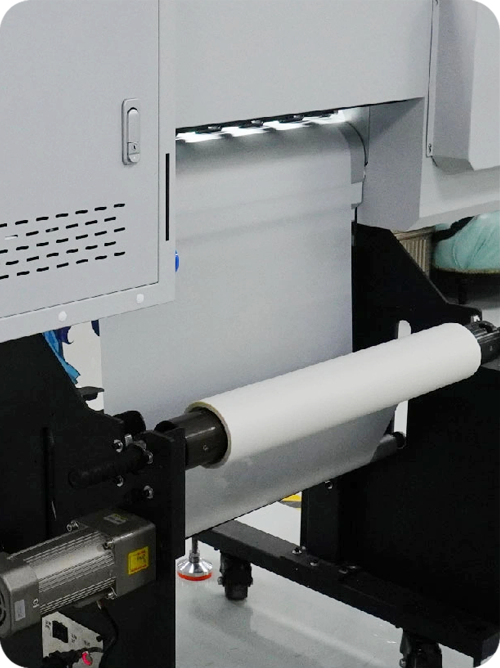

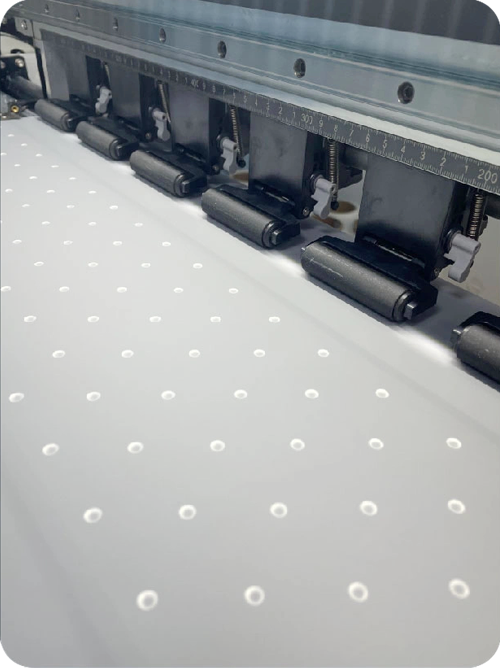

Automatic film feeding control mode The dual power feeding device and the tension rod are used to ensure the flatness of the filmduring the printing process. Stable operation makes film feeding smoother, improves the accuracy of paper feeding steps, improves printing accuracy, and thus improves printing quality. |
 |
Epson I3200-A1 print heads are used in the JT-DTF-602 S Series DTF printer. The Epson I3200 head boasts 3200 nozzles, a 600 dpi resolution, higher jetting frequency than DX5 and XP600, better color saturation, faster printing, and more accurate printing, all for a low price. Very economical. |
| Model | i3200-A1 |
| Ink Type | Water based ink |
| Size(width x depth x height)(mm) | 69.1×59.4×35.6 |
| Weight (g) | 82 |
| Nozzle Numbers | 3200 |
| Length Between Nozzles(inch) | 1/300(in one row) |
| Nozzle Row | 8 row |
| Max color/head | 4 colors |
| Resolution | 300 npi/1 row 600 npi/2 rows |
| Effective Printing Width(mm) | 33.8 |
| Jet Freqency(kHz) | 43.2 (single dot), 21.6 (multi dot) |
| Ink Drops(pl) | 3.8-6-12(9.4) |
| Ink Viscosity(mPa.s) | 3~4 |

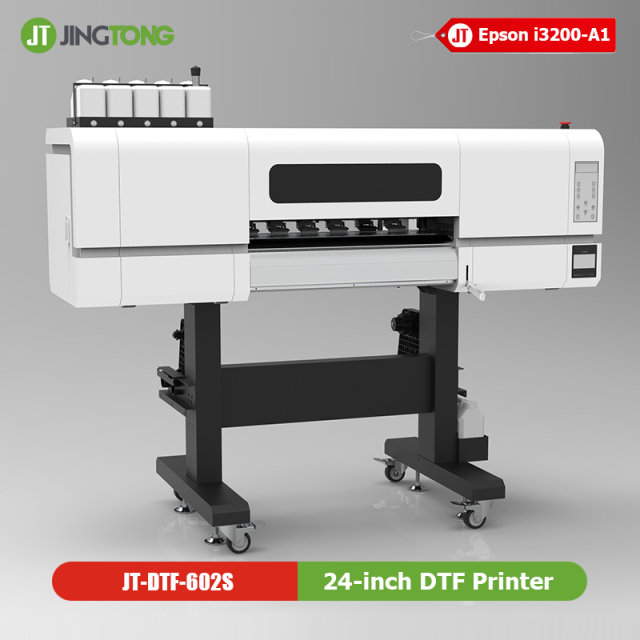

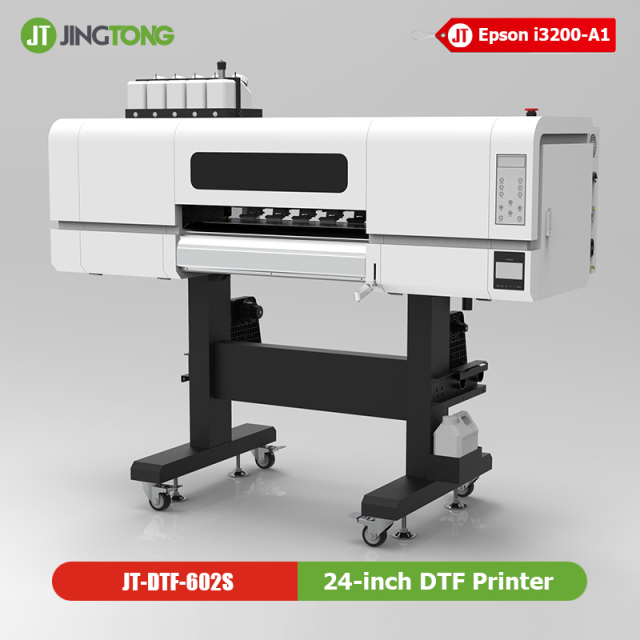

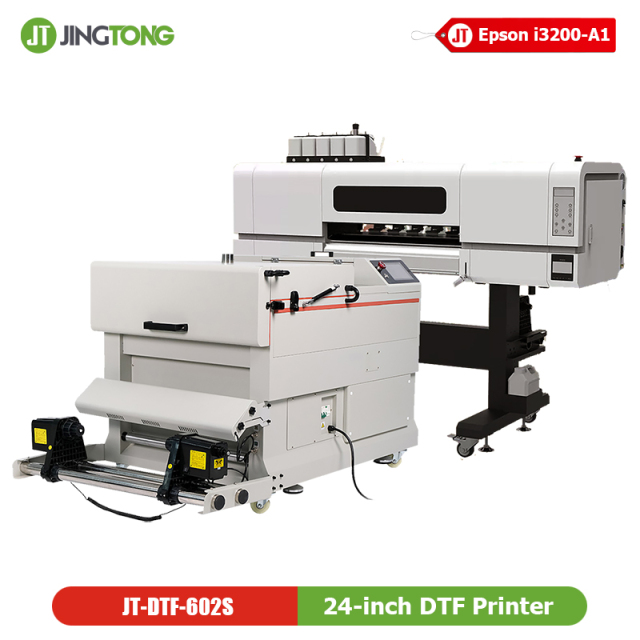

| Model | JT-DTF-602S |
| Print head | Epson I3200-A1 |
| Number of nozzles | 2 pcs |
| Printing Speed | 8-18 m2/h |
| Ink | Type: Water pigment ink
Capacity: 5 Colors: 1.5L*5/color Continuous supply system Colour: CMYK+W |
| Media type | Home fabric, sportswear, flagsPP Synthetic paper, vinyl sheet, film, etc |
| Dimensions(mm) | W1785*D790*H1613mm |
| Transmission interface | USB 2.0 |
| Moisturizing mode | Automatic sealing and moisturizing cleaning |
| Computer configuration | Windows 7 64-bit, win10 (ultimate/pro), hard disk, NTFS, minimum 100 g, C disk space WD500G hard disk, video card: ATI showing a 4 GB of memory |
| Print width | 600mm |
| Power | Printer: 2000W Dryer: 450w |
| Temperature | Temeperature: 15-32C |
| Humidity | Humidity: 35-65% |
| Rip software | Maintop6.0, Print Factory Photo print |
| Printing height | 1.5-6mm |
| Print resolution | 4 pass: 720*1200; 6pass: 720*1800; 8 pass: 720*2400dpi |
| image format | TIFF JPG EPS PDF |
| Weight | 180kg |
| Heating system | Pre/Post Heater |
| Print media | PET Film |

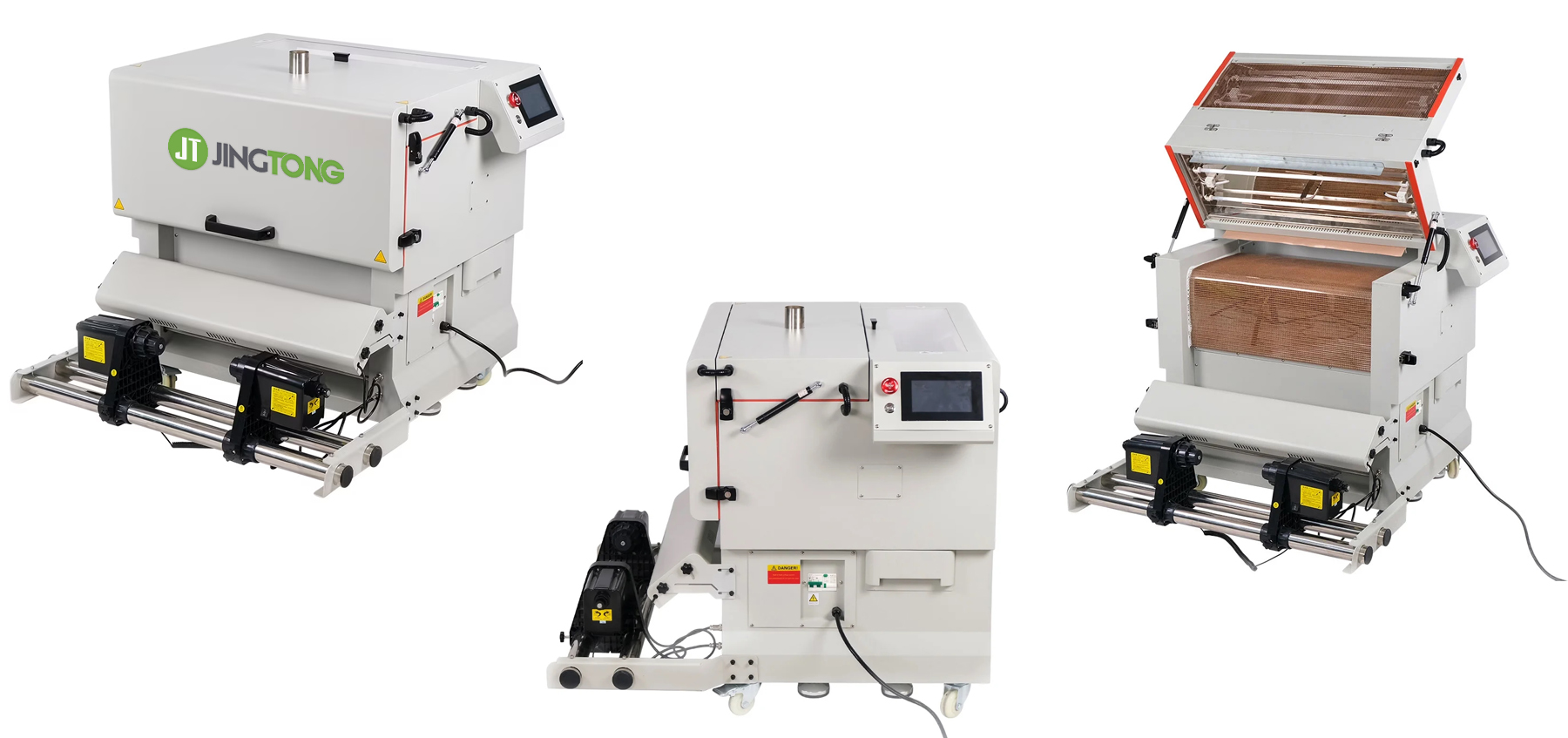

| Model No. | JT-DH650 |
| Manufaturer | JINGTONG INDUSTRY |
| Maximum Shake Powder Width | 23.6inches |
| Functions | Shake powder control, dusting control, PID setting of curing temperature |
| Heating Element | 4pcs Quartz infrared heat drying tube |
| Rewinding Function | Automatic induction rewinding |
| Heating and Drying Mode | Front guide plate heating, upper drying curing |
| Cooling Mode | 4 fan air cooling (single row) |
| Machine Size | 43.7in x 39.4in x 38.5in |
| Powder Shaker Machine Weight | 176.4lbs |
| Packaging Size | 34.3in x 44.1in x 43.8in |
| Gross Weight | 264.6lbs |
| Compatible with media within a width of 23.6inches | Meet the printing speed of 6-10 square meters per hour |
| Powder spreading structure | The motor drives the brush to rotate to brush the hot melt powder out of the powder box |
| Powder shaking device | The motor drives the powder shaking lever to beat the film to clean up excess hot melt powder |
| Requirements | |
| Working Power Supply | AC220V, 50hz / 60hz, 1 phase. |
| Current | 14A, 3000W |
| With DTF film, power and Inks, you can easily and quickly create custom t-shirts and apparel. | |

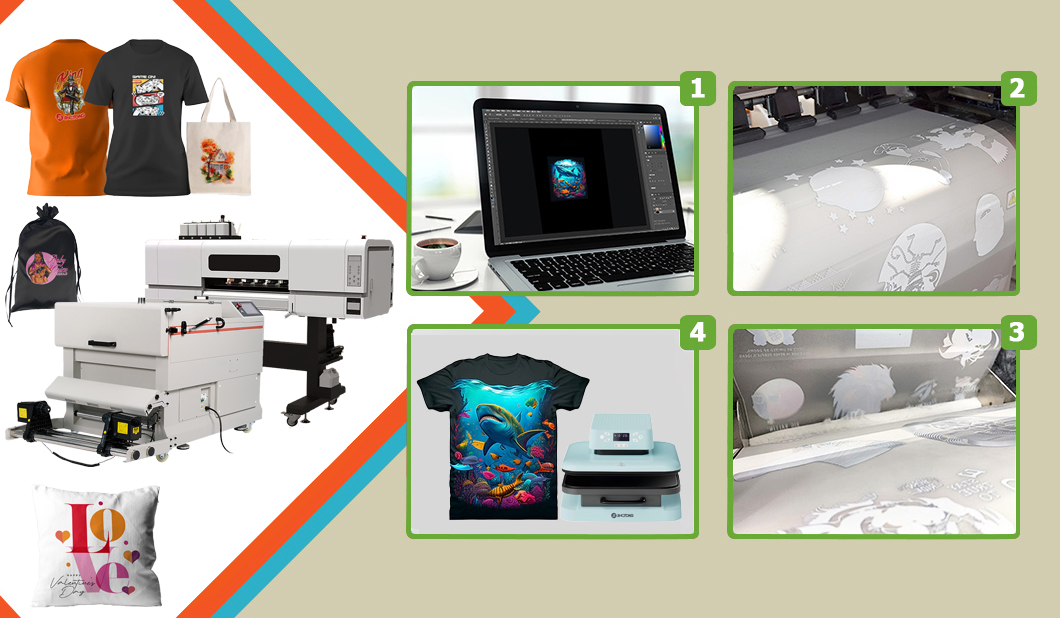

| Color Channel for Design Spot Create spot color channels using a variety of design applications. Drawing Software RIP Utilize RIP software; spot color and color are RIP out. Drying While Printing And Powdering DTF Fluorescent printing, dusting, drying, and automatic winding are all integrated processing steps. Pressing of Garments The printed PET film will either be manually or mechanically cut, hot pressed, and torn before being considered complete. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
