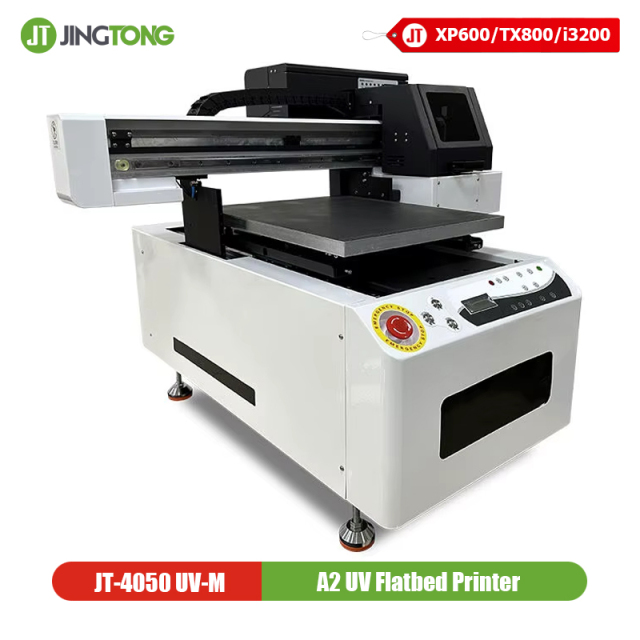

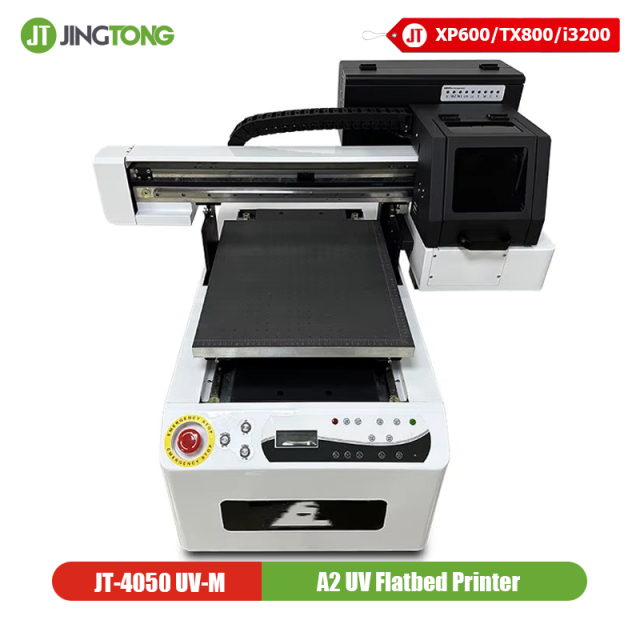

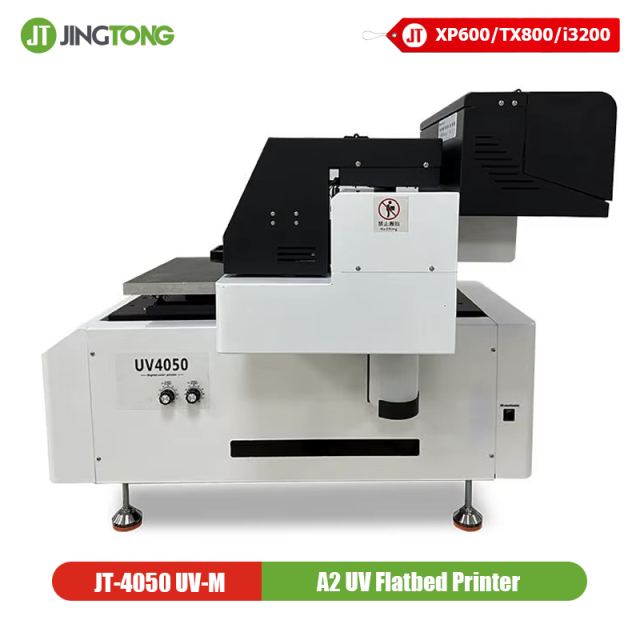

4050 A2 UV Flatbed Printer with Dual Epson XP600 for Wood, Metal, Tumbler Printing
No.JT-4050 UV-M

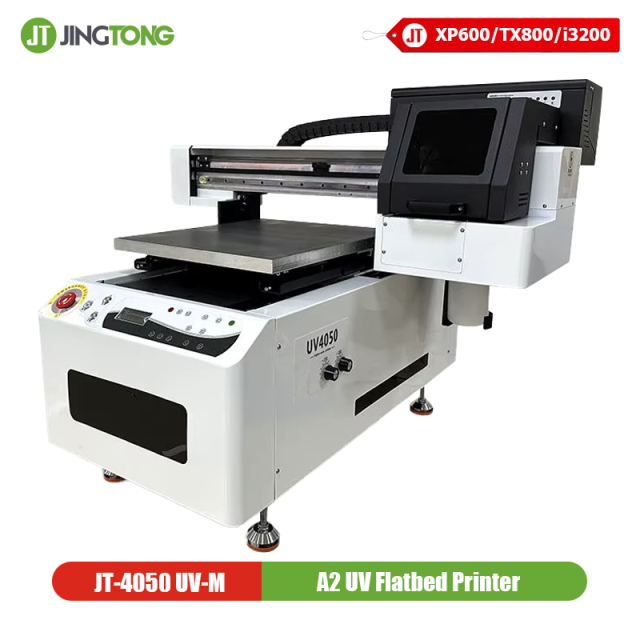

The JT-4050 UV-M is a compact A2 UV flatbed printer equipped with dual Epson XP600 printheads, delivering high-quality direct printing on wood, metal, acrylic, glass, PVC, tumblers and other customized products. Technical Highlights: Print Head: Dual EPSON XP600 / Epson i1600-U1 Max Print Size: 400mm*500mm Print Speed: Approx.5 m2/h Ink Type: ECO-UV Curing Ink Print Mode: C, M,Y, K+WW+Varnish / C, M,Y, K+LC+LM+WW+Varnish
Warranty: 1 years full machine warranty, 2 years warranty on core components, and lifetime technical support. (Ink system, printheads and ink capping are not covered) International Shipping: DHL,FedEx,By Air,By Sea
The JT-4050 UV-M is a compact A2 UV flatbed printer designed for customized product printing and short-run production. With dual Epson XP600 printheads, a 400 × 500 mm printing area and UV LED curing, it produces sharp, durable prints on a wide range of materials. The 0–180 mm adjustable printing height and optional white and varnish printing make this 4050 UV printer suitable for personalized gifts, promotional products, signage, packaging and other high-value applications.

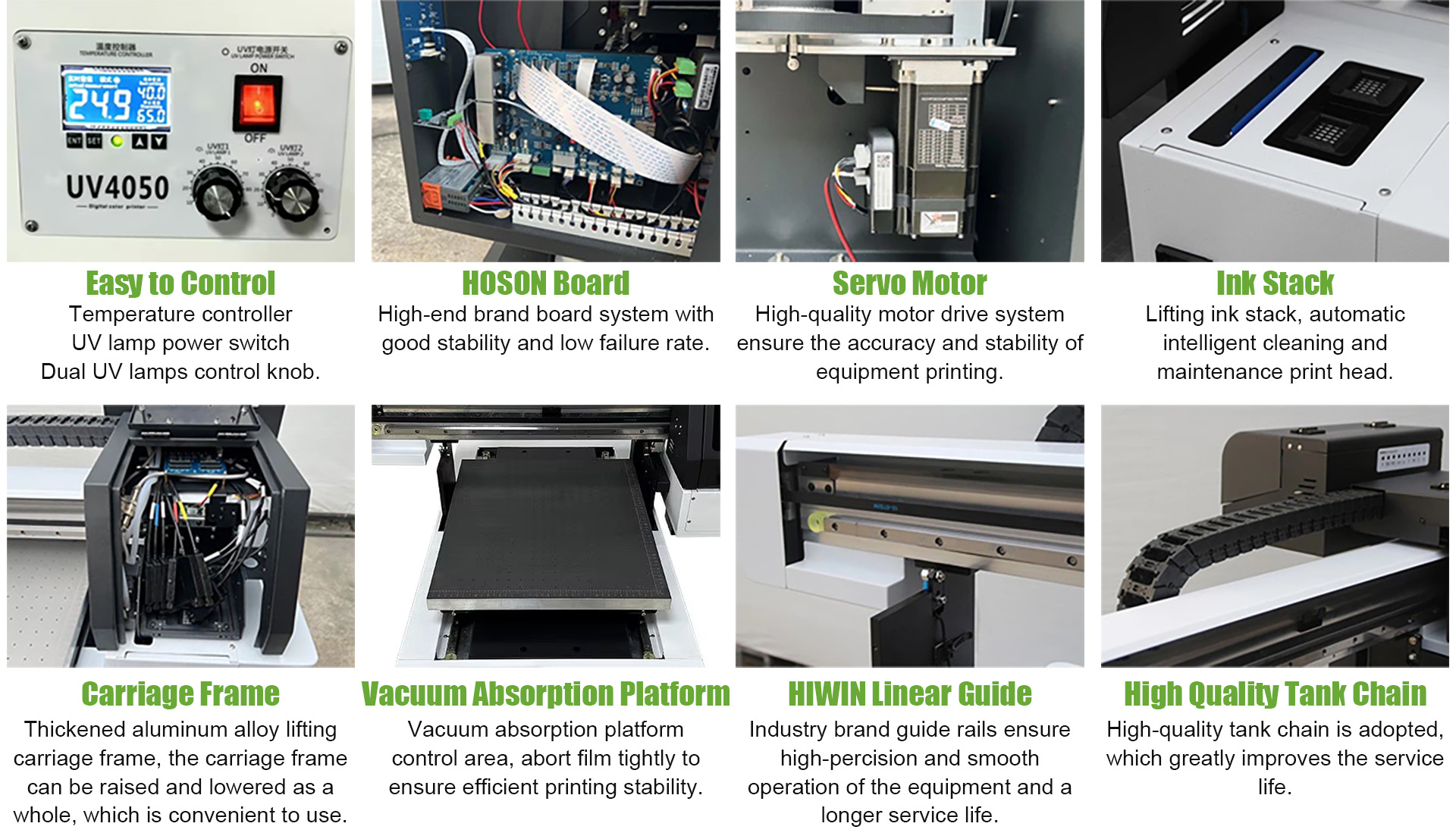

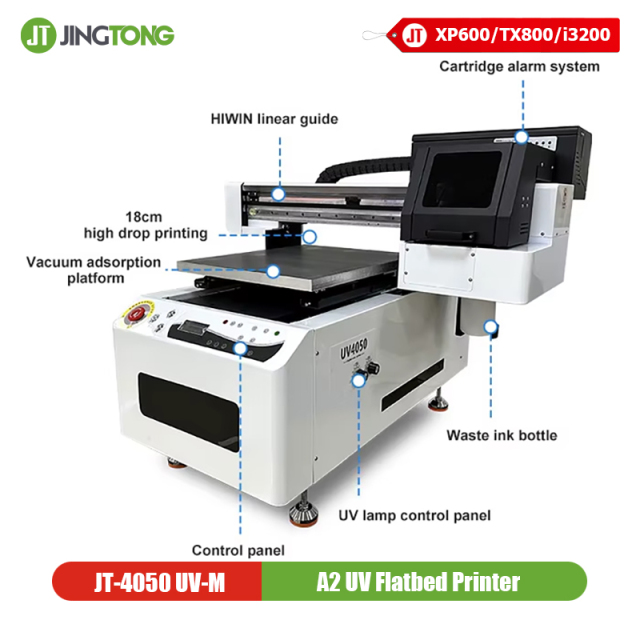

Advantages: - LED UV light to cure/dry UV ink immediately - Simultaneous printing of white, color, and varnish ink to create a multi-layered 3D effect - Vacuum table, movable control panel Key Features • Versatile Direct-to-Object Printing - Print directly onto wood, acrylic, metal, glass, PVC, leather, tiles and other compatible substrates. • Dual XP600 Configuration - Two Epson XP600 printheads provide efficient color printing and stable output for customized production. • High-Resolution UV Output - Supports resolutions up to 1400 × 1400 dpi for fine text, detailed graphics and vibrant images. • Multi-Layer Printing Capability - White ink and varnish can be combined with CMYK to create bright colors, textured effects and enhanced visual depth. • Automatic Printing Height Detection - The adjustable 0–180 mm printing height accommodates different product thicknesses and simplifies setup. • Vacuum Printing Platform - The vacuum table helps keep substrates securely positioned during printing for more consistent results.
Specification
Product Name
4050 UV Flatbed Printer
Model No.
JT-4050 UV-M
Print Technology
Print Technology
UV LED Inkjet Printing
Print Head
2pcs * Epson XP600 (Optional in TX800 or i3200-U1
Print Color
C, M,Y, K+W+Varnish / C, M,Y, K+LC+LM+W+Varnish
Ink system
CISS
Print Quality
Resolution
720*1080dpi/720*1400dpi/1400*1400dpi
Size
400mm x 500mm
Height
0~180mm (Automatic Height Detecting System)
Speed
1-5 sqm per hour
Ink & Material
UV ink
Flat materials eg. PVC card,wooden card, plastic card, metal card, paper card, name card box etc
Electrical Spec.
Power
660W
Voltage
110V / 220V
Packing
N.W.
109kg

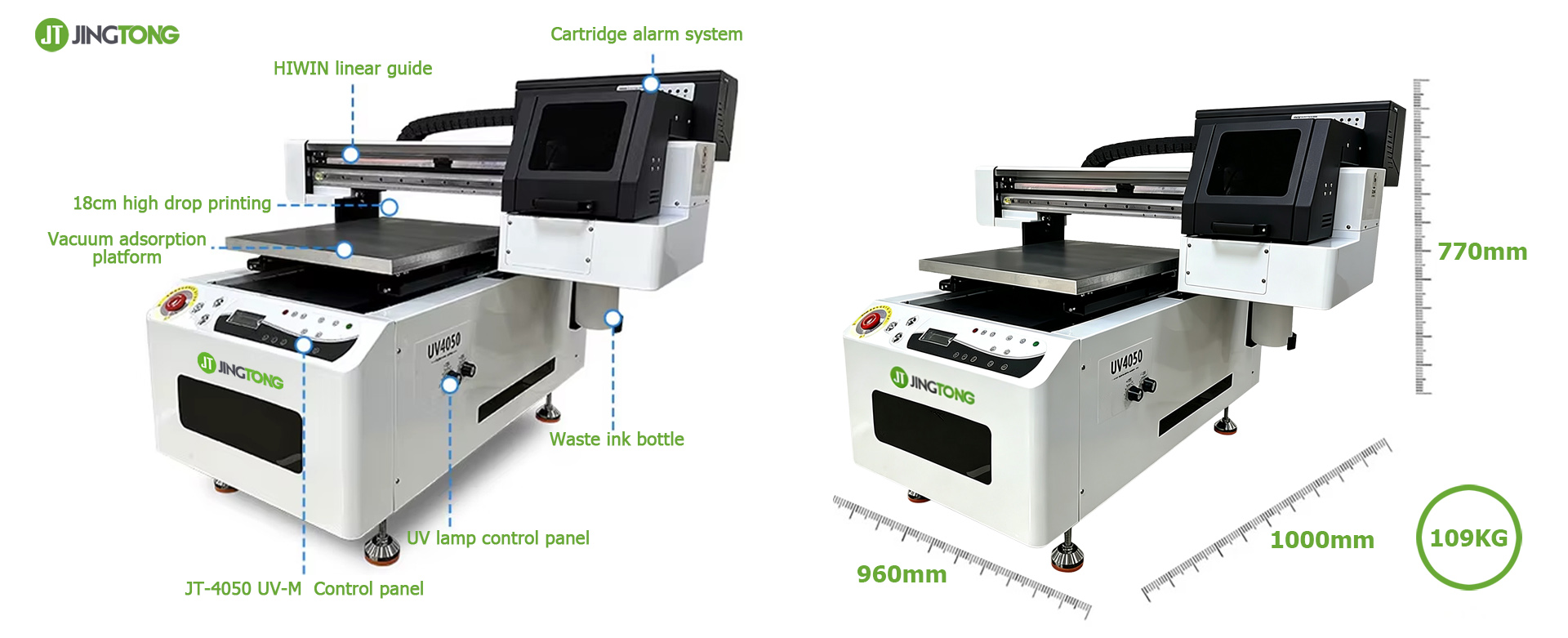

Printer Size
L960 x W1000 x H770mm
Packing
Fumigation-Free Wooden Case
Multi Printing Methods
Application of Jingtong A2 UV Flatbed Printer The JT-4050-M A2 UV printer is suitable for personalized gifts, phone cases, signs, promotional products, packaging, home décor and customized merchandise. It can print directly on wood, acrylic, metal, glass, PVC, leather, tiles, plastic and other compatible materials, while suitable jigs can extend applications to tumblers, bottles and other curved products.
FAQ – A2 XP600 UV Flatbed Printer
Q1: What is the maximum printing size of the JT-4050 UV-M A2 UV printer? A: The maximum printing area is 400 × 500 mm, making it suitable for small-format customized products and batch printing.
Q2: Can the JT-4050 UV-M print white ink and varnish? A: Yes. The printer supports CMYK with white and varnish, allowing users to print on dark or transparent materials and create layered or glossy effects.
Q3: What is the maximum printable object height? A: The printing height is adjustable from 0 to 180 mm, with an automatic height detection system for easier setup.
Q4: Can it print directly on metal, glass and acrylic without transfer film? A: Yes. It is a direct UV printing machine and can print directly onto compatible rigid substrates. For some very smooth or difficult surfaces, surface treatment or primer may be recommended to improve adhesion.
Q5: Can the 4050 UV printer be used for tumbler and bottle printing? A: Yes. With the appropriate rotary device or printing jig, the machine can be configured for selected cylindrical products such as tumblers, bottles and cups.

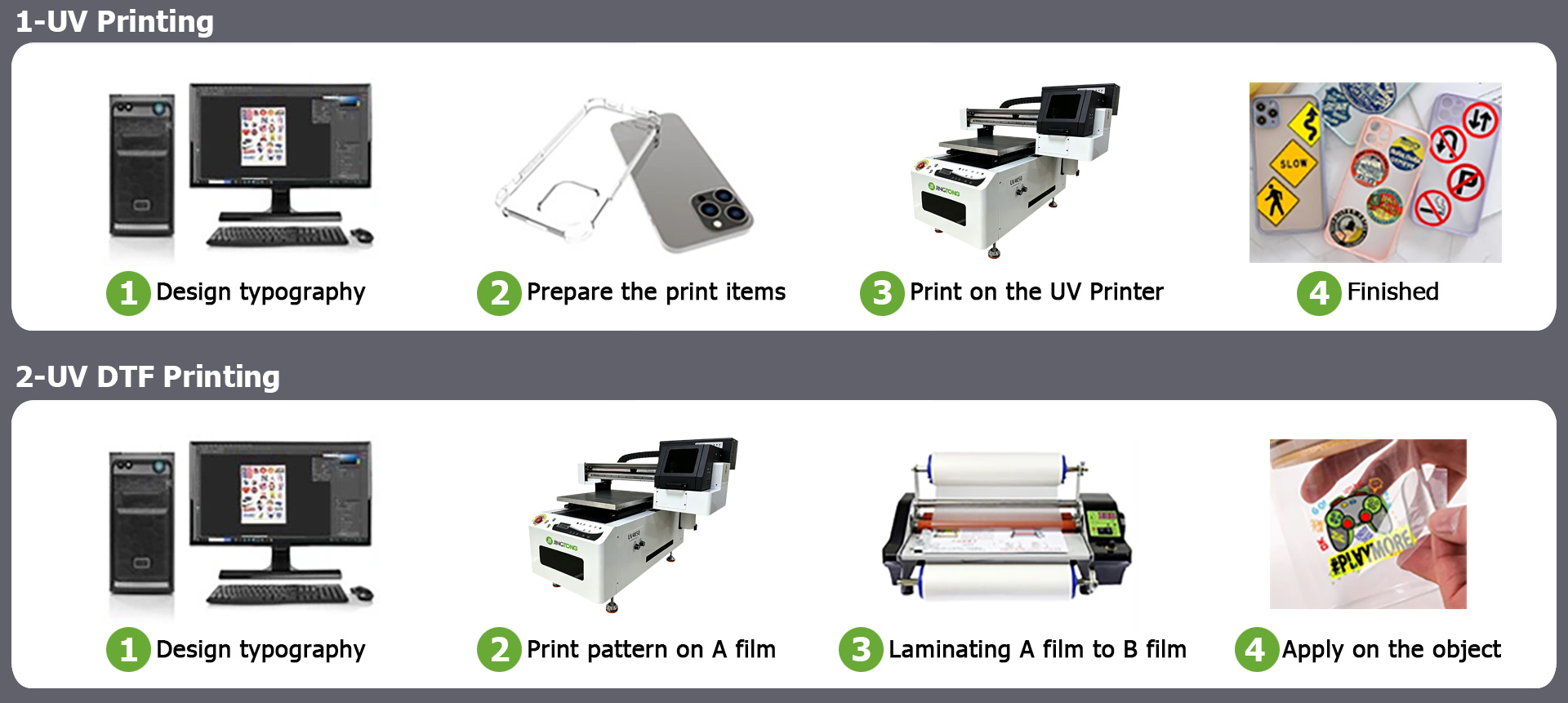

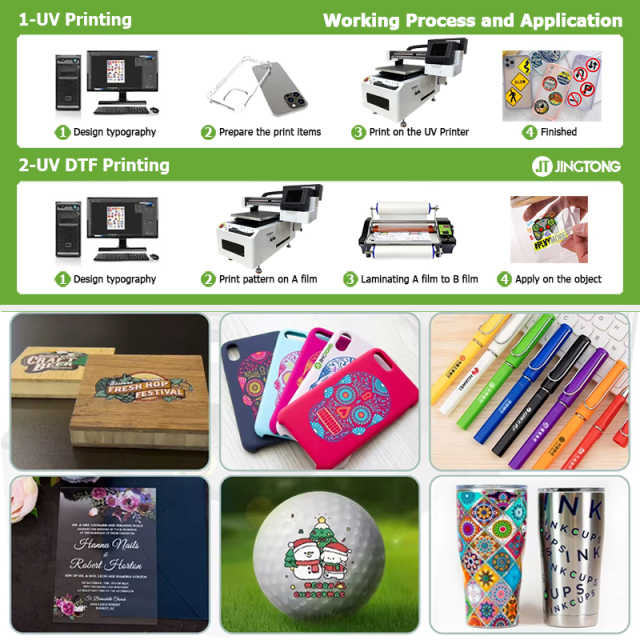

Q6: What is the difference between this A2 UV printer and a UV DTF printer? A: The JT-4050-UV-M prints UV ink directly onto the product, making it ideal for rigid substrates and direct customization. UV DTF printers print onto film first and then transfer the design to the final product, which is more suitable for irregular or difficult-to-print surfaces.
