The 60 cm wide two-stage dryer and automatic DTF powder shaker machine is designed for high-volume DTF workflows. It features automatic powder application and recycling, plus a dual-stage drying conveyor — an ideal companion for large format DTF printers. Technical Highlights: Operation Mode: PLC Touch Screen Working Width: 300mm/450mm/600mm Oven Length: 1002mm Oven Temp: Adjustable
Warranty: 1 years full machine warranty, 2 years warranty on core components, and lifetime technical support. International Shipping: DHL, FedEx, By Air, By Sea
The JT-DH6501A is anadvanced and multi-functional DTF powder shaker, featuring top-tier components and industry-leading structural design. Every part, from the internal components to the machine’s structure, meets the highest industry standards. This machine is engineered for exceptional performance, safety, and reliability. It can meet the demand of printing with larger output, and can with the use of special film, it has better multiple effects.
Feature of 24-inch DTF Powder Shaker
Automatic powder application & recycling – Ensures uniform hot-melt adhesive powder on printed film while collecting excess for reuse, cutting waste and costs.
Dual-stage drying process – Combines a dedicated drying section with a conveyor belt system to cure the powder-coated film optimally before transfer.
60 cm wide working width – Suits wide-format DTF setups, enabling larger film widths and higher throughput for industrial or commercial output.
Enhanced productivity & consistency – Automating powdering and drying steps reduces manual labour, improves repeatability and supports scalable production.
Cleaner workflow & reduced waste – With controlled powder distribution and built-in recycling, the machine minimizes dust, overspray and disposal concerns.
Seamless integration into DTF system – Specifically built to complement roll-to-roll or sheet-based DTF printer lines, helping you build a full end-to-end transfer process.
Machine Parameter

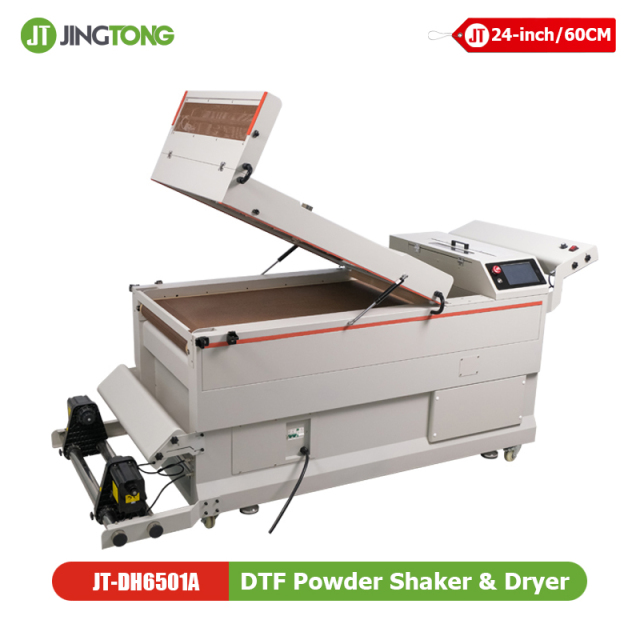

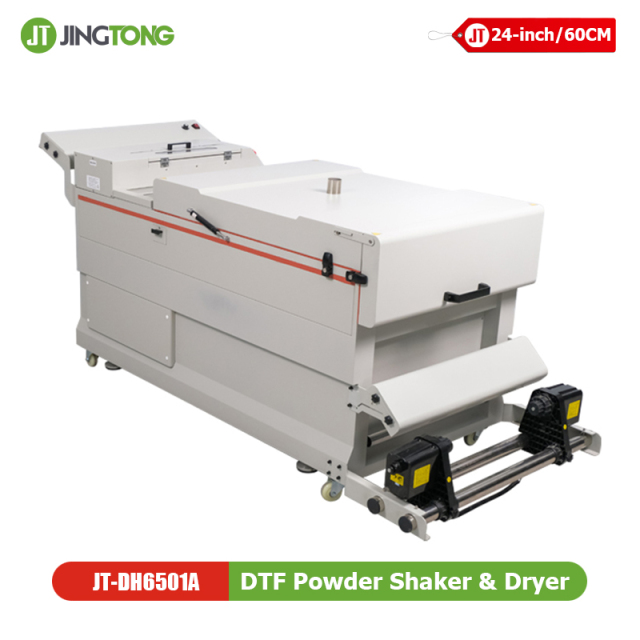

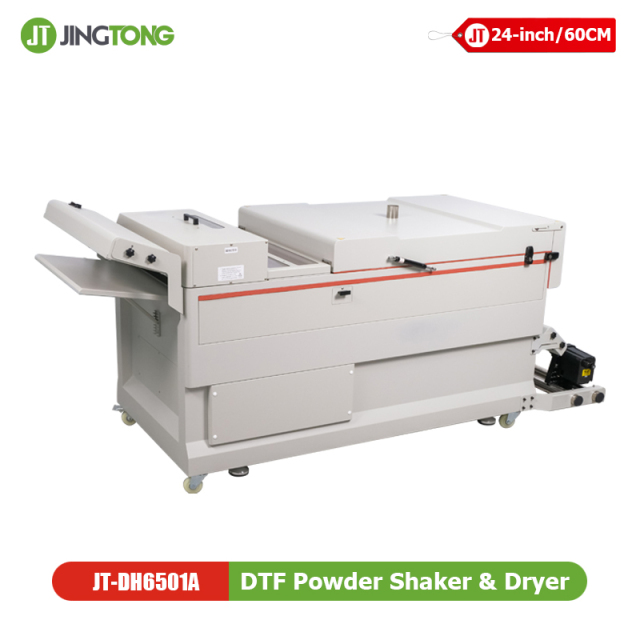

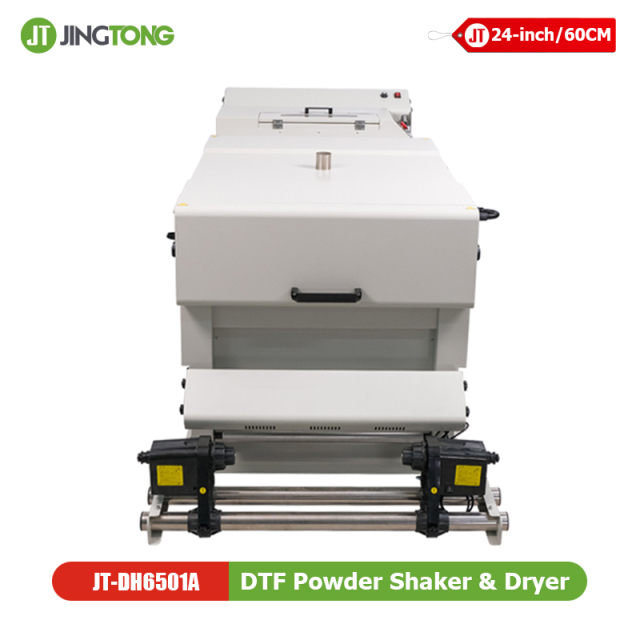

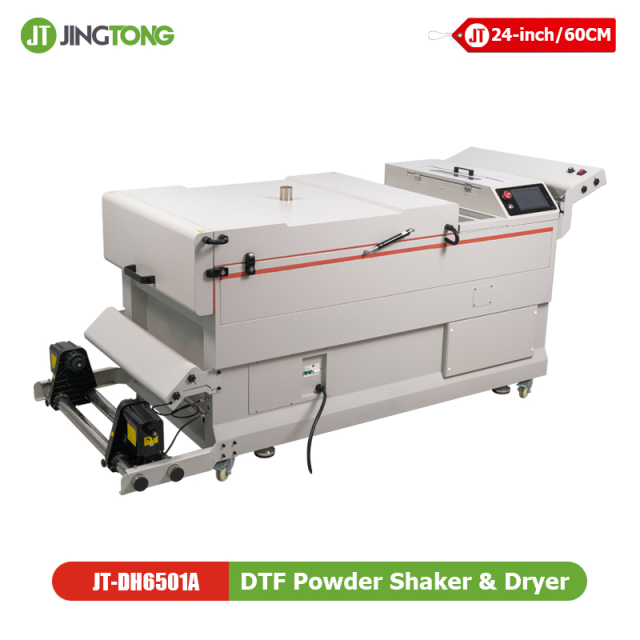

60CM Two-Stage DTF Powder Shaker Machine
Model
JT-DH6501A
Factory
JINGTONG
Material
Dtf film
Filmsize
60CM
Preheating
Large heating plate
Plate TEMP
Can be set
Electrostatic prevention
Electrostatic brush
Filmtransmit
Conveyor belt
Media correction
Front and rear film positioning correction
Film take-up system
Double motors Auto-induction
Powder amount
Can be set
Shake speed
Can be set
Powder Control
Auto-special control structure
Shaking cover
Acrylic metal frame cover
Dryer
Further lengthened drying
Control panel
Touch screen
Voltage
110V or 220V
Rated Power
7.2KW
Rated current
33A
Energy usage
3KW-7.2KW
Packing
1951*1121*1115mm
G.W
300KG
Warranty
24 Month
Technical support
Free for life
Why Choose JINGTONG JT-DH6501A - Powder Shaker?
Designed for professional DTF printing workflows
Optimized for Epson I3200 printhead systems
Provides stable performance, low waste, and high output
Supports fluorescent ink printing for enhanced visual results
Ideal for scalable business growth in garment and textile decoration
Application Areas 1. Garment Printing Factories Ideal for mass production of T-shirts, hoodies, sportswear, and uniforms using DTF transfer films. 2. Custom Apparel Shops Perfect for small-batch or on-demand printing with consistent quality. 3. Fashion and Design Studios Allows creation of vivid, neon-color designs using DTF fluorescent inks with reliable curing. 4. Promotional Product Manufacturers Produces durable, bright prints for bags, caps, and other customized giveaways. 5. Print-on-Demand Businesses Reduces labor and speeds up delivery by automating powder application and film drying.
FAQ – 60 cm Two-Stage DTF Powder Shaker Machine 1. What is this two-stage powder shaker machine used for? This machine is designed for DTF (Direct to Film) printing to automatically apply hot-melt powder, shake off excess powder, and cure the printed film, ensuring consistent adhesion and high transfer quality.
2. What does “two-stage” mean? Two-stage means the machine uses separate zones for powder application and curing, allowing more precise powder distribution and more even, stable film drying compared to single-stage units.
3. What printing width does it support? The machine supports DTF films up to 60 cm width, making it ideal for mid- to large-format DTF printers and higher-volume production.
4. What types of DTF powder are compatible? It is compatible with most TPU hot-melt DTF powders, including fine, medium, and general-purpose powders for different fabric types.
5. Are temperature and speed adjustable? Yes. Heating temperature, conveyor speed, and shaking intensity can be adjusted to match different inks, powders, films, and production requirements.
6. Can it work with different DTF printers? Yes. The machine can be connected to most 60 cm DTF printers from various brands, as long as the film output size is compatible.
7. Is this machine suitable for high-volume production? Yes. With its wider format and two-stage curing design, it is well-suited for commercial print shops and higher daily output.
8. What maintenance is required? Routine maintenance includes cleaning excess powder, checking heating components, and keeping the conveyor belt clean to ensure stable long-term operation.
9. Does the machine have safety features? Yes. It features stable temperature control and enclosed heating design, helping ensure safe and reliable operation.
10. Is technical support and warranty included? Yes. The machine includes warranty service and professional technical support, including installation guidance and troubleshooting. With a one-year warranty. During the warranty period, we will send some parts for replacement free of charge, and damaged parts should be returned promptly.
