The 6090 UV flatbed printer is a high-performance digital printing solution designed for businesses seeking precision, versatility, and efficiency. Equipped with Epson XP600, i1600, or i3200 printheads, it ensures excellent image quality, stable performance, and fast production speed.
With a printing size of 600×900mm, this machine supports CMYK + White + Varnish printing, enabling outstanding results on both light and dark materials. The advanced UV LED curing system allows instant drying, making it suitable for a wide range of rigid and flexible substrates such as glass, acrylic, wood, metal, ceramic, plastic, and leather.
The printer features a vacuum adsorption platform for stable material positioning, automatic cleaning system for easy maintenance, and optional rotary device for cylindrical objects like bottles and mugs. Whether for signage production, promotional items, or personalized gifts, the 6090 UV printer offers a reliable and cost-effective solution for modern printing businesses.
About JT-6090 UV Printer

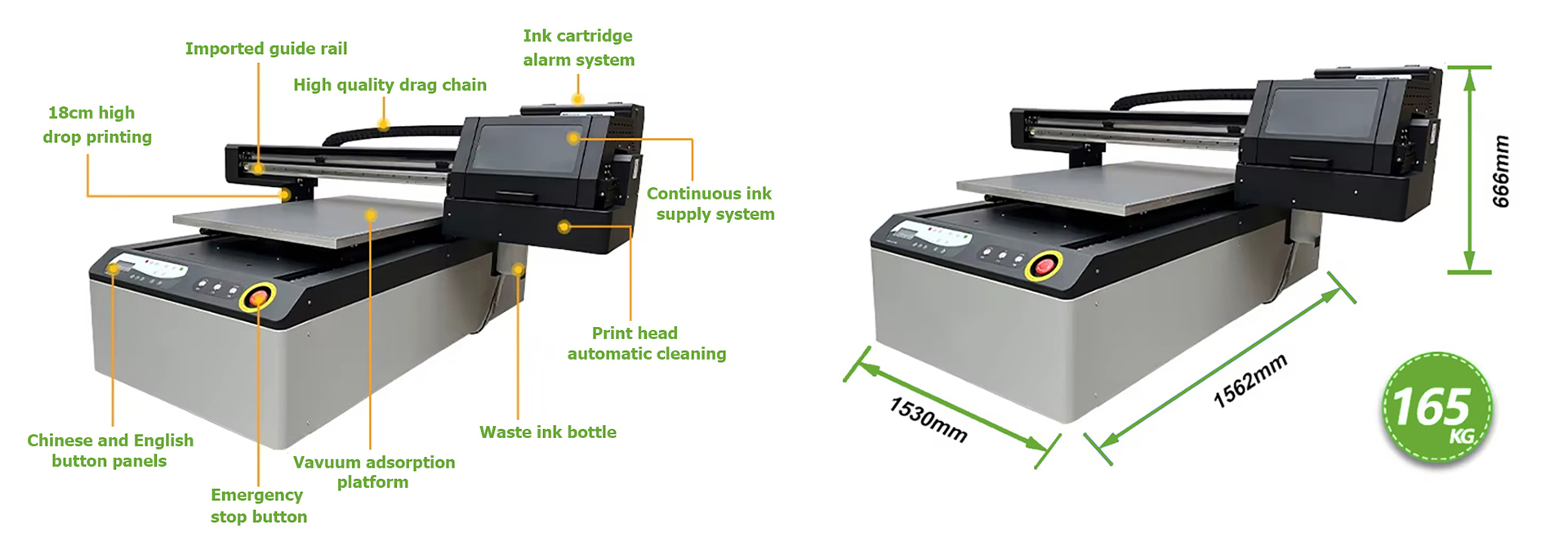

- Vacuum Adsorption Platform: The high-precision vacuum adsorption platform is equipped with a fll-wheel fan under the printing platform, so that the printing material is tightly adsorbed on the printing platform.
- High Quality Output: Jingtong 6090 flatbed UV printer contains many advanced features that can be easily used to complete high quality printing jobs.
- High Standard installation process control: Good quality material using, part to choose to ensure the quality of our sublicool Jingtong 6090 flatbed UV printing machine.
- Vacuum printing table with Rotary device: Jingtong 6090 flatbed UV printer have the rotary device optional, can use for flatbed, round bottle, mug with handle, different diameter tumbler using.
Specification
|
Model
|
JT-6090 UV - JINGTONG UV Flatbed Printer
|
|
Print Head
|
Epson XP600 / i1600 / i3200
|
|
Print Head Quantity
|
2~3 pcs
|
|
Printing Size
|
600*900mm
|
|
Printing Accuracy
|
720/1080/1440/2160/3200 dpi
|
|
Resolution & Speed
|
Epson XP600
6pass: 5m2/h
8pass: 3.5m2/h
12pass: 1.5m2/h
|
Epson i1600-U1
6pass: 5m2/h
8pass: 3.5m2/h
12pass: 1.5m2/h |
Epson i3200-U1
6pass: 8m2/h
8pass: 5m2/h
12pass: 3m2/h |
|
Print Mode
|
CMYK + W + Varnish
|
|
Print Head Cleaning
|
Automatic
|
|
Ink Type
|
UV ink
|
|
Platform Height Adjustable
|
0-180mm
|
|
Print Material
|
Acrylic, glass, stainless steel, mobile phone cases, ceramic tiles, KT boards, wooden boards, aluminum-plastic boards
|
|
Ink Cartridge Type
|
Intelligent induction ink shortage alarm cartridge
|
|
White lnk Stirring Function
|
Yes
|
|
Rotary Shaft Device
|
Optional
|
|
Optional Configuration
|
Vision Positioning System
|
| Platform Suction |
Yes
|
|
Print Interface
|
Gigabit Network
|
|
Standard Warranty
|
1 years full machine warranty, 2 years warranty on core components, and lifetime technical support. (Ink system, printheads and ink capping are not covered)
|
|
Working Environment
|
Temperature 20-30ºC
|
|
Software
|
Riprint / MainTop / Photo Print
|
|
Operating System
|
Win7 / Win10 / Win11
|
|
Rated Power
|
2100W
|
|
Machine size/weight
|
L1562*W1530*H666mm/165kg
|
|
Package size/weight
|
L1660*W1660*H890mm/255kg
|
Vision Positioning System (Optional Feature)Vision Positioning System – Smart Printing UpgradeThe 6090 UV printer can be equipped with an advanced Vision Positioning System, designed to significantly improve printing accuracy and workflow efficiency.This system uses a high-resolution camera to automatically scan and detect the exact position of printed objects, enabling precise alignment for every job. It is especially useful for irregular shapes, batch printing, and pre-cut materials.Key Advantages:• Automatic Position Detection: Reduces manual alignment and setup time• High Precision Printing: Ensures accurate image placement on every item• Batch Production Efficiency: Ideal for mass production of small items like phone cases, tags, and promotional products• Reduced Errors & Waste: Minimizes misprints and material loss• User-Friendly Operation: Easy integration with RIP software for seamless workflowWith the vision positioning system, even beginners can achieve professional-level results while increasing productivity and profitability.Multi Printing MethodsThe 6090 UV printer supports two flexible printing methods to meet different production needs:1. UV Flatbed Printing (Direct Printing)Materials are placed directly on the flatbed platform, where UV ink is printed and instantly cured by UV LED lamps. This method is ideal for rigid and flat surfaces such as glass, acrylic, wood, metal, and plastic.With an optional rotary attachment (cylindrical fixture), the printer can also handle round objects like bottles, tumblers, mugs, and cups, expanding its application range.2. UV DTF Sticker Printing (Indirect Transfer Printing)The printer can also produce UV DTF (Direct-to-Film) stickers using AB film. First, designs are printed onto a special film with UV ink and varnish layers. Then, the printed sticker can be transferred onto various surfaces by simple application—no direct printing required.This method is perfect for irregular shapes, curved surfaces, or items that are difficult to print on directly.
Application of Jingtong 6090 UV Flatbed Printer
The 6090 UV flatbed printer is widely used across multiple industries thanks to its versatility and high-quality output.
It is ideal for producing customized promotional products, advertising signage, home décor items, and personalized gifts. Common applications include printing on phone cases, acrylic signs, glass panels, wooden crafts, metal plates, leather goods, and plastic products.
With the optional cylindrical printing function, it is also suitable for bottles, tumblers, mugs, and cups, making it a great solution for drinkware customization businesses.
Additionally, the UV DTF sticker function expands its use to irregular items, curved surfaces, packaging, logos, labels, and branding applications, allowing users to decorate almost any surface with high precision and durability.
FAQ – 6090 UV Flatbed Printer
Q1: What materials can the 6090 UV printer print on?
A: It can print on a wide range of materials including acrylic, glass, wood, metal, ceramic, plastic, leather, and more. It is suitable for both rigid and some flexible materials.
Q2: What is the difference between XP600, i1600, and i3200 printheads?
A:
• XP600: Cost-effective, suitable for entry-level and general printing
• i1600: Better stability and finer details
• i3200: Higher speed, industrial-level performance, longer lifespan
Q3: Does the printer support white ink and varnish?
A: Yes, it supports CMYK + White + Varnish printing, allowing printing on dark surfaces and creating 3D or glossy effects.
Q4: Can it print on cylindrical objects like bottles?
A: Yes, with an optional rotary device, the printer can print on bottles, mugs, tumblers, and other cylindrical items.
Q5: Is this printer suitable for small businesses?
A: Absolutely. The 6090 UV printer is compact, affordable, and versatile, making it ideal for startups, small businesses, and customization shops.
Q6: What software is compatible with this printer?
A: It supports popular RIP software such as MainTop and PhotoPrint, ensuring easy operation and professional color management.
