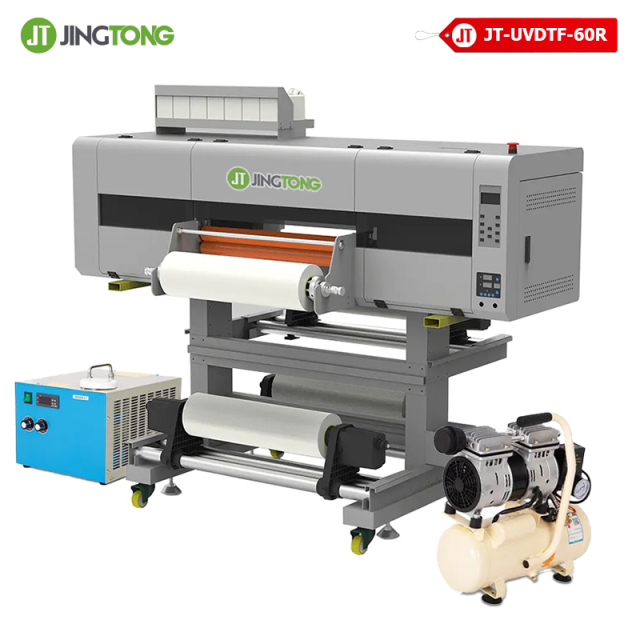

Multi-Functional, High-Luxury CustomizationThe JT-UVDTF-60R Roll To Roll UV DTF Printer allows one person to print individual crystal labels. 3 printing nozzles to achieve white + color + varnish multi-layer printing, support hot stamping gold and silver, can achieve high brightness and high luxury customized effect.Multi-Layer Printing + 3D Dimensional Relief Effect - With 3 printheads, it can realize W+CMYK+W+Varnish multi-layer printing, with bright color output. At the same time, it can achieve 3D relief and multi-layer transparent concave-convex effect, with first-class gloss and texture.High-Performance inks for a variety of applications - It is an eco-friendly UV ink with excellent color development and color reproducibility. It is cured by ultraviolet radiation. In addition to bright colors and style, it also has strong adhesion.Wider Range of Applications + Supporting High Luxury Customization - UV DTF printer is a kind of expansion of UV direct printing, which can be applied inside some shaped surfaces and objects that can't be moved or not well printed, realizing the diversification of applications.UV DTF printer technology is becoming more and more mature, and now supports hot stamping program and hot stamping silver program, which is very suitable for high-end customization, showing the luxury, high brightness and full of sense of light.Top Feature of JT-UVDTF-60R UV DTF Printer
- The curved surface plane can be transferred, and the transfer effect is good.
- 3 printing nozzles to realize white + CMYK + varnish multi-layer printing.
- Support hot stamping gold and silver, can achieve high gloss and high luxury customized effect.
- Printing with a sense of hierarchy, 3D relief sense of visibility, and tangibility.
- Efficient printing, stable output, cut-resistant, colorfast.
 |
 |
 |

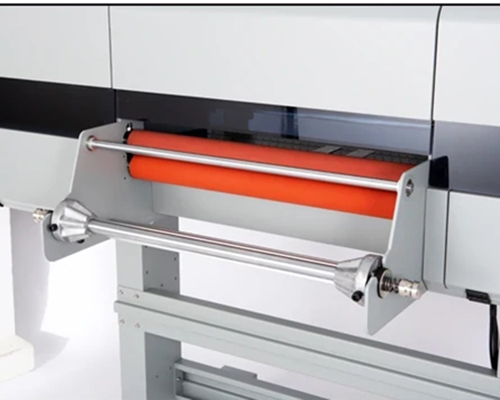

Automatic feeding and winding device
Automatic uv dtf printing film feeding, laminating, rewinding all in one. |

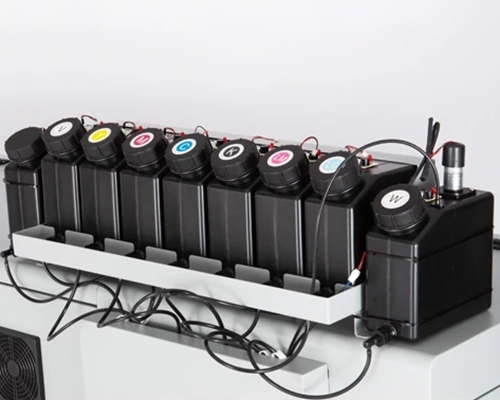

Large capacity ink bottles
Equipped with ink shortage packaging, real-time monitoring of ink volume and other systems to ensure long-term printing output. |
High quality servo motor
Smooth transmission and more stable printing. |
 |
 |
 |

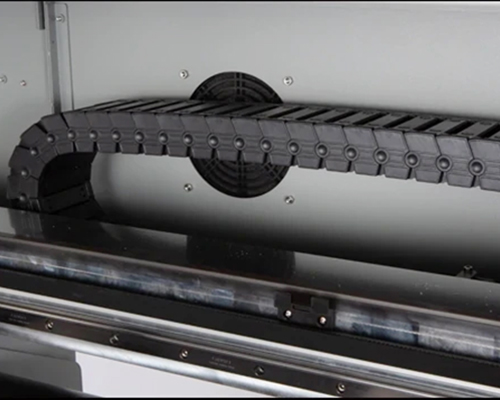

Imported tank chain
Printing is more stable, wear-resistant and durable, long service life, high-performance cable drag chain system. |

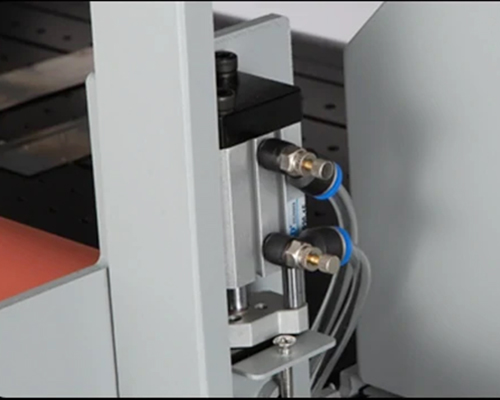

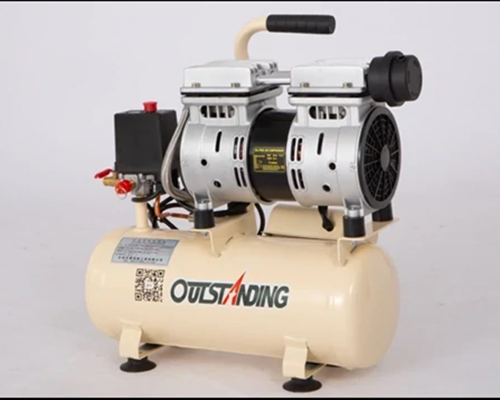

Independent air
Independent air compressor for Vaccum adsorbtion flatbed. continuous and stable work, placing materials to scratch the print head |

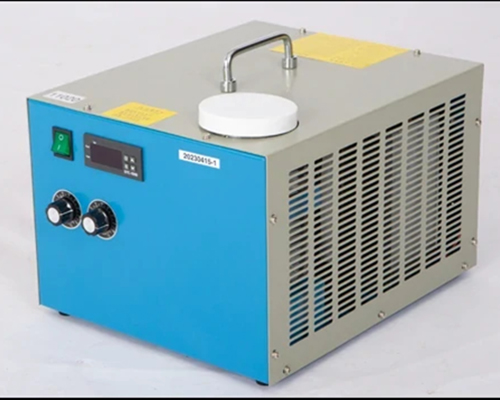

Quality water-cooling box
Independent high quality LED UV Lamp water-cooling system, dual group cooling.
Print quality is more stable, cooling is uniform, not affected by the environment, and noise is low. |
 |
JT-UVDTF-60R using Epson I3200 print heads. It is an economical printhead, designed as a oil-based head. The price is very cheap, the stability is moderate and it is widely accepted by the market. It is mainly used for small environmentally friendly solvent ink printers or roller UV printers. |
| Model |
i3200-U1 |
| Ink Type |
Oil – based ink |
| Size(width x depth x height)(mm) |
69.1×59.4×35.6 |
| Weight (g) |
82 |
| Nozzle Numbers |
3200 |
| Length Between Nozzles(inch) |
1/300(in one row) |
| Nozzle Row |
8 row |
| Max color/head |
4 colors |
| Resolution |
300 npi/1 row 600 npi/2 rows |
| Effective Printing Width(mm) |
33.8 |
| Jet Freqency(kHz) |
43.2 (single dot), 21.6 (multi dot) |
| Ink Drops(pl) |
3.8-6-12(9.4) |
| Ink Viscosity(mPa.s) |
3~4 |
| Brand |
Jingtong Industry |
| Item Model |
JT-UVDTF-60R |
| Print Nozzle |
Using epson print head, including 400 nozzles/ row*8*lines*4, high quality up to 1800dpi |
| Print Accuracy/Speed |
720*720DPI; 4 Pass 6.5-10㎡/h
720*1080DPI; 6 Pass 5.8-7㎡/h
720*1440DPI; 8 Pass 8㎡/h |
| Ink |
Sort |
UV |
| Water based ink/ Eco solvent ink, Water rased ink; Dye ink, Sublimation ink |
| Capacity |
5 Colors: 1.5L*7/color |
| Media |
Maximum Width |
600mm |
| Thickness |
1.5mm to 6mm adjustable |
| Max Roll Weight |
20KG |
| Sort |
UV-DTF |
| High Printing Quality |
Three intelligent eclosion print function; VSD technology |
| Media Heater |
Pre/Post Heater (Can be controlled separately) |
| Print Interface |
USB 2.0 |
| RIP Software |
Maintop6.0, Photoprint, Print Factory |
| Voltage |
AC110V+/- 10%. AC220V+/-10%、50/60+/HZ |
| Operating Environments |
Temperature: 20°C-35°C; Humidity: 35%RH-65%RH |
| Power |
200W for drawing and 450W for heating in front, middle and back |
| Dimensions Of Printer(LxWxH) |
1900*880*1600mm |
| Dimensions Of Packing(LxWxH) |
1980*1325*820mm, |
| Height Of Worktable |
1062mm |
| Net Weight |
242KG |
| Gross Weight |
300KG |
 |
 |
 |
 |
| Traditional Chinese Style Insulated Mug |
Customized Ceramic Mugs |
Silver Stamping Butterfly Phone Case |
Silver Stamping Gift Boxes |
 |
 |
 |
 |
| Hot Stamping Silver Plastic Cups |
Cool And Trendy Skateboarding |
Special Supply Glasses |
Tourist Attraction Souvenir Badges |
 |
 |
 |
 |
| Toddler Cartoon Luggages |
Golf Balls Free Definition |
Hot Stamping Business Cards |
Plastic Neutralizer Pens |
This machine is used for UV DTF sticker printing, allowing you to print designs on UV DTF film and transfer them onto hard or irregular surfaces such as plastic, metal, glass, wood, acrylic, ceramics, and more.
2. What is the maximum printing width?
The printer supports up to 24 inches (60 cm) printing width, suitable for larger stickers, logos, decals, and commercial UV DTF applications.
3. What does “transfer to any shape” mean?
UV DTF stickers can be applied to flat, curved, cylindrical, and uneven surfaces without heat pressing, making them ideal for bottles, cups, phone cases, promotional items, and signage.
4. Does the printer support white ink and varnish?
Yes. The printer supports CMYK + White + Varnish, enabling strong color opacity on dark materials and optional glossy or textured surface effects.
5. Is lamination required for UV DTF printing?
Yes. UV DTF printing uses AB film lamination, where the printed A film is laminated with B film to create a ready-to-apply sticker with strong adhesion.
6. What materials can the stickers be applied to?
UV DTF stickers can be transferred onto:
• Plastic
• Glass
• Metal
• Acrylic
• Wood
• Ceramic
• Leather
No heat press is required.
7. Is this printer suitable for commercial production?
Yes. With its 24-inch width and stable UV output, it is suitable for custom sticker businesses, promotional product factories, and medium-to-high volume production.
8. What software is required?
The printer works with professional UV RIP software to control color output, white ink layers, and varnish effects. A Windows-based system is typically required.
9. What maintenance does the printer require?
Routine maintenance includes:
• Regular nozzle checks
• Printhead cleaning
• Proper UV ink circulation
• Keeping the lamination and film path clean
10. What is the warranty?
Jingtong machines come with a one-year warranty, except for the print head. During the warranty period, we will send some parts for replacement free of charge, and damaged parts should be returned promptly.
