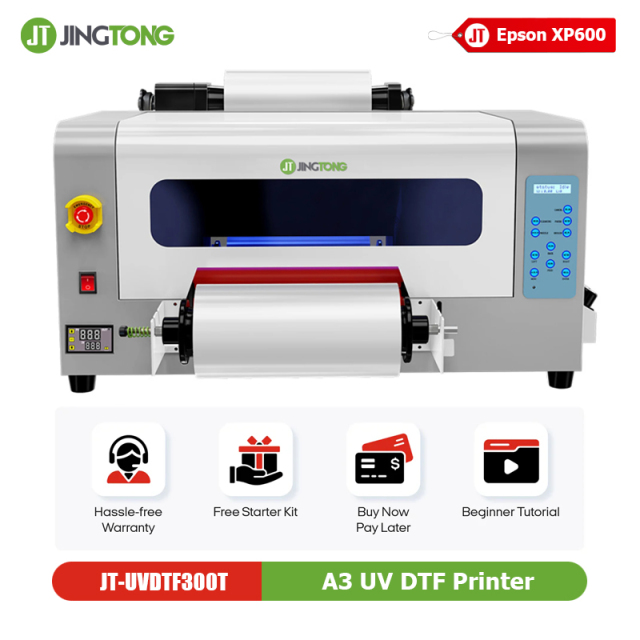

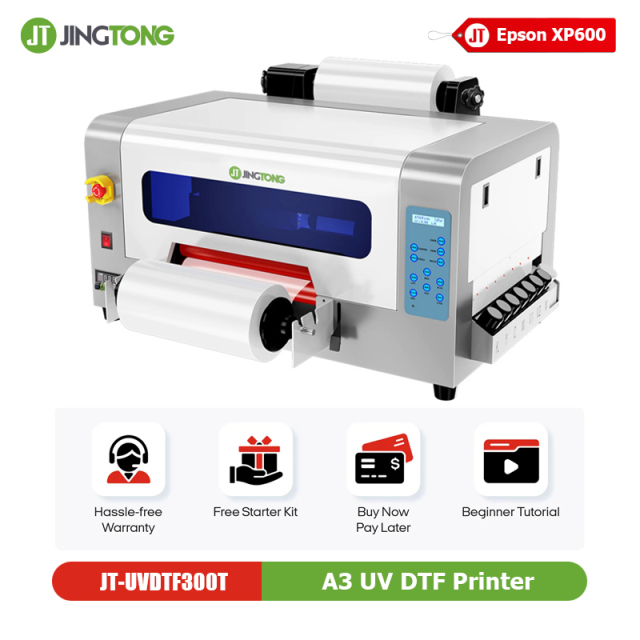

Designed for efficient UV transfer production, the Jingtong A3 UV DTF Printer prints directly onto special transfer film and applies the finished graphics to a wide range of hard surfaces. It supports CMYK + White + Varnish printing in one workflow and is compatible with both standard UV DTF film and decorative gold/silver stamping applications. With its compact footprint and reliable operation, it is well suited for print shops, advertising companies, gift manufacturers, and small-to-medium production facilities.
Product Highlight
Multi-Functional, High-Luxury Customization
- Multi-Layer Printing & 3D Relief Effect: Supports W+CMYK+W+Varnish multi-layer printing to produce vibrant colors with premium 3D embossed and textured effects.
- Broader Application Flexibility: UV DTF transfers can be applied to curved, irregular, or hard-to-print surfaces, expanding customization possibilities beyond direct UV printing.
- Premium Gold & Silver Stamping: Supports gold and silver stamping programs to create luxurious, high-gloss finishes for premium branding and custom products.
- High-Performance UV Inks: Uses eco-friendly UV inks with vivid color reproduction, strong adhesion, and UV curing for durable, long-lasting results.

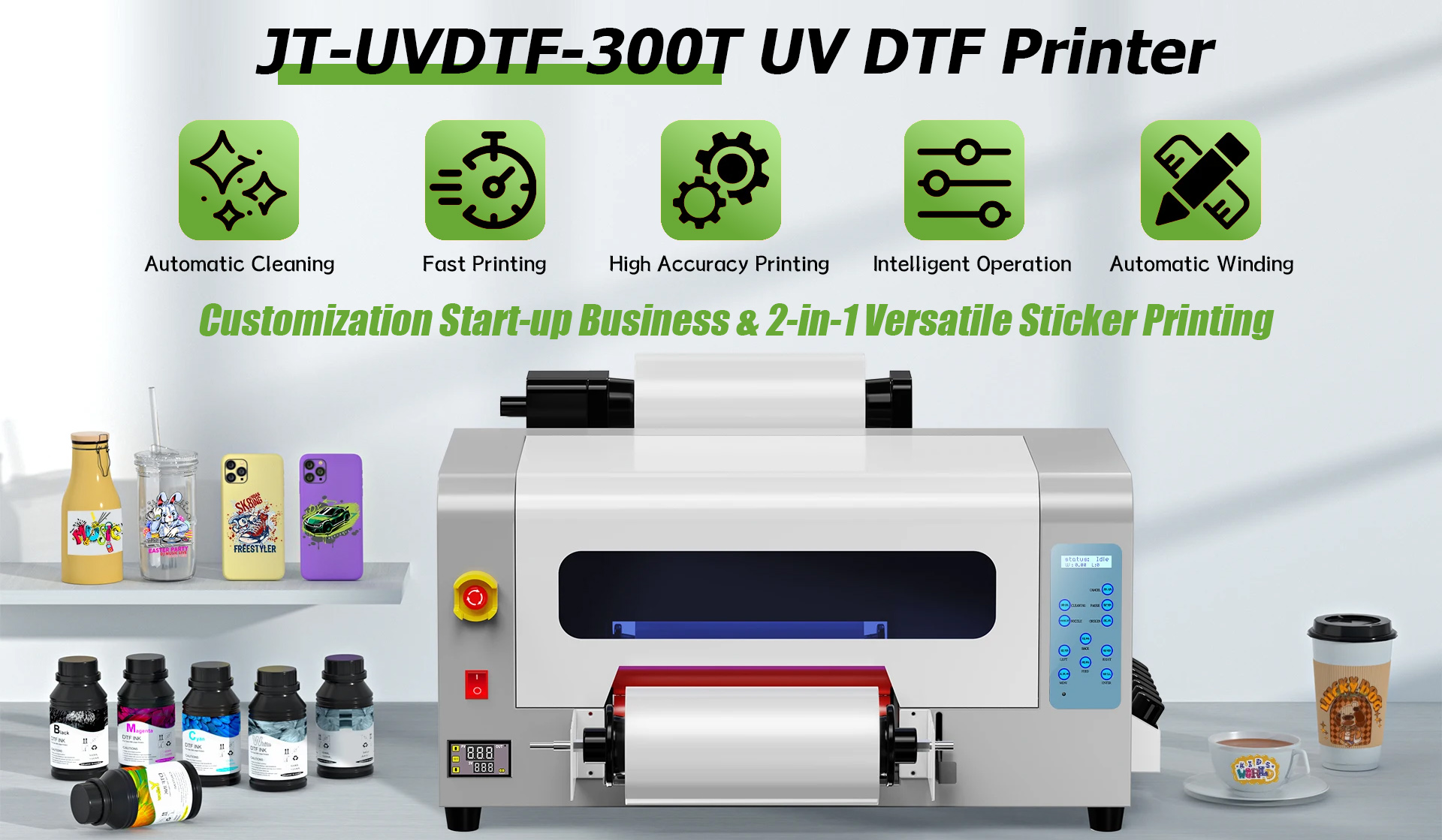

Feature of JT-UVDTF-300T UV DTF Printer
 |
 |
 |
 |

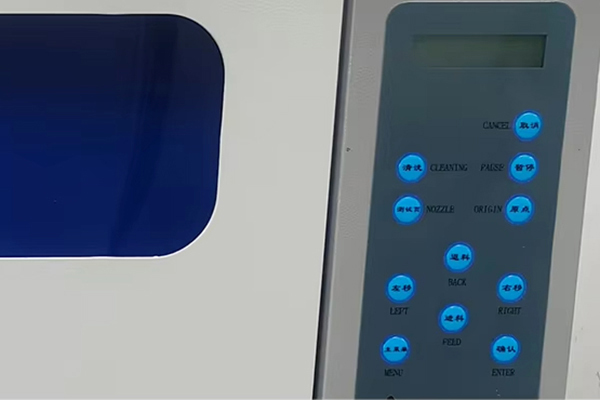

Intelligent Control Panel
The operating buttons are clear and concise, making it easy for technicians to operate and handle printing needs more quickly and efficiently. |

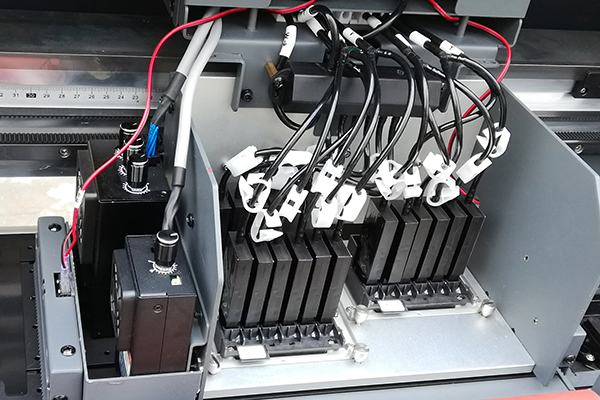

Nozzle Heating System
The printhead heating system ensures that the printhead can still be used normally in a low-temperature environment, ensuring the flow of ink. |

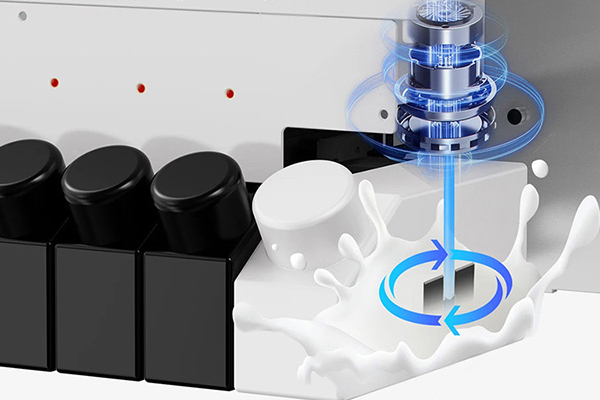

White Ink Stirrer and Circulation
The white ink agitator continuously agitates during the printing process, and the white ink circulation system, effectively prevents white ink from clogging the printheads. |

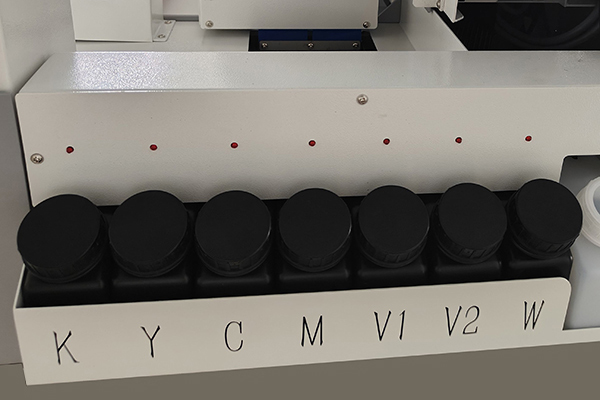

Ink Cartridge Shortage Alarm
The lack of an ink alarm system can effectively remind the staff to add ink in time to avoid the lack of ink affecting the printing process. |
 |
 |
 |
 |

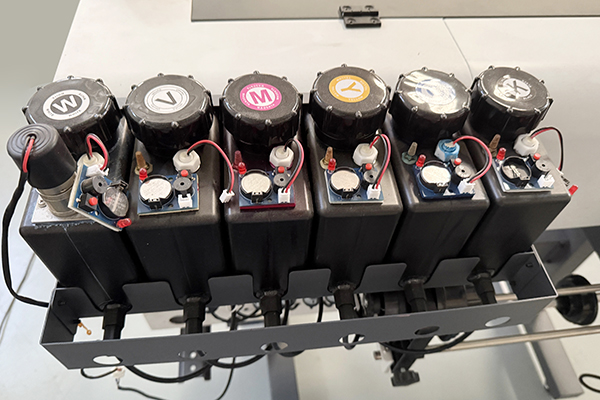

Ink Supply System
With a large ink cartridge, the Jingtong A3 UV DTF printer can print patterns with bright colors. In the printing process, the white and colorful inks as well as varnish output simultaneously, making the production more convenient. |
UV Lamp Curing System
The UV lamp curing system ensures fast and reliable ink curing, supporting multi-layer printing and stable image formation on UV DTF film. |
Automatic Cleaning
The operation is simple and easy to understand, and the LED display data is more accurate |
Reel Heating System
Reel heating helps to accelerate ink drying during the printing process, while the unit can support printing and laminating in one for greater efficiency. |
|
Product Model
|
JT-UVDTF-300T
|
|
Printhead
|
Dual XP600 Printheads
|
|
Plate Type
|
Roll-to-Roll Printer
|
|
Control Type
|
Hoson
|
|
RIP Software
|
RIIN/MainTop
|
|
Ink Type
|
UV Curing Ink
|
|
Printing Color
|
CMYK + W + Varnish
|
|
Printing Width
|
300mm
|
|
Print Precision
|
720X1440DPI
|
|
Printing Material
|
Flex
|
|
Print Speed
|
Full A3 Size 6minutes
|
|
Power
|
450W
|
|
Voltage
|
110V-220V
|
|
Operating Environment
|
10-35ºC, 50-80RH
|
|
Computer System
|
Windows 10 Or Below
|
|
Data Transfer Port
|
Gigabit network port ethernet lab cable
|
|
Printer Dimension
|
95*81*50CM
|
|
Packing Size / Gross Weight
|
105*90*55CM / 117kg
|
|
Dimensions(l*w*h)
|
79*39*32cm
|
 |
1. Import the artwork into RIP software.
2. Print CMYK, White, and Varnish onto UV DTF Film A.
3. Laminate with Film B automatically.
4. Peel the release layer.
5. Apply the design to the target surface.
6. Press firmly and remove the carrier film. |
 |
1. Prepare artwork with metallic effect areas.
2. Print using compatible gold or silver stamping media.
3. Complete the lamination process.
4. Cut and position the transfer.
5. Apply it to the product surface.
6. Peel off the carrier film to reveal the metallic decorative effect. |
 |
 |
 |
 |
| Cool And Trendy Skateboarding |
Customized Ceramic Mugs |
Golf Balls Free Definition |
Hot Stamping Business Cards |
 |
 |
 |
 |
| Hot Stamping Silver Plastic Cups |
Plastic Neutralizer Pens |
Silver Stamping Butterfly Phone Case |
Silver Stamping Gift Boxes |
 |
 |
 |
 |
| Special Supply Glasses |
Toddler Cartoon Luggages |
Tourist Attraction Souvenir Badges |
Traditional Chinese Style Insulated Mug |
Q1: What printheads does this printer use?
The standard configuration includes dual Epson XP600 printheads, with an optional upgrade to dual Epson i1600-U1 printheads for improved productivity.
Q2: What is the printing speed?
The printer offers a production speed of approximately 1.2–1.8 square meters per hour, depending on print mode and image coverage.
Q3: Does it support white ink and varnish?
Yes. It supports simultaneous CMYK + White + Varnish printing for rich colors and premium glossy effects.
Q4: Can it produce gold and silver decorative transfers?
Yes. The printer is compatible with gold and silver stamping workflows, allowing users to create metallic decorative graphics and premium labels.
Q5: What materials can the transfers be applied to?
UV DTF transfers can be applied to glass, acrylic, metal, plastic, ceramic, wood, leather, and many other smooth, hard surfaces.
Q6: Is it suitable for small businesses?
Absolutely. Its compact A3 size and efficient production capability make it ideal for startups, custom gift businesses, print shops, and online sellers.
Q7: Does it require pretreatment before application?
In most cases, no pretreatment is required. The target surface should simply be clean and dry before applying the transfer.
Q8: How durable are the finished transfers?
Properly applied UV DTF transfers offer excellent adhesion, scratch resistance, water resistance, and long-lasting color performance.
Q9: What maintenance is recommended?
Routine nozzle cleaning and maintaining the white ink circulation system help ensure stable performance and extend printhead life.
Q10: Do you provide technical support and OEM services?
Yes. We provide remote technical support, operation guidance, spare parts supply, and OEM/ODM cooperation for global partners.
