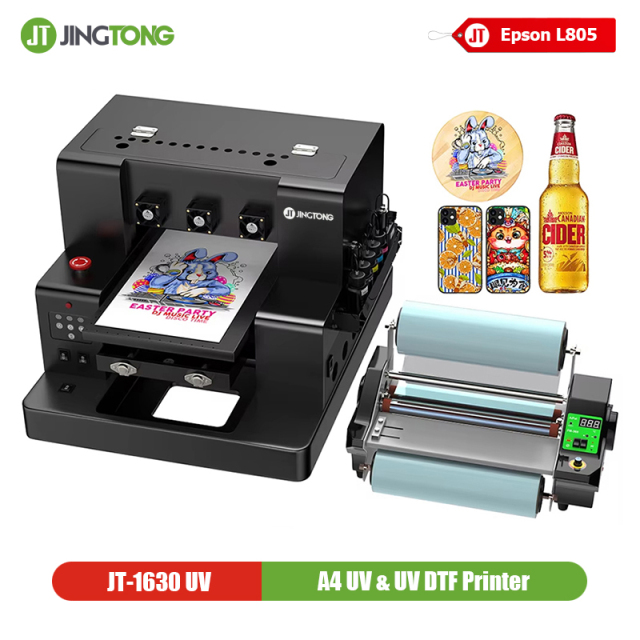

A4 L805 UV Flatbed Printing Machine UV DTF Label Printer

No.JT-1630 UV
JT-1630 UV UV Printer, the best choice for starting small business! This A4 small size UV Flatbed Printer installed 1 piece EPSON L805 printhead, can print white ink, color inks, and Vanish at the same time continually without blocks, suitable for most flat and round materials.
Technical Highlights:
Print Head: EPSON L805 / EPSON XP600

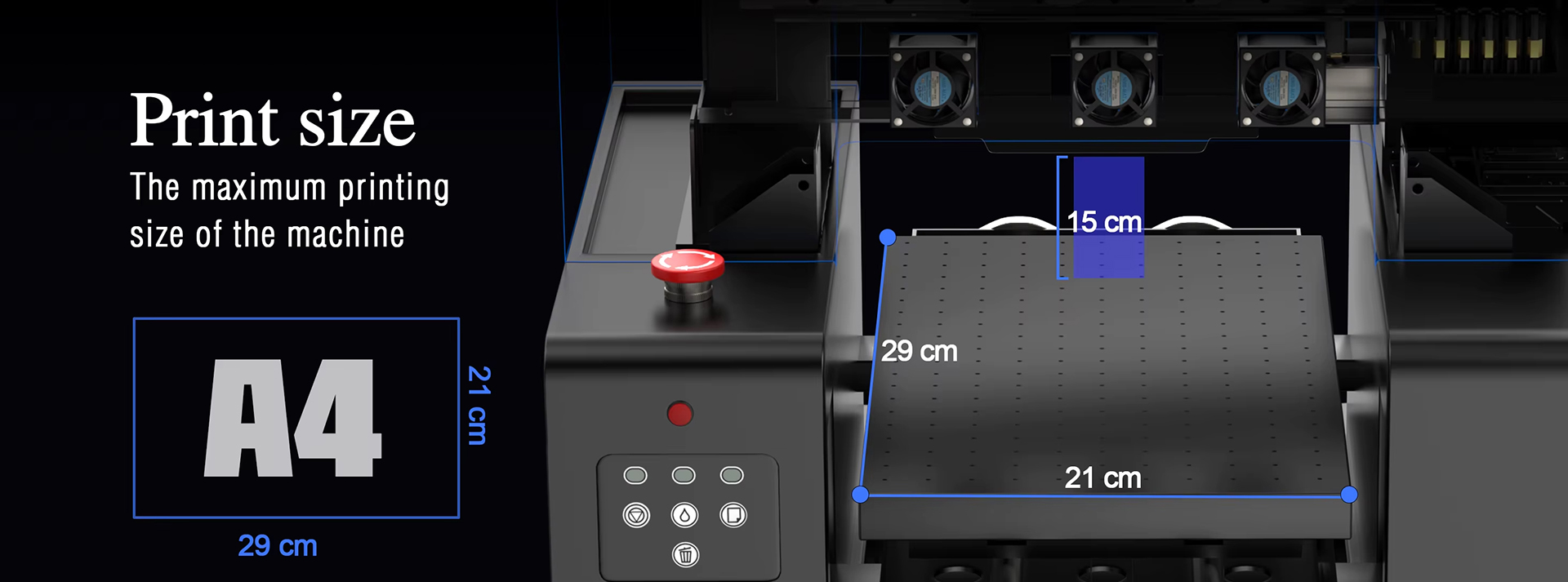

Max Print Size: 200mm*300mm
Print Speed: Approx.178 seconds (Photo mode)
Ink Type: ECO-UV Curing Ink
Print Mode: C, M, Y, K+LC, LM / C, M, Y, K+W+W / C, M, Y, K+W+Varnish


Warranty: 24 months (Ink system, printheads and ink capping are not covered)
International Shipping: DHL,FedEx,By Air,By Sea

Description



This JINGTONG A4 L805 UV Flatbed Printing Machine features a white ink blending system, automatic cleaning function to prevent clogging and protect the printer. It can also print varnish effects, and has the characteristics of being waterproof, UV-resistant, and scratch-resistant, giving your print works a more professional look. Additionally, the printer supports embossed printing, giving your designs a raised, professional finish.
This UV printing machine is a popular choice for creating custom designs on a wide range of flat products (within 150mm in height or thickness), including phone cases, pens, USB dongles, CDs, metal and wooden plaques, wallets, passport holders, belts, ceramic tiles and many more.

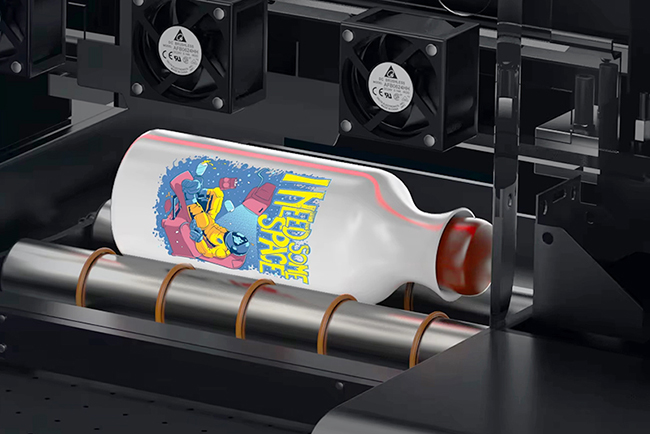

The printer also supports cylindrical printing, and comes with a bottle holder for a smooth and hassle-free printing on bottles and cans.

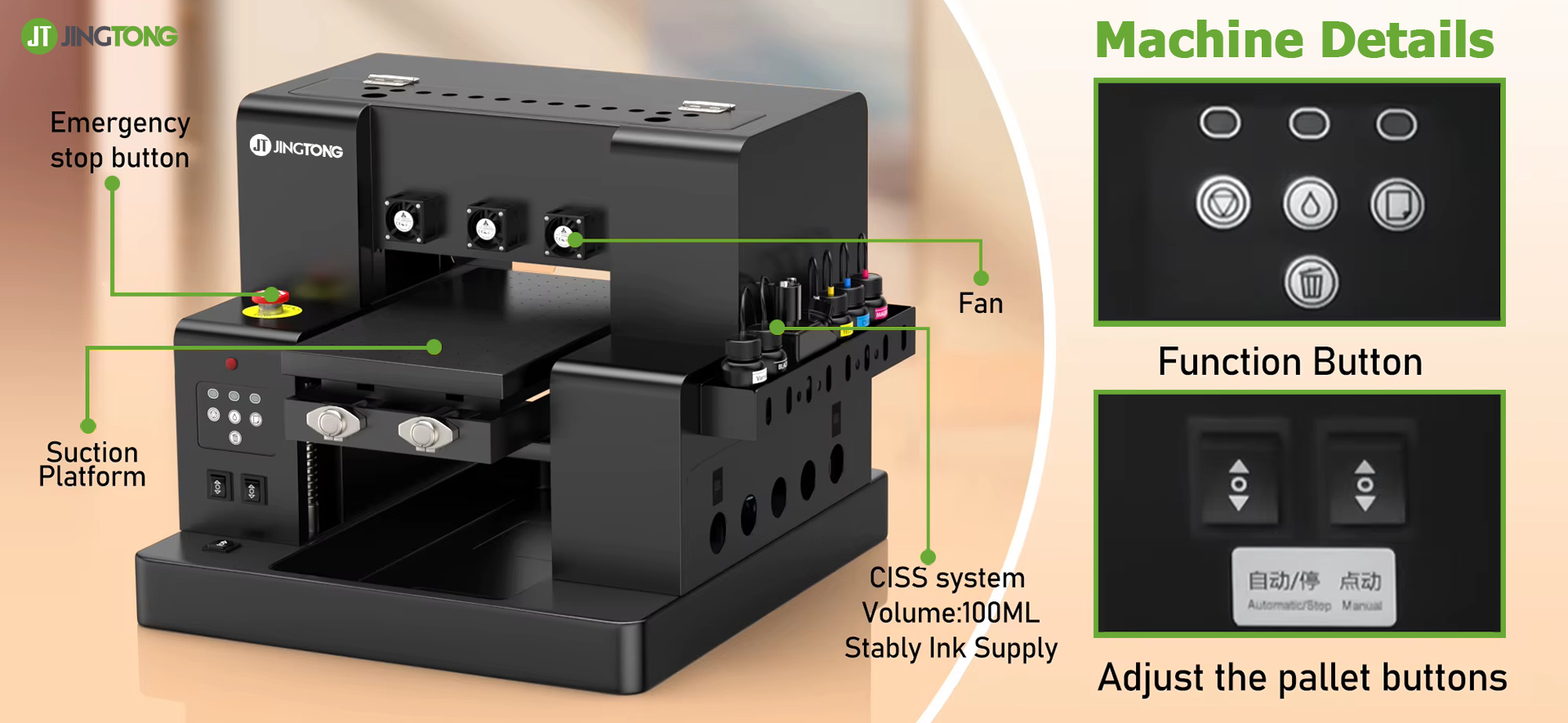

Features

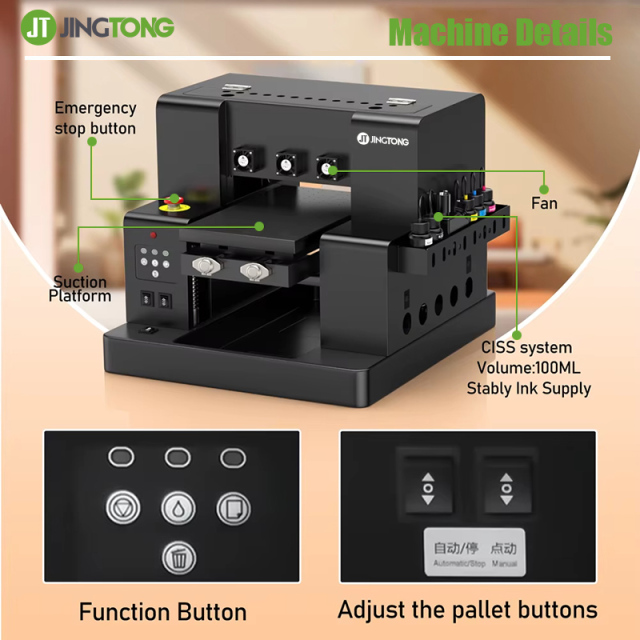

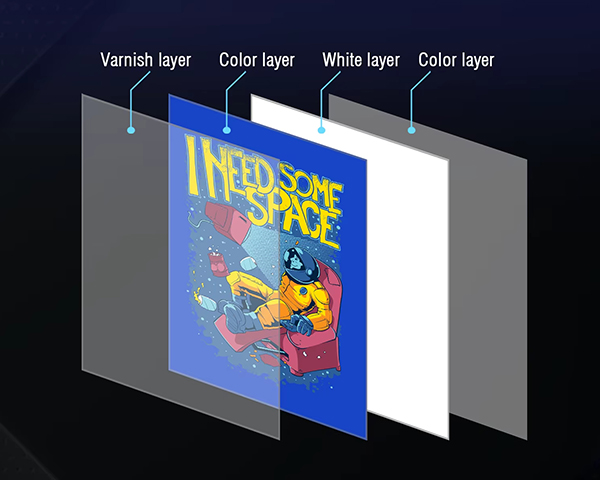

  • Printing White and Color at the Same Time - Enables vibrant and detailed designs on both transparent and dark materials, saving time and expanding design possibilities.

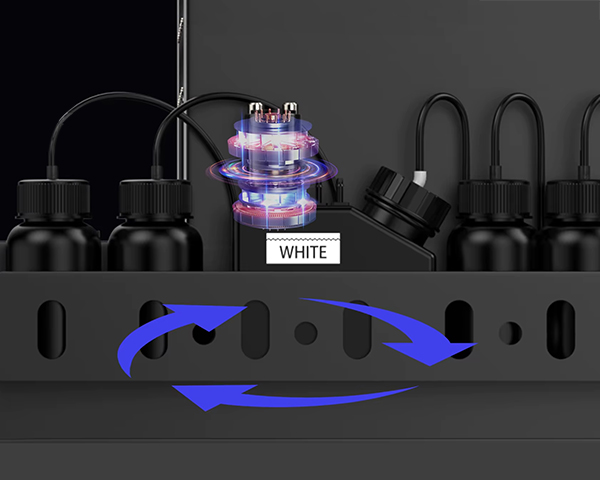

  • White Ink Mixing - Designed to help keeping the ink mixed and preventing settling, ensuring a smooth and even flow of ink during printing.

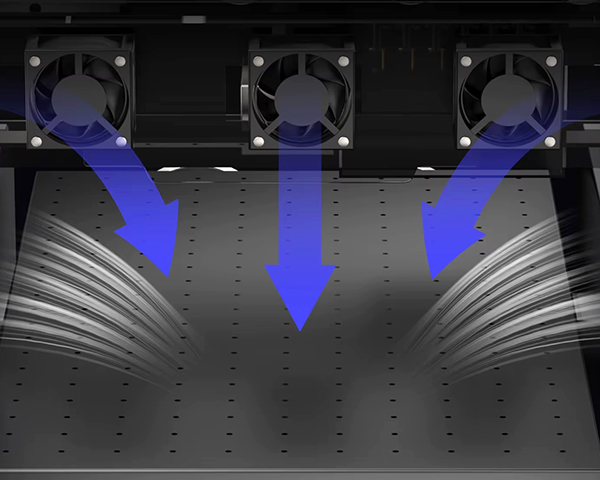

  • 3 Large Fans - The printer is equipped with 3 large fans, which help to effectively minimize printing failure rates and prevent ink misting, leading to more reliable and efficient printing outcomes.
  • Automatic / Manually Adjustable Print Height - Allows users to easily adjust the distance between the printhead and the material surface, either automatically or manually, accommodating various material thicknesses.
  • Safety Stop Button - A quick and accessible way for users to immediately halt the printing process in case of emergencies or unexpected issues, ensuring safety and preventing potential accidents.

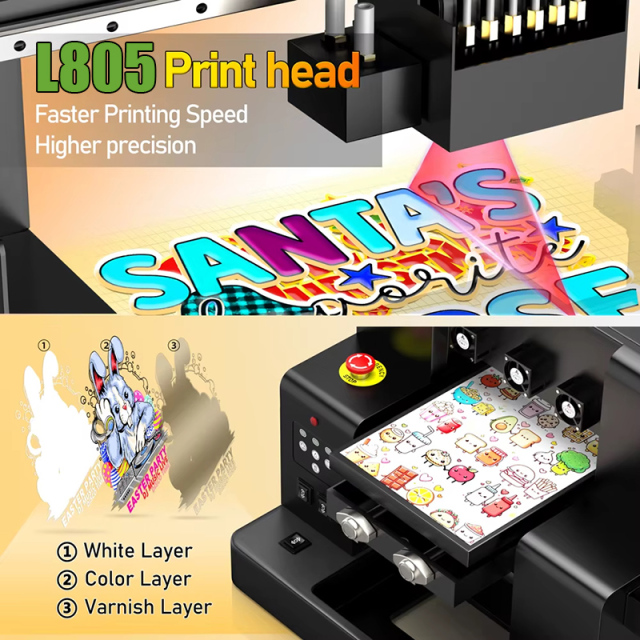

  • 6-Color Epson L805 Printhead for Stunning Color Accuracy - Utilizing the epson L805 6-color printhead, this printer offers high-speed, high-quality results with a resolution of 1440 x 2880 DPI. The CMYK+WW 6-color system delivers vivid, consistent colors, making it perfect for printing on a variety of materials, including phone cases, bottles, acrylic, crystal, leather, plastic, metal, PVC, ABS, stone, tiles, KT boards, wood, and foam boards.
Suction Platform System White Ink Mixing System Amazing Print Effect
Absorb the object or UV dtf film onto the platform Prevent the printhead from scratching with the film and causing printhead damage. Ensure ink flow fluently and evenly, to prevent white ink from precipitation. Support Varnish and 3D embossing effect Print both glossy and matte effect By printing multi-layer to achieve 3D embossing raised effect.

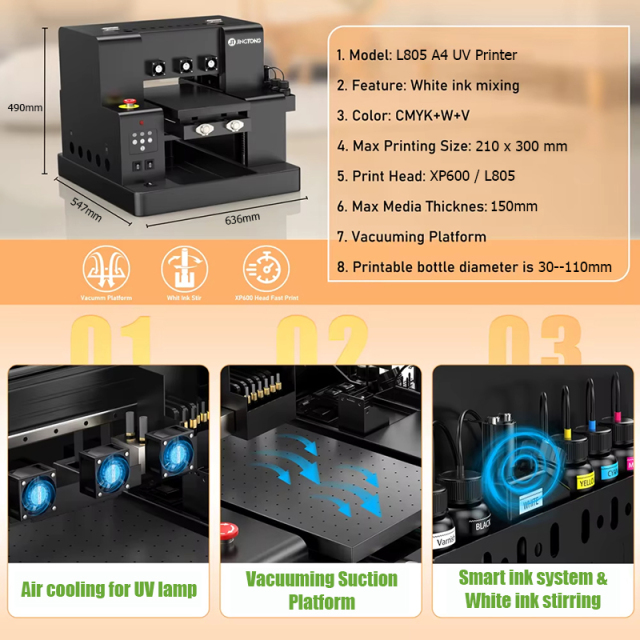

Specification
Basic information Printer name A4 UV flatbed+Bottle printer A3 UV flatbed +Bottle printer
Model name JT-1630 UV JT-3250 UV
Print flatbed Size Width210mm*length300mm*Height150mm Width330mm*length500mm*Height150mm
Vacuum adsorption flatbed size Available Available
Height adjustment AUTO height detecting for flatbed item printing, manual adjust for bottle printing
Uv lamp effective curing area Width200mm*length300mm Width320mm*length500mm
Maximum bottle printing size length205mm, Diameter110mm length 320mm, Diameter110mm
Bottle dia available for printing 30--110mm 50--110mm
Printhead Technology Advanced micro piezo inkjet technology
Ink drop Volume 1.5PL
Print head EPSON L805 or EPSON XP600
Printer driver EPSON L805 EPSON L1800
Resolution (software setting) 1440*1440dpi
Printhead life 6-12 months depending on the maintenance and using circumstance
Inkjet distance < 5mm
Print Speed Photo mode: approx. 178 seconds
Speed compared to Original Epson L1800 Same speed
Ink system Ink type UV curing ink (hard ink/ neutrual/soft ink)
Color Configuration of printing CMYK LC LM /CMYK+2W/CMYK+WV (6 colors)
Ink tank 150ML
Ink supply Continual ink supply system (CISS)
White ink stirring system Manual Automatic
Working condition Temperature 15ºC~ 28ºC (59ºF~86ºF), Humidity 30%-70%
Voltage 110V-220V, 250W
Plug available Chinese Plug/US Plug/UK Plug/Europe Plug/India Plug
Size & weight Printer size(L*W*H) 636mm*547mm*490mm 760mm*630mm*510mm
Net Weight of printer 31.9KG 51KG
Size of package(L*W*H) 700mm*565mm*530mm 910mm*590mm*695mm
Gross weight 43kg 68KG
Package type Inside foam protection, outside Ply-wood steel frame package
Software AcroRIP White ver9.0(sent as gift) AcroRIP White ver10.3(sent as gift)
Computer config Computer operating system Windows system WIN 10/11 recommended
Computer processor prefered INTEL AMD
Computer storage RAM>8G
Print Interface USB2.0 high speed

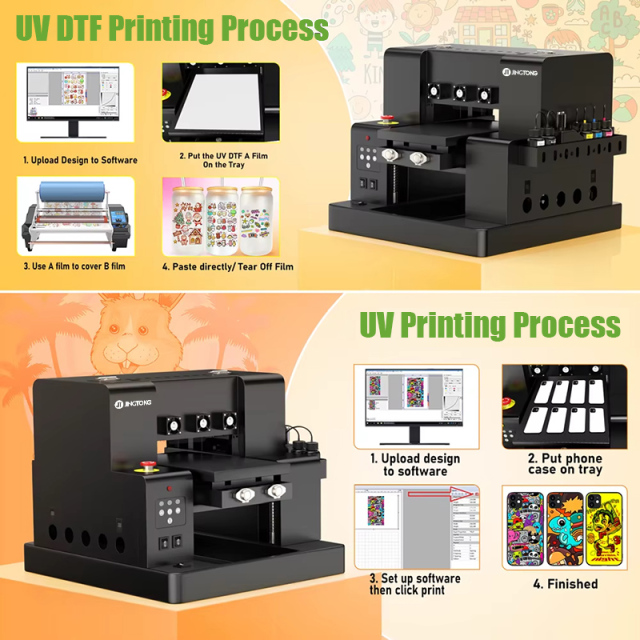

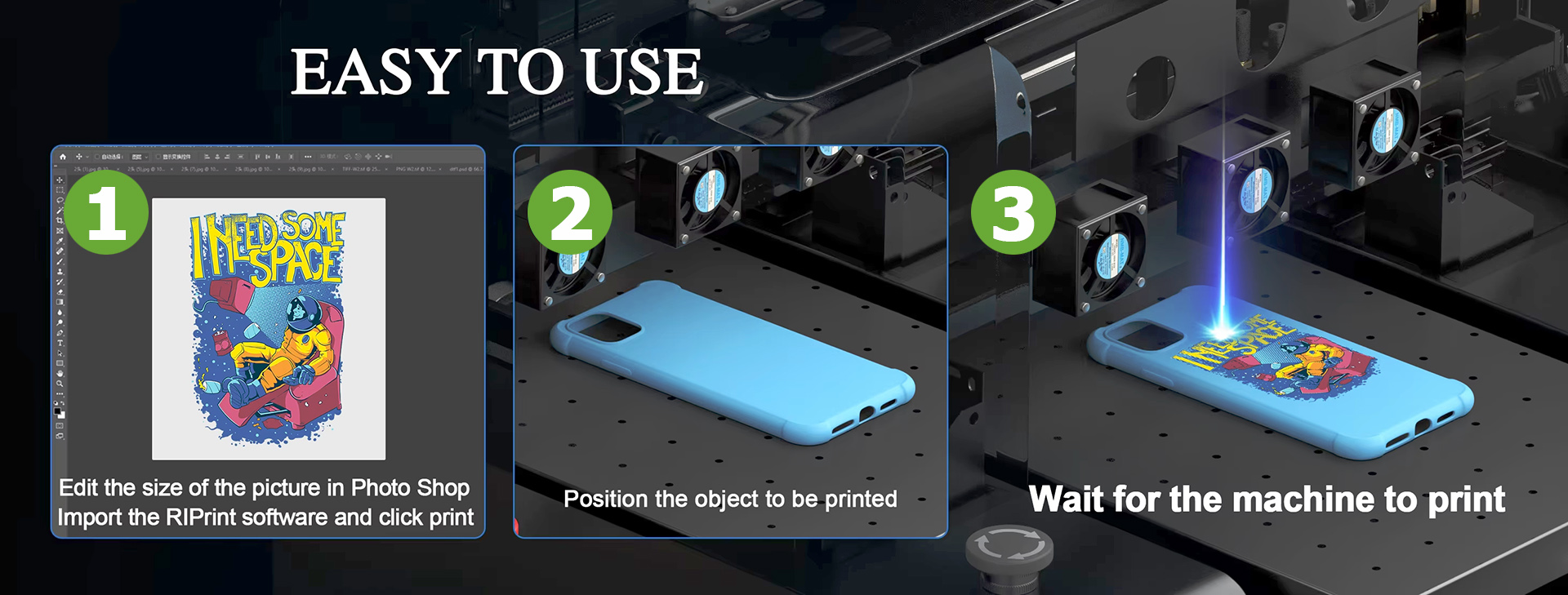

Three Printing Methods

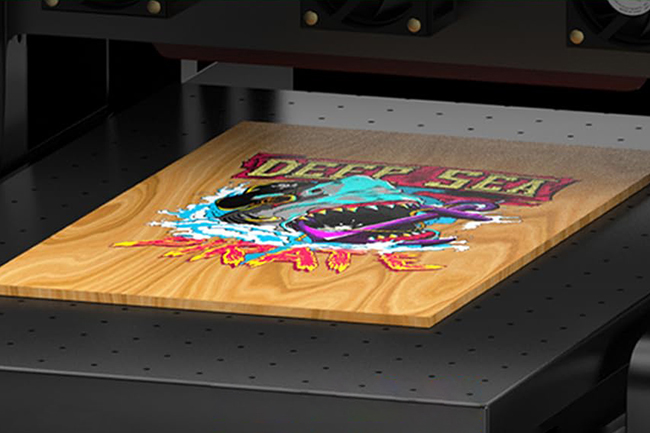

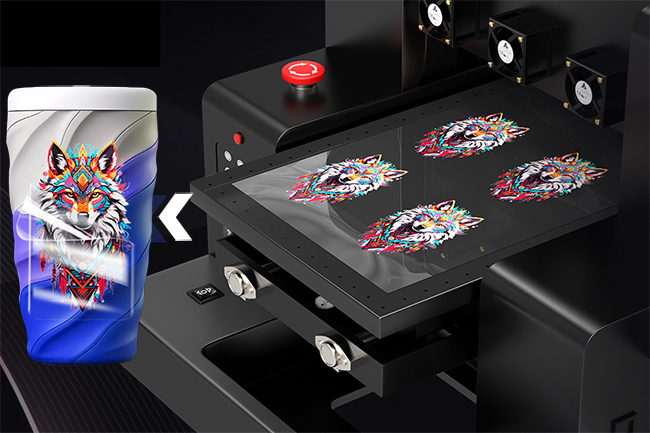

UV DTF Sticker Print Flatbed Printing Cylinder Printing
Prints designs onto UV DTF film for easy transfer onto irregular or curved surfaces, offering strong adhesion and vivid colors. Direct UV printing on flat and rigid materials like acrylic, wood, glass, and metal with durable, vibrant results. Designed for direct printing on cylindrical objects such as bottles, cups, and tubes with precise alignment and smooth output.

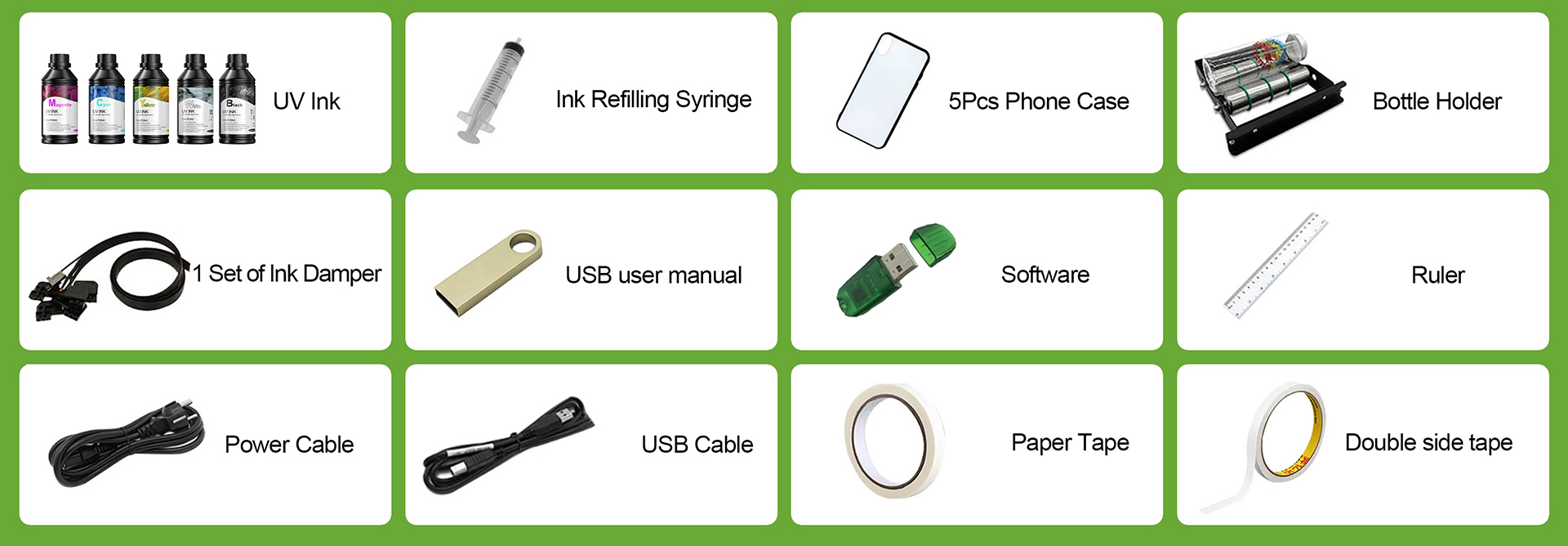

Accessories


Application of Jingtong A4 UV Printer
It is suitable for printing on various surfaces, such as phone cases, bottles, acrylic, crystal, leather, plastic, metal, PVC, ABS, stone, tiles, KT board, wood, foam board, and any other flat surfaces.
