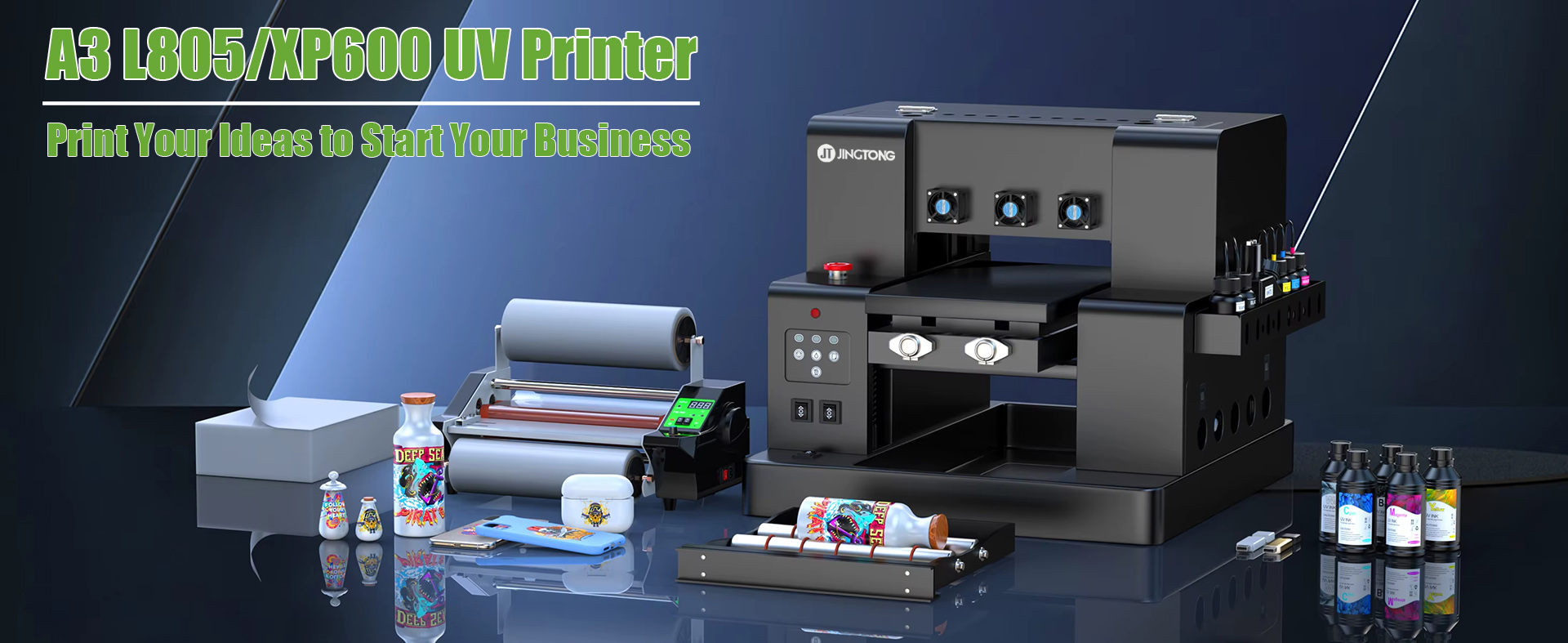

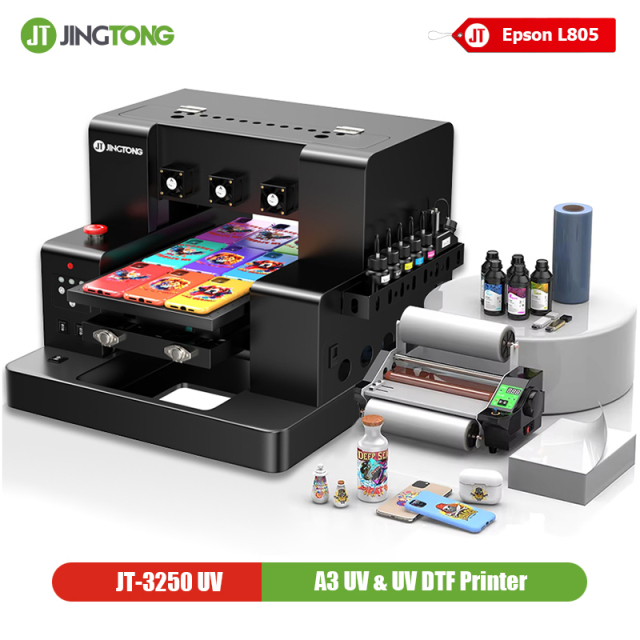

This A3 UV printer JT-3250 UV is one of our best selling small-sized desktop versatile printing machine. This UV flatbed printer provides you with chances to customize things like phone case, stone plate relief, wallpaper, or purse. It can be a printer on wood, acrylic, tile, U disk, CD, crystal, aluminum sheet, PVC, ABS, stone, KT board, foam board and so on.
The UV Flatbed Printing Machine features a white ink blending system, automatic cleaning function to prevent clogging and protect the printer. It can also print varnish effects, and has the characteristics of being waterproof, UV-resistant, and scratch-resistant, giving your print works a more professional look. Additionally, the printer supports embossed printing, giving your designs a raised, professional finish.

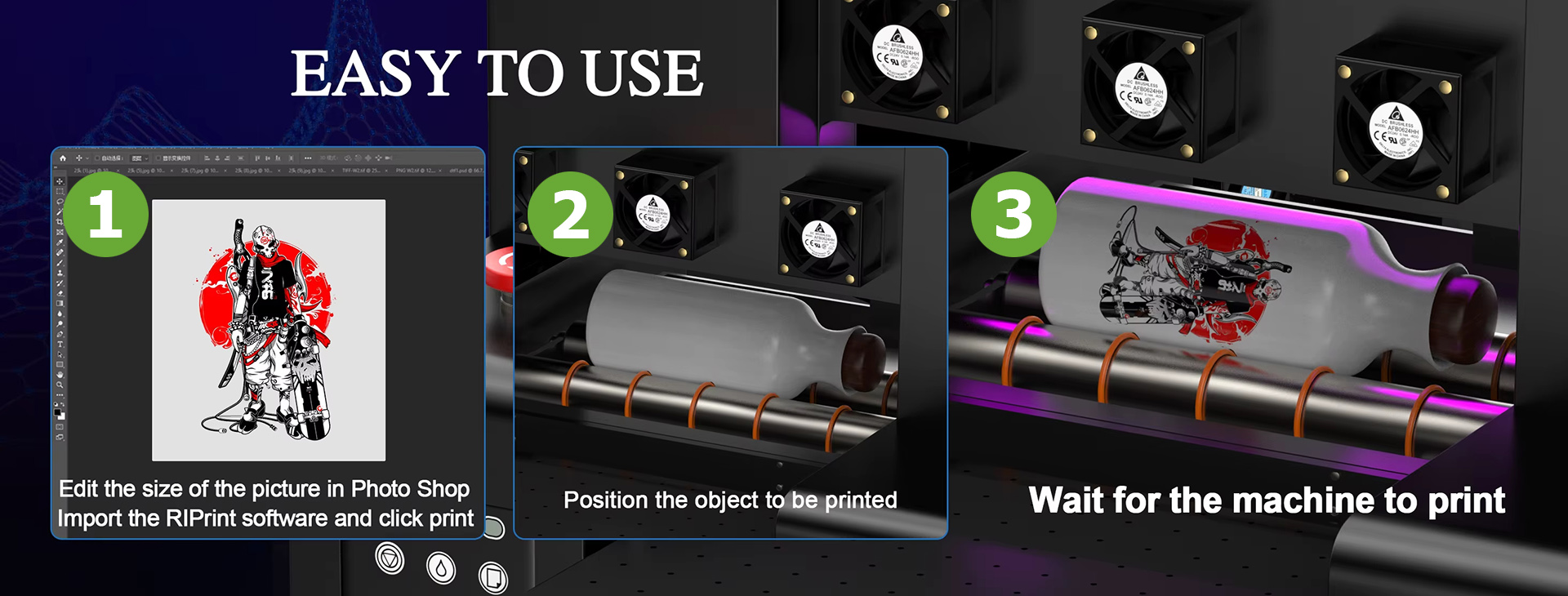

The printer also supports cylindrical printing, and comes with a bottle holder for a smooth and hassle-free printing on bottles and cans.

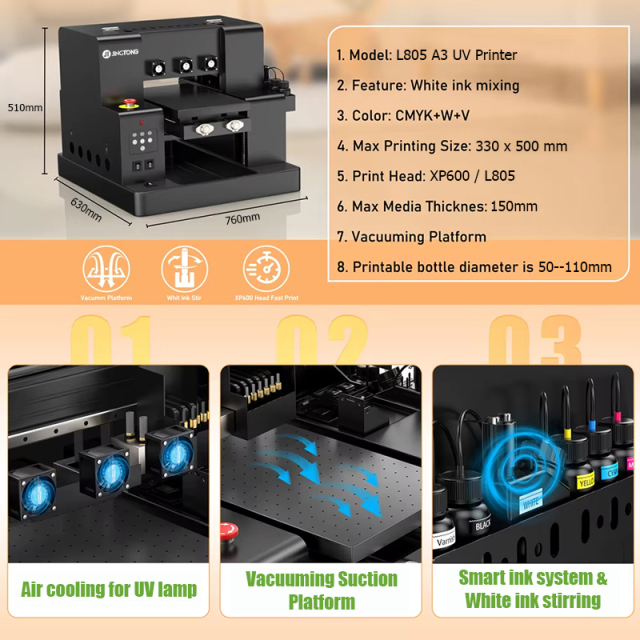

Features

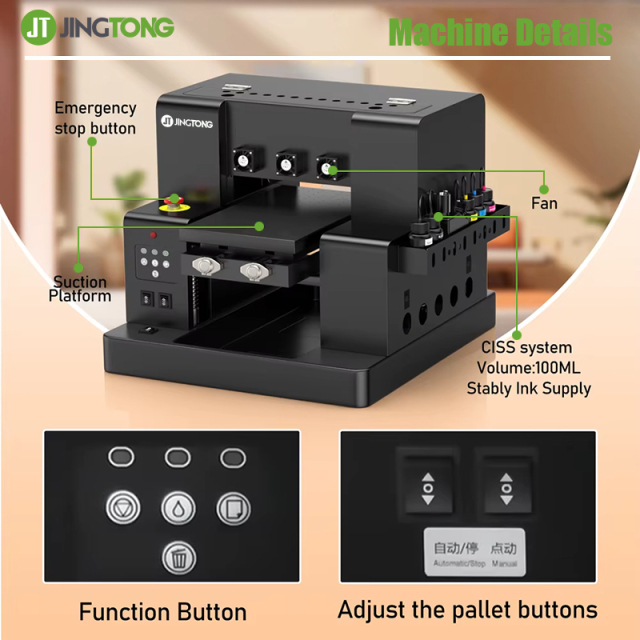

- Printing White and Color at the Same Time - Enables vibrant and detailed designs on both transparent and dark materials, saving time and expanding design possibilities.
- White Ink Mixing - Designed to help keeping the ink mixed and preventing settling, ensuring a smooth and even flow of ink during printing.
- 3 Large Fans - The printer is equipped with 3 large fans, which help to effectively minimize printing failure rates and prevent ink misting, leading to more reliable and efficient printing outcomes.
- Automatic / Manually Adjustable Print Height - Allows users to easily adjust the distance between the printhead and the material surface, either automatically or manually, accommodating various material thicknesses.
- Safety Stop Button - A quick and accessible way for users to immediately halt the printing process in case of emergencies or unexpected issues, ensuring safety and preventing potential accidents.

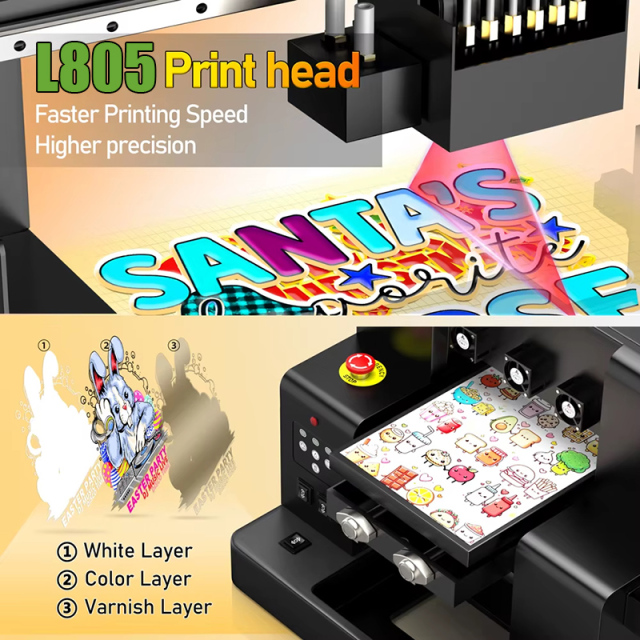

- 6-Color Epson L805 Printhead for Stunning Color Accuracy - Utilizing the epson L805 6-color printhead, this printer offers high-speed, high-quality results with a resolution of 1440 x 2880 DPI. The CMYK+WW 6-color system delivers vivid, consistent colors, making it perfect for printing on a variety of materials, including phone cases, bottles, acrylic, crystal, leather, plastic, metal, PVC, ABS, stone, tiles, KT boards, wood, and foam boards.
 |
 |
 |
| Suction Platform System |
White Ink Mixing System |
Amazing Print Effect |
| Absorb the object or UV dtf film onto the platform Prevent the printhead from scratching with the film and causing printhead damage. |
Ensure ink flow fluently and evenly, to prevent white ink from precipitation. |
Support Varnish and 3D embossing effect Print both glossy and matte effect By printing multi-layer to achieve 3D embossing raised effect. |
| Basic information |
Printer name |
A4 UV flatbed+Bottle printer |
A3 UV flatbed +Bottle printer |
| Model name |
JT-1630 UV |
JT-3250 UV |

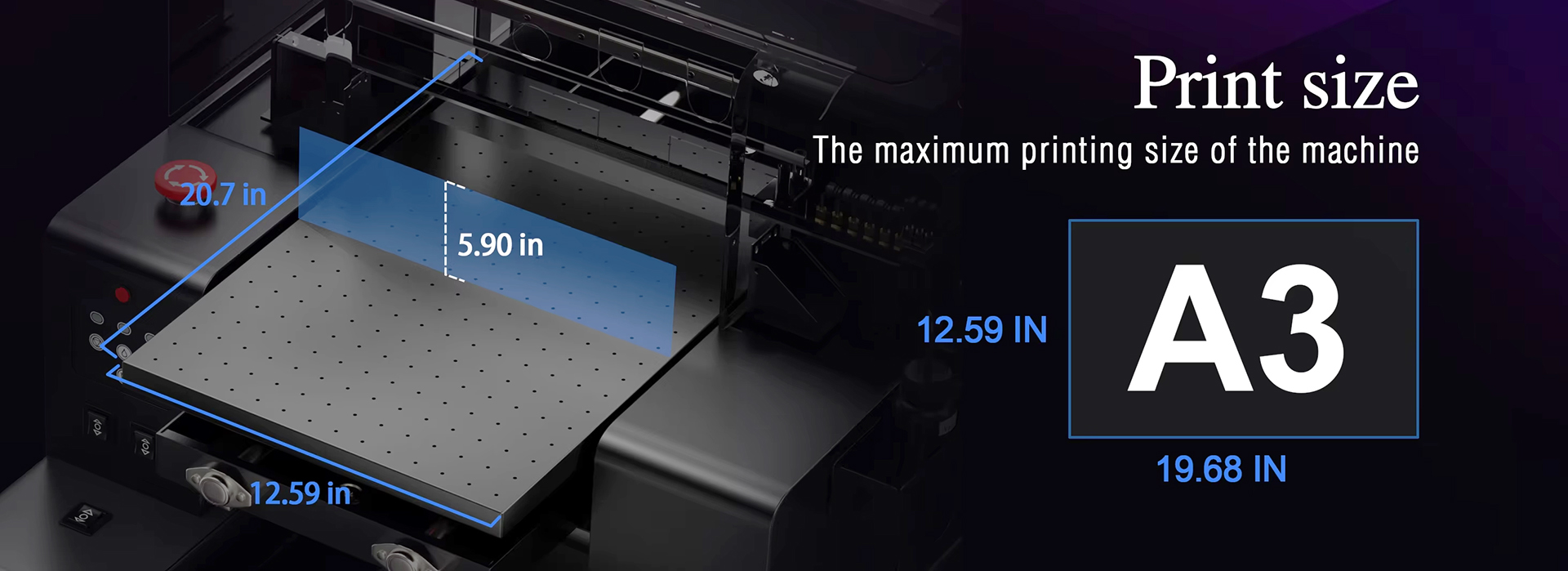

| Print flatbed Size |
Width210mm*length300mm*Height150mm |
Width330mm*length500mm*Height150mm |
| Vacuum adsorption flatbed size |
Available |
Available |
| Height adjustment |
AUTO height detecting for flatbed item printing, manual adjust for bottle printing |
| Uv lamp effective curing area |
Width200mm*length300mm |
Width320mm*length500mm |
| Maximum bottle printing size |
length205mm, Diameter110mm |
length 320mm, Diameter110mm |
| Bottle dia available for printing |
30--110mm |
50--110mm |
| Printhead |
Technology |
Advanced micro piezo inkjet technology |
| Ink drop Volume |
1.5PL |
| Print head |
EPSON L805 or EPSON XP600 |
| Printer driver |
EPSON L805 |
EPSON L1800 |
| Resolution (software setting) |
1440*1440dpi |
| Printhead life |
6-12 months depending on the maintenance and using circumstance |
| Inkjet distance |
< 5mm |
| Print Speed |
Photo mode: approx. 178 seconds |
| Speed compared to Original Epson L1800 |
Same speed |
| Ink system |
Ink type |
UV curing ink (hard ink/ neutrual/soft ink) |
| Color Configuration of printing |
CMYK LC LM /CMYK+2W/CMYK+WV (6 colors) |
| Ink tank |
150ML |
| Ink supply |
Continual ink supply system (CISS) |
| White ink stirring system |
Manual |
Automatic |
| Working condition |
Temperature |
15ºC~ 28ºC (59ºF~86ºF), Humidity 30%-70% |
| Voltage |
110V-220V, 250W |
| Plug available |
Chinese Plug/US Plug/UK Plug/Europe Plug/India Plug |
| Size & weight |
Printer size(L*W*H) |
636mm*547mm*490mm |
760mm*630mm*510mm |
| Net Weight of printer |
31.9KG |
51KG |
| Size of package(L*W*H) |
700mm*565mm*530mm |
910mm*590mm*695mm |
| Gross weight |
43kg |
68KG |
| Package type |
Inside foam protection, outside Ply-wood steel frame package |
| Software |
AcroRIP White ver9.0(sent as gift) |
AcroRIP White ver10.3(sent as gift) |
| Computer config |
Computer operating system |
Windows system WIN 10/11 recommended |
| Computer processor prefered |
INTEL AMD |
| Computer storage |
RAM>8G |
| Print Interface |
USB2.0 high speed |

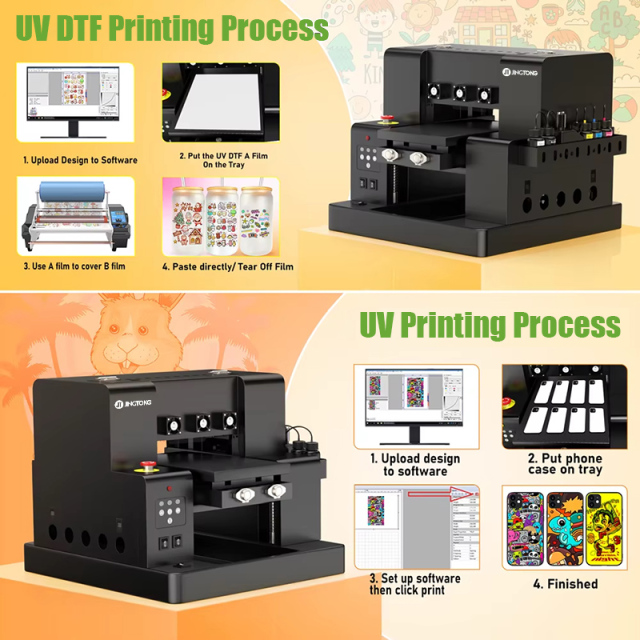

Three Printing Methods
 |
 |
 |
| UV DTF Sticker Print |
Flatbed Printing |
Cylinder Printing |
| Prints designs onto UV DTF film for easy transfer onto irregular or curved surfaces, offering strong adhesion and vivid colors. |
Direct UV printing on flat and rigid materials like acrylic, wood, glass, and metal with durable, vibrant results. |
Designed for direct printing on cylindrical objects such as bottles, cups, and tubes with precise alignment and smooth output. |
Accessories
Application of Jingtong A4 UV Printer

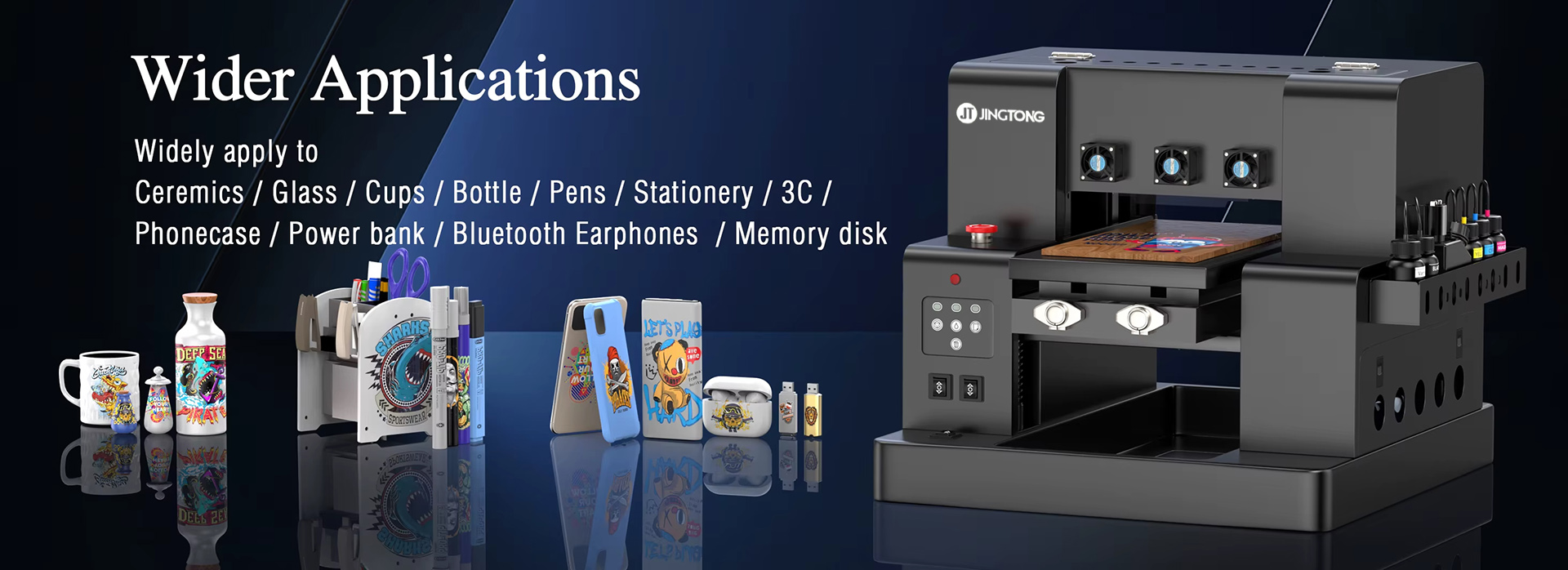

It is suitable for printing on various surfaces, such as phone cases, bottles, acrylic, crystal, leather, plastic, metal, PVC, ABS, stone, tiles, KT board, wood, foam board, and any other flat surfaces.
FAQ – A3 L805 UV Flatbed & Cylinder Printer
1. What is this hybrid UV printer used for?
This machine is designed for UV flatbed and cylindrical printing, allowing direct printing on flat items and round objects such as phone cases, acrylic boards, wood, metal plates, bottles, cups, and tubes.
2. What does “hybrid flatbed & cylinder” mean?
It means the printer supports both flatbed printing and rotary (cylinder) printing in one compact machine, enabling greater product versatility without changing equipment.
3. Which printhead does this printer use?
The printer uses an Epson L805 printhead, offering stable performance and reliable UV print quality for small-format applications.
4. What is the maximum printing size?
The printer supports A3-size flatbed printing and can print on various cylindrical objects using the optional rotary attachment.
5. Does it support white ink and varnish?
Yes. The printer supports CMYK + White + Varnish, enabling vivid colors, strong opacity on dark materials, and optional glossy or textured finishes.
6. What materials can be printed on?
The printer can print on a wide range of materials, including:
• Acrylic
• Plastic
• Wood
• Metal
• Glass
• Leather
• Cylindrical items (bottles, cups, tubes)
7. Is this printer suitable for small businesses?
Yes. Its compact A3 design, multi-function capability, and easy operation make it ideal for custom gift shops, signage studios, promotional product businesses, and startups.
8. What software is required to operate the printer?
The printer works with professional UV RIP software to manage color output, white ink layers, and varnish effects. A Windows-based computer is typically required.
9. What maintenance does the printer require?
Routine maintenance includes:• Regular nozzle checks
• Printhead cleaning
• Proper UV ink circulation
This ensures consistent print quality and extends printhead life.
10. What is the warranty?
Jingtong machines come with a one-year warranty, except for the print head. During the warranty period, we will send some parts for replacement free of charge, and damaged parts should be returned promptly.
