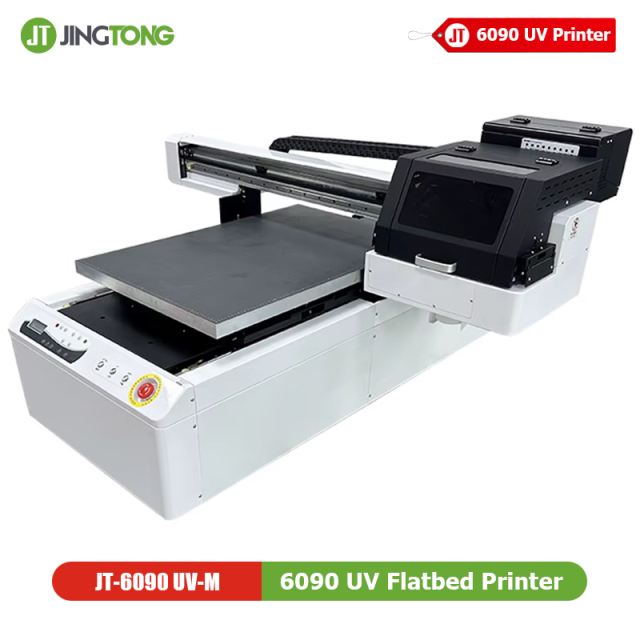

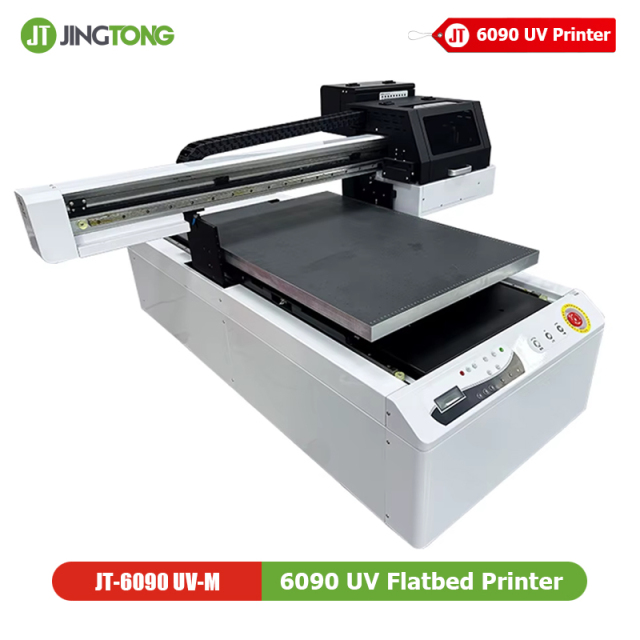

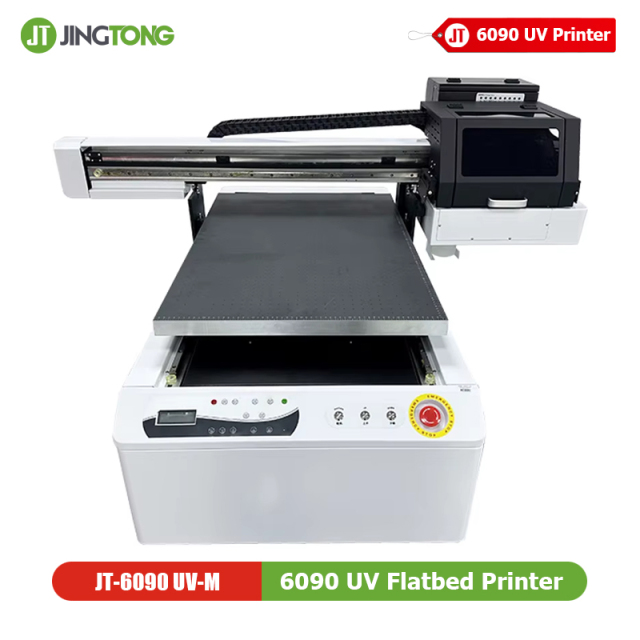

The JT-6090 UV-M is a versatile UV flatbed printing machine with a 600×900mm print area and 2–3 Epson XP600, i1600-U1 or i3200-U1 printheads. It is ahigh-precision flatbed UV printer, which is specially designed for custom processing enterprises to meet their diverse, high-production, and customized needs. This 6090 UV Printer delivers high-resolution CMYK, White and Varnish printing on acrylic, glass, metal, wood, plastic, ceramic and other materials, making it suitable for customized products, signage and commercial digital printing.
Product Highlights
- Print Varnish and 3D Relief Effects
- Electric Fixture, Support 360° Rotation Printing
- 180mm Maximum Printing Thickness
- 600×900mm Large Printing Area
- 2–3 Epson XP600 / i1600-U1 / i3200-U1
- CMYK + White + Varnish Printing
- Up to 8 m²/h Printing Speed
- Optional Vision Positioning System
Specification
|
Model
|
JT-6090 UV-M / JINGTONG 6090 UV Flatbed Printer
|
|
Print Head
|
Epson XP600 / i1600 / i3200
|
|
Print Head Quantity
|
2~3 pcs
|
|
Printing Size
|
600*900mm
|
|
Printing Accuracy
|
720/1080/1440/2160/3200 dpi
|
|
Resolution & Speed
|
Epson XP600
6pass: 5m2/h
8pass: 3.5m2/h
12pass: 1.5m2/h
|
Epson i1600-U1
6pass: 5m2/h
8pass: 3.5m2/h
12pass: 1.5m2/h |
Epson i3200-U1
6pass: 8m2/h
8pass: 5m2/h
12pass: 3m2/h |
|
Print Mode
|
CMYK + W + Varnish
|
|
Print Head Cleaning
|
Automatic
|
|
Ink Type
|
UV ink
|
|
Platform Height Adjustable
|
0-180mm
|
|
Print Material
|
Acrylic, glass, stainless steel, mobile phone cases, ceramic tiles, KT boards, wooden boards, aluminum-plastic boards
|
|
Ink Cartridge Type
|
Intelligent induction ink shortage alarm cartridge
|
|
White lnk Stirring Function
|
Yes
|
|
Rotary Shaft Device
|
Optional
|
|
Optional Configuration
|
Vision Positioning System
|
| Platform Suction |
Yes
|
|
Print Interface
|
Gigabit Network
|
|
Standard Warranty
|
1 years full machine warranty, 2 years warranty on core components, and lifetime technical support. (Ink system, printheads and ink capping are not covered)
|
|
Working Environment
|
Temperature 20-30ºC
|
|
Software
|
Riprint / MainTop / Photo Print
|
|
Operating System
|
Win7 / Win10 / Win11
|
|
Rated Power
|
2100W
|
|

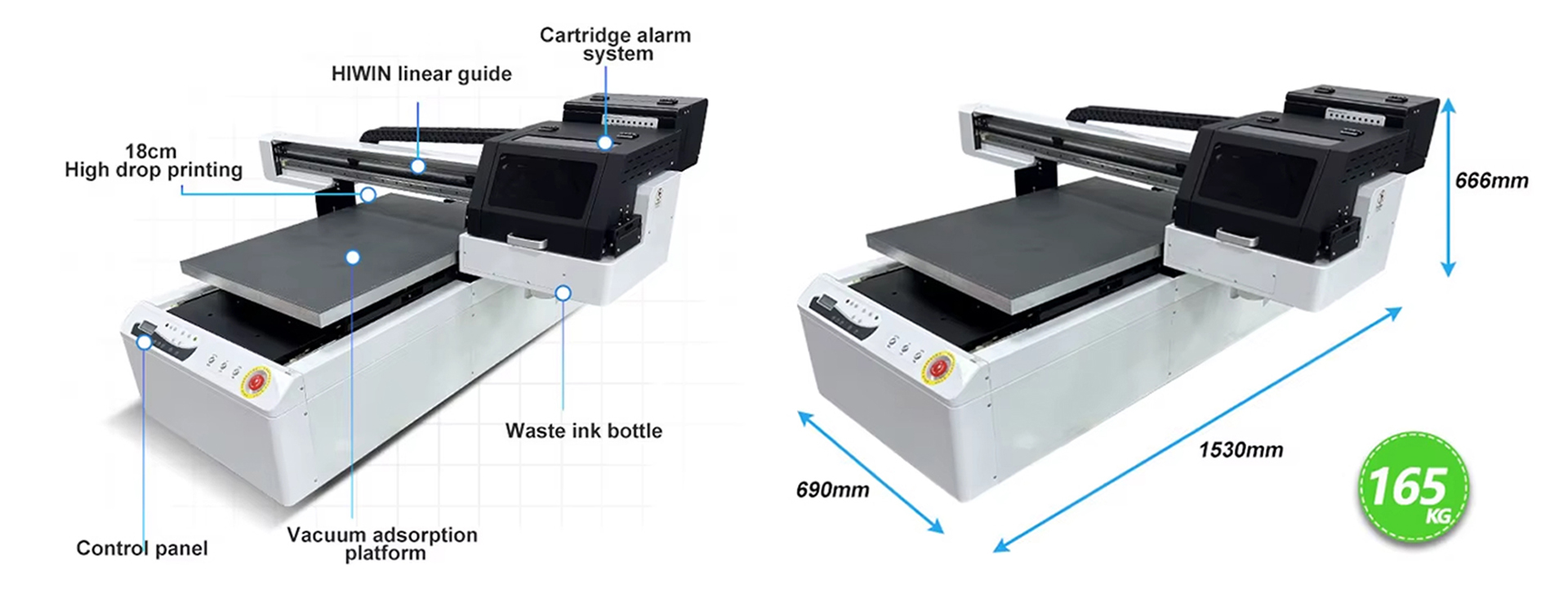

Machine size/weight
|
L1562*W1530*H666mm/165kg
|
|
Package size/weight
|
L1660*W1660*H890mm/255kg
|

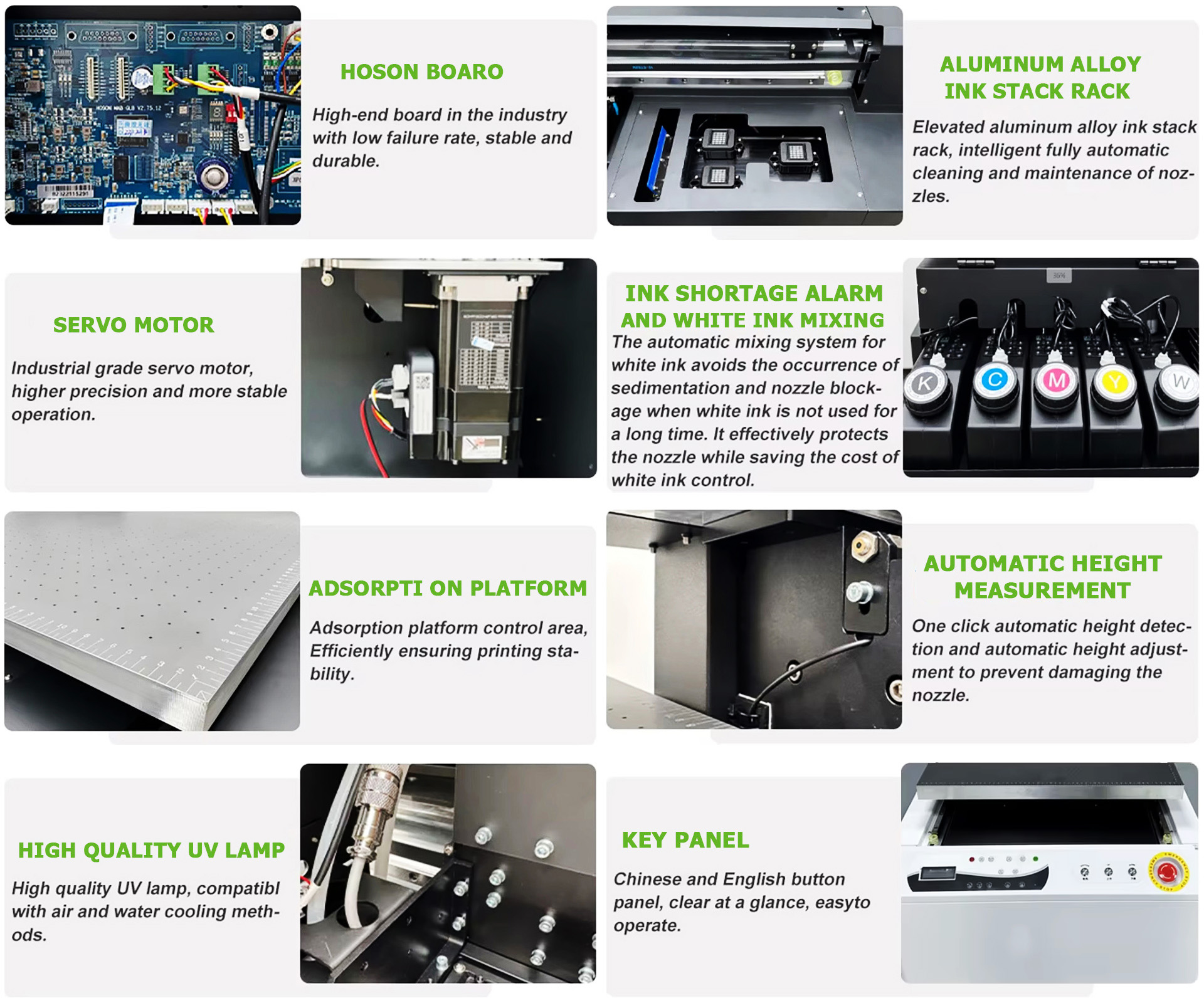

- High-Resolution Printout - Print precision up to 720*2400 dpi, the image quality is delicate, high ink drop printing can be realized, the jetting force is strong, and the performance is stable.
- Automatic Lifting Ink Capping Station - Driven by a motor, the position of the sealing head is precisely controlled, and the nozzle is intelligently protected from external damage.
- High-Precision Vacuum Suction Platform - Adsorption platform made of high-strength aluminum alloy plate, the turbo fan under the platform absorbs air through the holes to fix the material.
- Print Heads Anti-Collision System - Print heads are equipped with an anti-collision sensing device to protect the print heads and print items from being scratched.
- Independent Ink Ejection Device - Supports timing ink jetting, effectively prevents ink from solidifying in the ink system and prevents nozzles from clogging.
- Siphon Ink Supply System - The ink supply is smooth and stable without splashing ink droplets, ensuring the perfect output for printing jobs.
- UV Lamp Protective Cover - Emergency stop when opening the cover during work, Protect eyes from UV light.
- Friendly Software Interface - Including calibration, the operation is provided with detailed instructions, newbie friendly.
- Engineer Settings Open - Meet the customization and personalized printing settings of professionals.
Technical Details

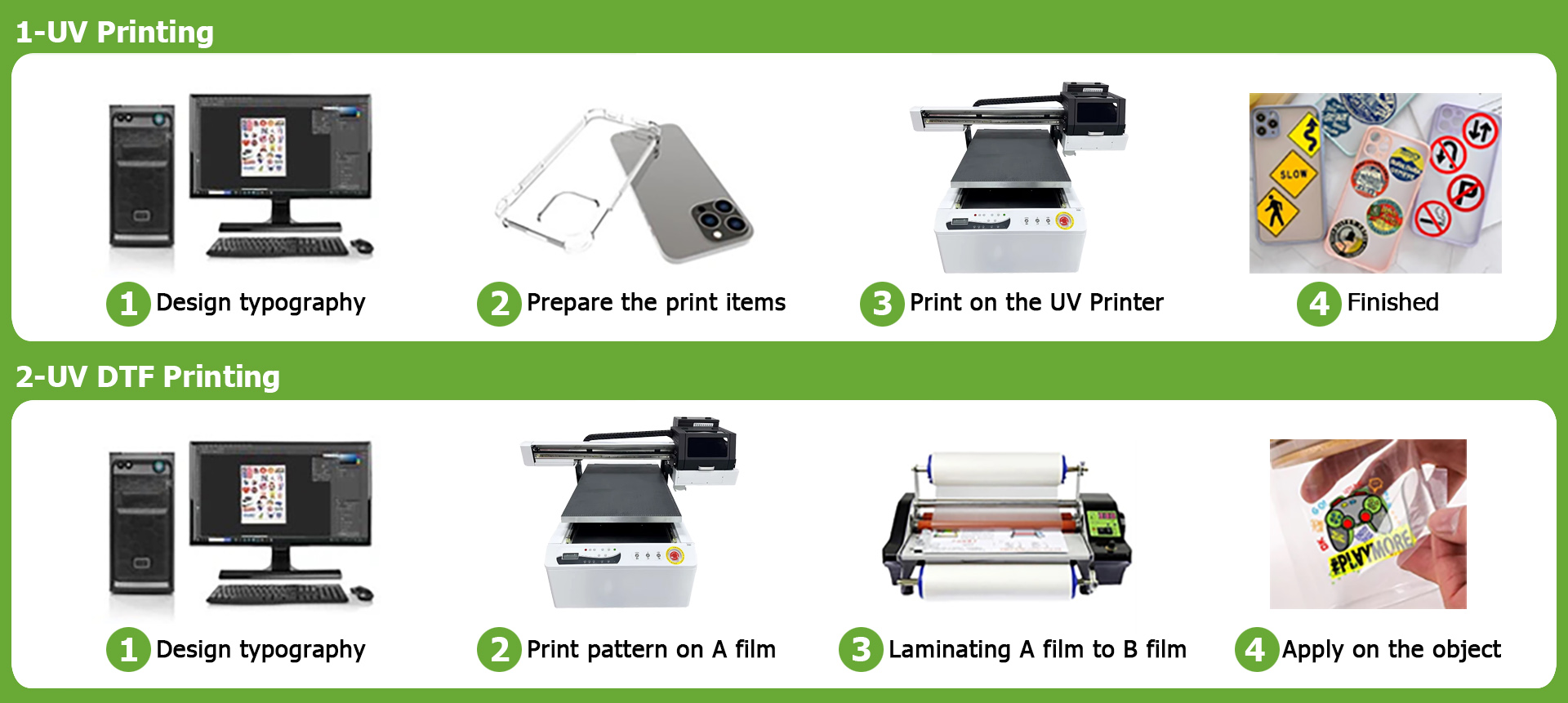

Vision Positioning System (Optional Feature)Optional Vision Positioning for Accurate UV PrintingThe optional Vision Positioning System uses a camera to identify the actual position of the material and automatically align the artwork before printing. It is especially useful for pre-cut materials, irregular-shaped products and batch printing, helping reduce alignment errors, material waste and setup time.Multi Printing MethodsThe 6090 UV printer supports two flexible printing methods to meet different production needs:1. UV Flatbed Printing (Direct Printing)Materials are placed directly on the flatbed platform, where UV ink is printed and instantly cured by UV LED lamps. This method is ideal for rigid and flat surfaces such as glass, acrylic, wood, metal, and plastic.With an optional rotary attachment (cylindrical fixture), the printer can also handle round objects like bottles, tumblers, mugs, and cups, expanding its application range.2. UV DTF Sticker Printing (Indirect Transfer Printing)The printer can also produce UV DTF (Direct-to-Film) stickers using AB film. First, designs are printed onto a special film with UV ink and varnish layers. Then, the printed sticker can be transferred onto various surfaces by simple application—no direct printing required.This method is perfect for irregular shapes, curved surfaces, or items that are difficult to print on directly.
Application of Jingtong 6090 UV Flatbed Printer
The JT-6090 UV-M is suitable for customized products, signage, promotional items and decorative printing on acrylic, glass, metal, wood, plastic, ceramic, leather, phone cases, tiles and other substrates. With the optional rotary device, it can also print on cylindrical products such as bottles, mugs and tumblers. A flexible solution is ideal for printing high-quality outdoor signage, promotional items, etc.
FAQ – 6090 UV Flatbed Printer
Q1: What is the maximum printing size of the JT-6090 UV-M?
A: The maximum printing area is 600×900mm, making it suitable for a wide range of medium-size UV printing jobs.
Q2: Which Epson printheads can be installed?
A: The printer supports 2–3 Epson XP600, i1600-U1 or i3200-U1 printheads, allowing customers to select a configuration based on image quality, speed and budget.
Q3: How fast can the 6090 UV printer print?
A: Depending on the printhead and print mode, the speed can reach up to 8 m²/h with Epson i3200-U1. Lower-pass modes prioritize image quality.
Q4: Can it print white and varnish?
A: Yes. The printer supports CMYK + White + Varnish, enabling printing on dark materials and adding glossy or decorative effects.
Q5: What thickness of material can it handle?
A: The printing platform height is adjustable from 0 to 180mm, providing flexibility for different products and substrates.
Q6: Can it print on cylindrical products?
A: Yes. An optional rotary device can be added for cylindrical products such as bottles, mugs and tumblers.
Q7: What is the Vision Positioning System used for?
A: It automatically recognizes the material position and aligns the artwork, which is useful for irregular, pre-cut or batch-printed products.
Q8: What RIP software is compatible with the printer?
A: The JT-6090 UV-M supports RIP solutions including MainTop, PhotoPrint and Riprint, depending on the selected configuration.
