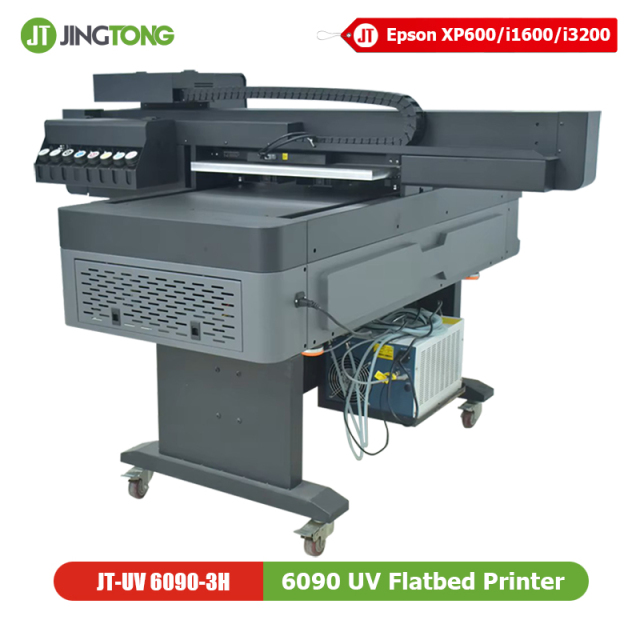

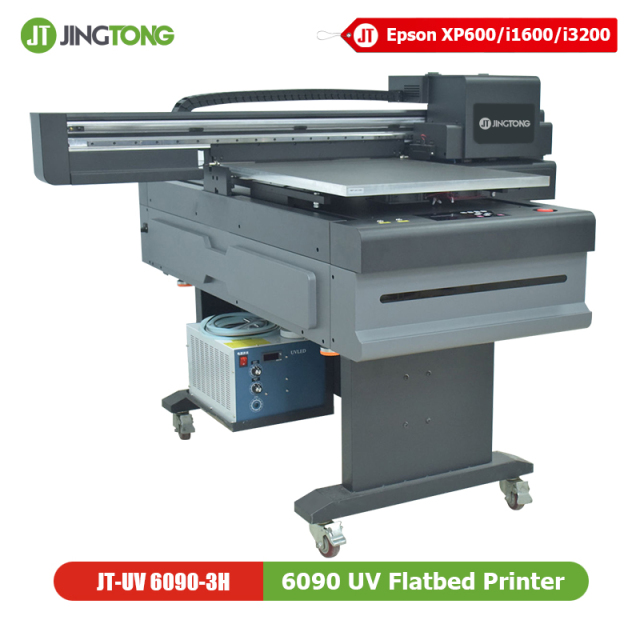

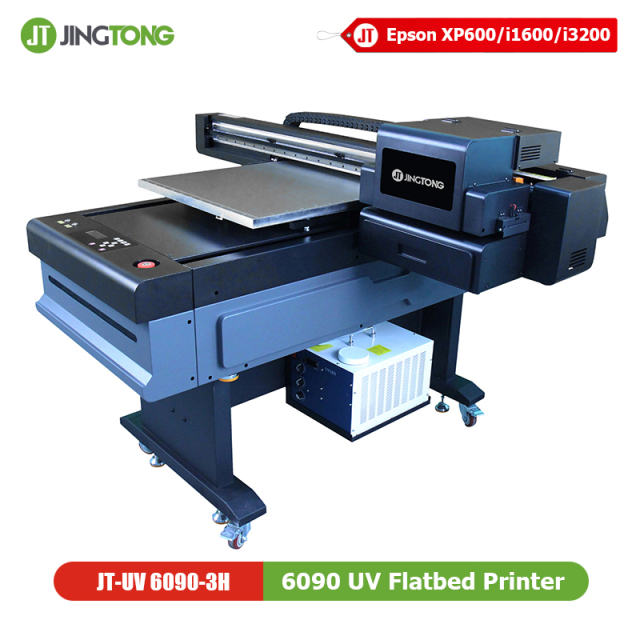

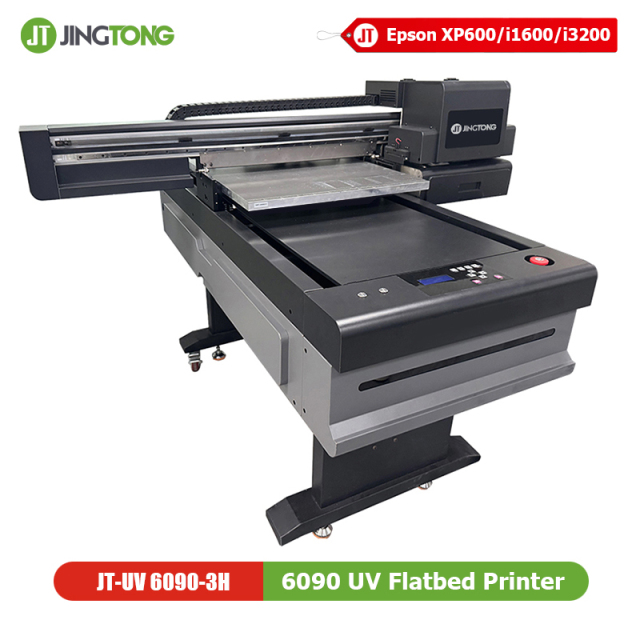

Name: High-End AI Vision 6090 UV Flatbed Printer UV LED Printer for Acrylic, Glass, Wood
Brand: Xiamen Jingtong Industry Co., Ltd
SKU: JT-UV 6090-3H
Availability: InStock
Rating: 5 (1 reviews)

Description

The latest generation 6090 UV flatbed printer is a next-generation digital printing solution designed for precision, flexibility, and high-efficiency production. Equipped with Epson XP600, I1600, or I3200 printheads, it delivers outstanding image quality, vibrant colors, and stable performance.

With the integration of an advanced AI visual positioning system, this printer can automatically recognize and align printing objects, significantly improving accuracy and productivity in batch printing workflows. It is widely used for customized products, industrial printing, signage, and promotional applications.

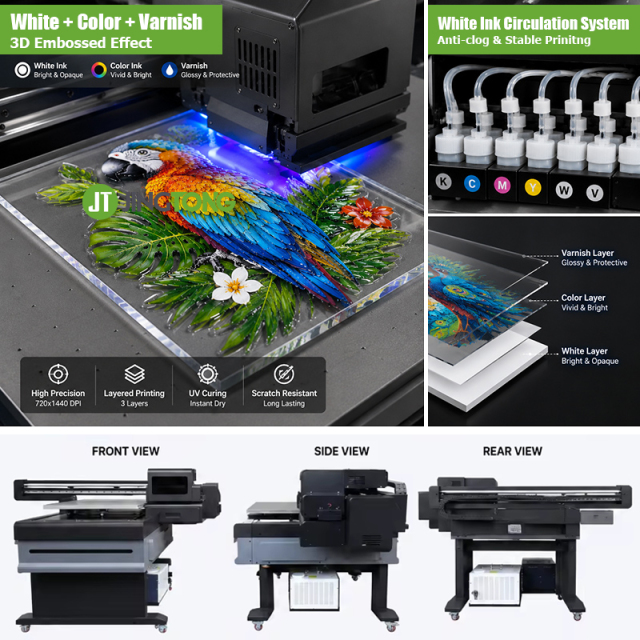

The machine supports CMYK + White + Varnish printing, allowing users to achieve embossed, glossy, and high-end textured effects on a wide range of materials.

Product Highlight
• AI Visual Positioning Technology for automatic object recognition
• Compatible with Epson XP600 / I1600 / I3200 printheads
• High-resolution printing up to 2400 DPI
• Supports White + Varnish printing for premium effects
• Adjustable platform height up to 180mm
• Optional rotary device for cylindrical objects
• Vacuum adsorption platform for stable media fixing
• Multi-material direct printing (no plate-making required)

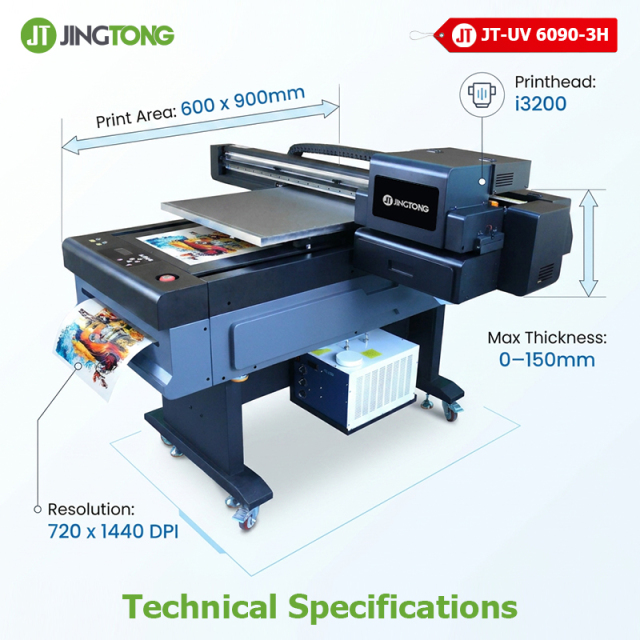

Specification

Model	JT-UV 6090-3H \| JINGTONG 6090 UV Flatbed Printer
Print Head	Epson XP600 / i1600-U1 / i3200-U1
Print Head Quantity	2~3 pcs
Printing Size	600*900mm
Printing Speed	3-12 sqm/per hour
Printing Accuracy	720/1080/1440/2160/3200 dpi
Print Mode	CMYK+W	CMYK+W+V	CMYK+LcLm+W+V
Print Head Cleaning	Automatic
Ink Type	UV ink
Platform Height Adjustable	0-180mm
Print Material	Acrylic, glass, stainless steel, mobile phone cases, ceramic tiles, KT boards, wooden boards, aluminum-plastic boards

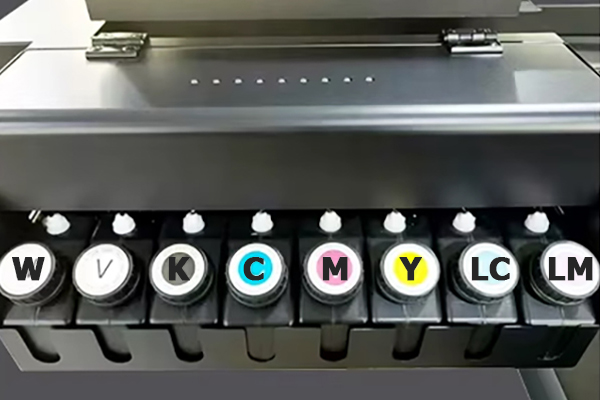

Ink Cartridge Type	Intelligent induction ink shortage alarm cartridge
White lnk Stirring Function	Yes
Rotary Shaft Device	Optional
Platform Suction	Yes
Print Interface	Gigabit Network
Standard warranty cover	1 Years
Working Environment	Temperature 20-30'C
Software	Riprint / MainTop / Photo Print
Operating System	Win7 / Win10 / Win11
Rated Power	2100W
Machine size/weight	L172W162H64cm/210kg
Package size/weight	L183W168H85cm/290kg

Features

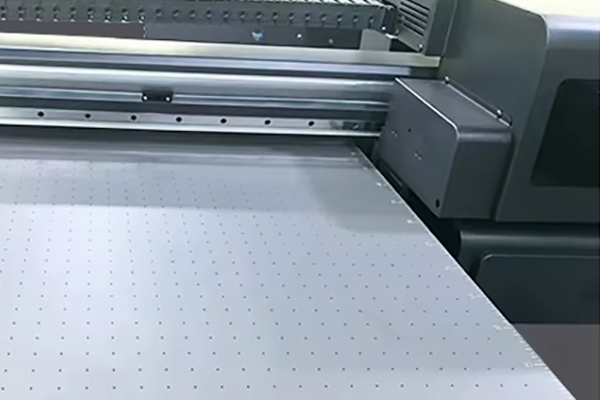

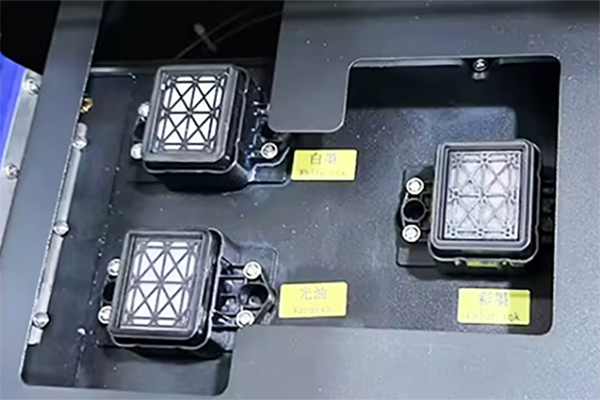

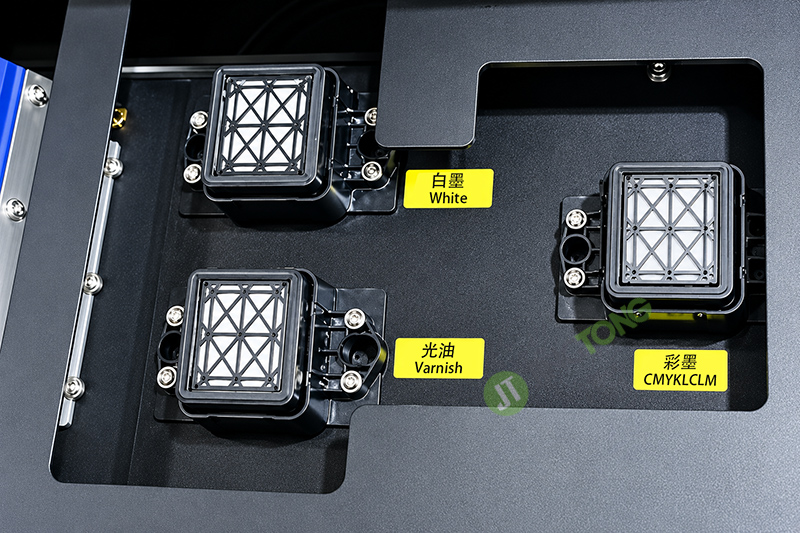

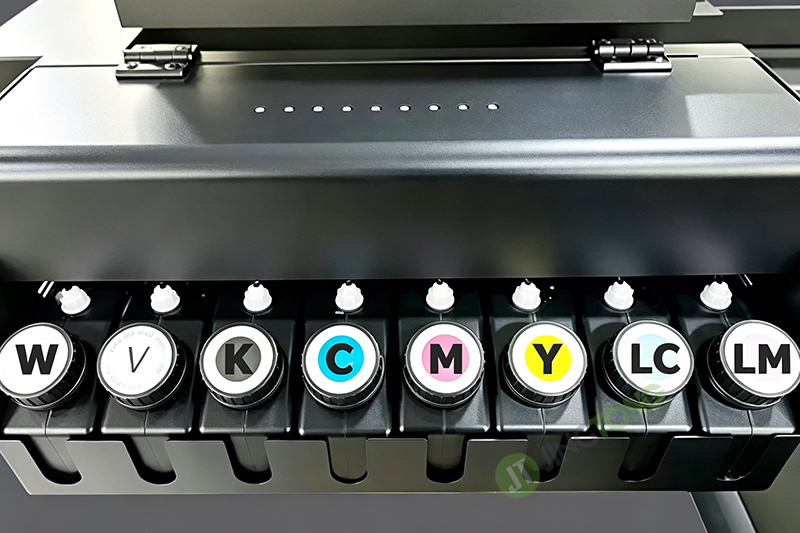

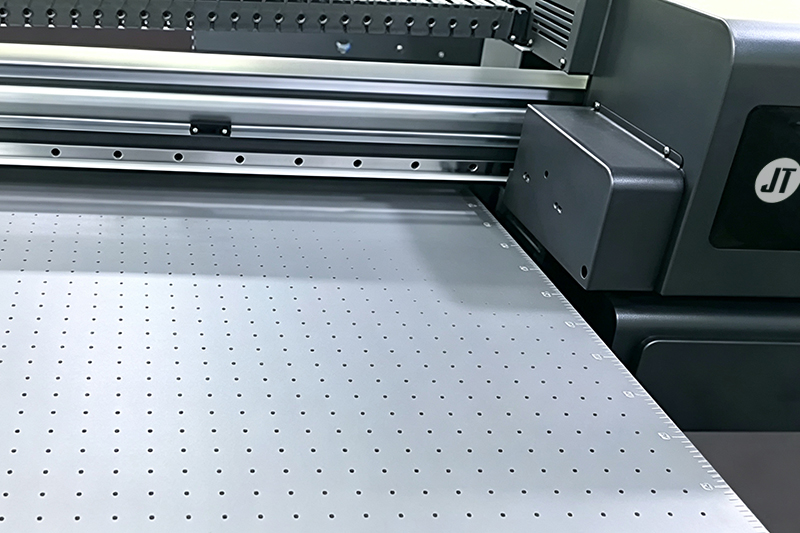

Three-head lift ink stack	Negative Pressure Ink Supply System	Adsorption Platform
With a small frame, more accurate alignment with the printhead, ink absorption, high cleaning efficiency, to protect the life of the printhead, so that the print effect is more delicate.	Smooth change of ink supply, smoother ink supply, to ensure the stability of ink supply during high-speed continuous printing.	More than 1.000 air intakes. It has an adsorption effect on the material.

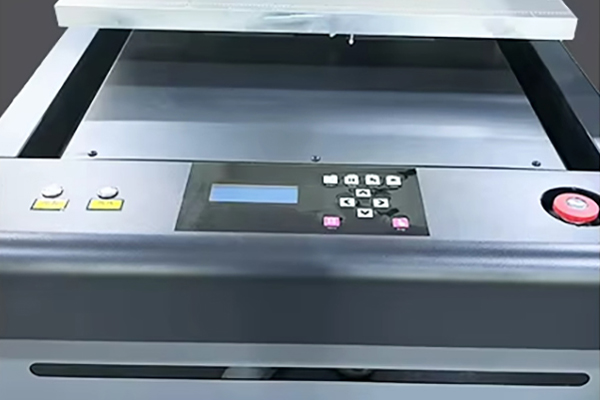

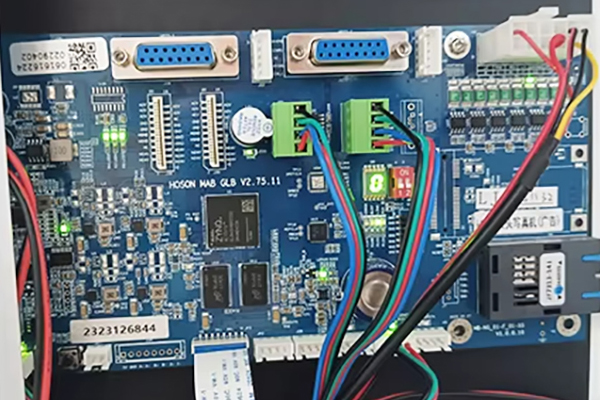

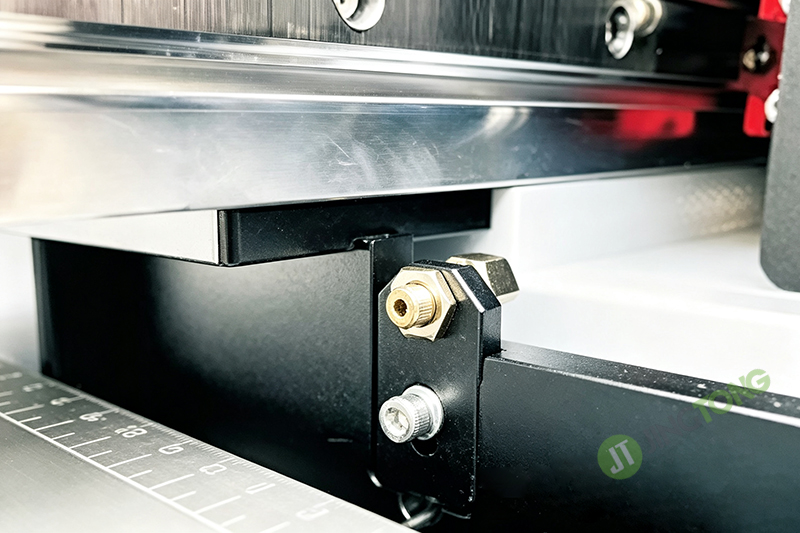

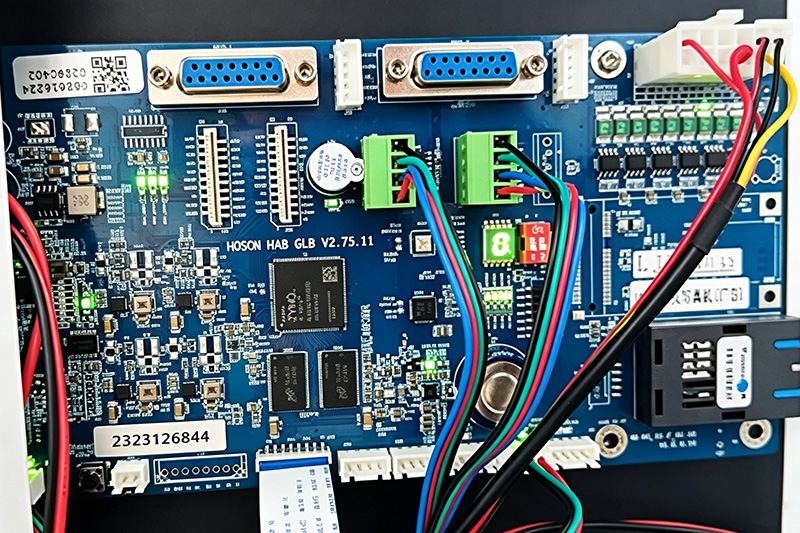

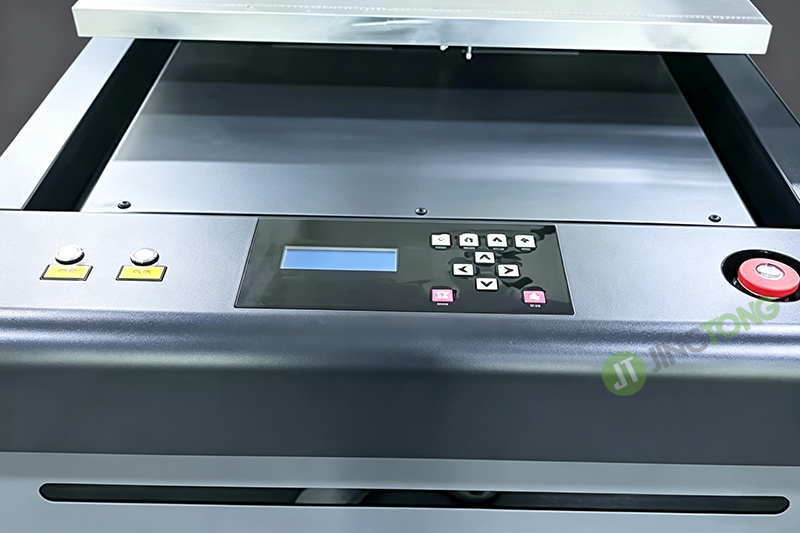

Operation integration	Honson Board system	Automatic Height Measurement
Integrated buttons can be used to control switches, print head lifting, platform movement, etc.	The domestic high-end board system has good stability, low failure rate and durability.	One-touch automatic height detection and automatic height adjustment to prevent damage to the nozzle.

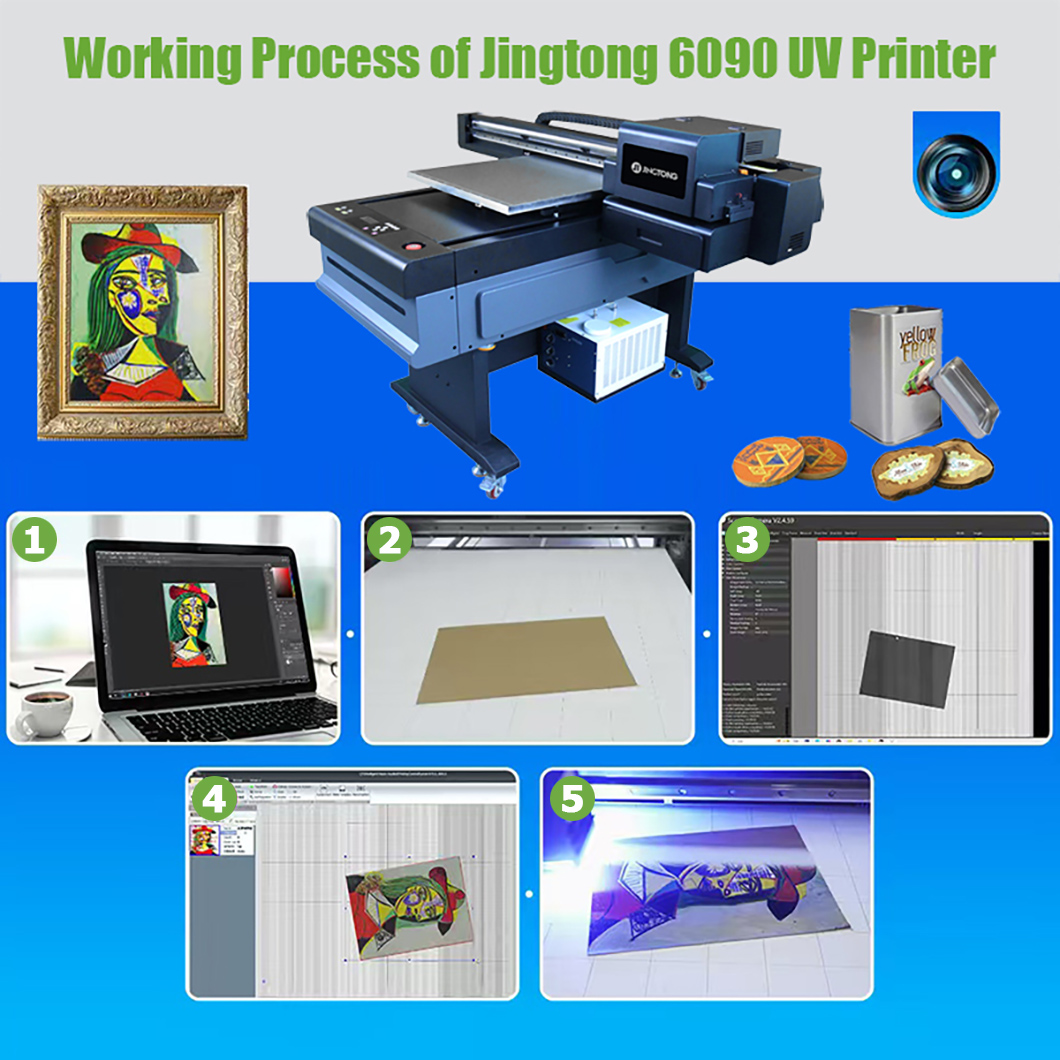

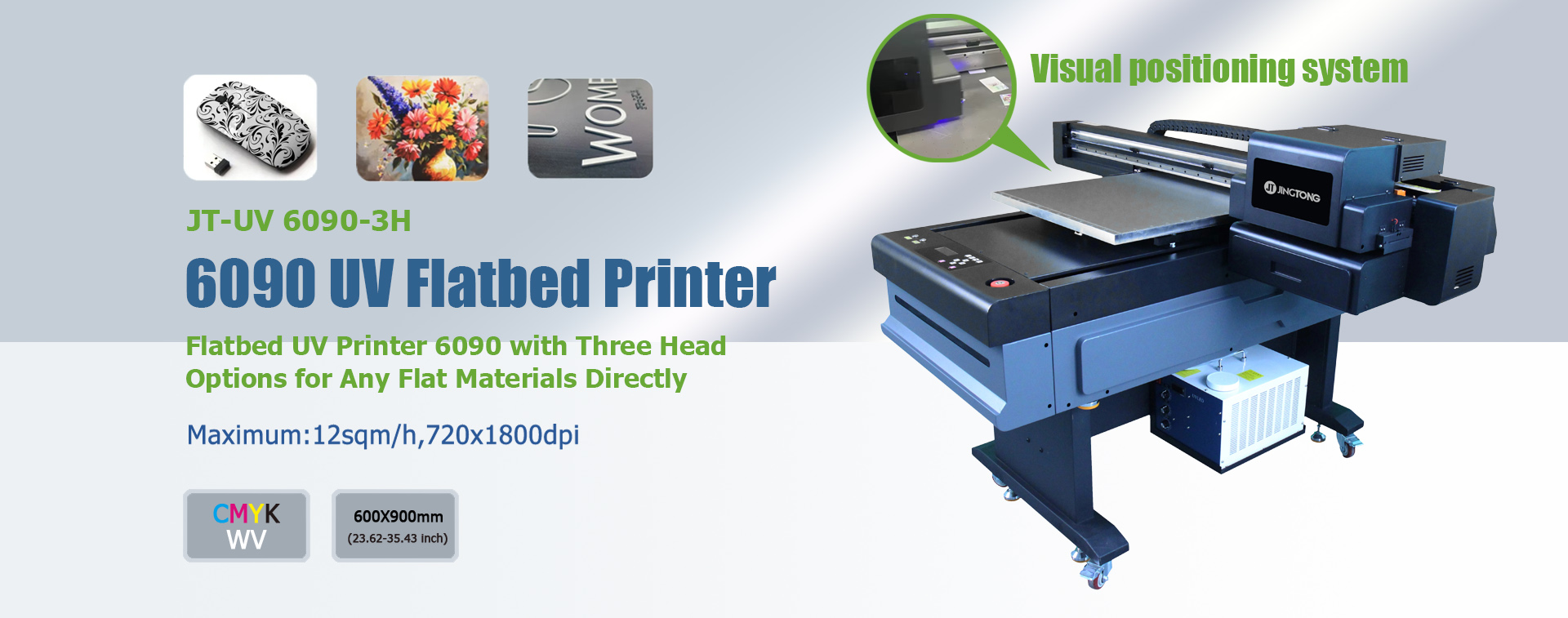

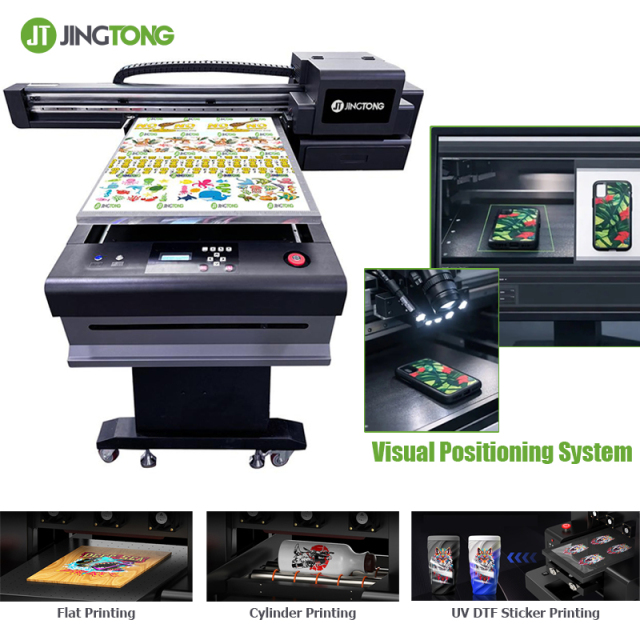

New Visual Positioning System For UV Print

The AI visual positioning system is an intelligent upgrade that combines UV printing technology with machine vision.
Using high-resolution cameras and advanced algorithms, the system can automatically detect the position, orientation, and shape of objects on the printing platform. It then sends real-time data to the control system to ensure precise alignment and accurate printing.

Key Advantages:
• No need for manual positioning
• Ideal for batch printing of small items
• Reduces labor cost and error rate
• Improves production efficiency significantly
• Perfect for irregular or pre-placed products
This technology enables true “print-what-you-see” automation, especially suitable for customized production workflows.

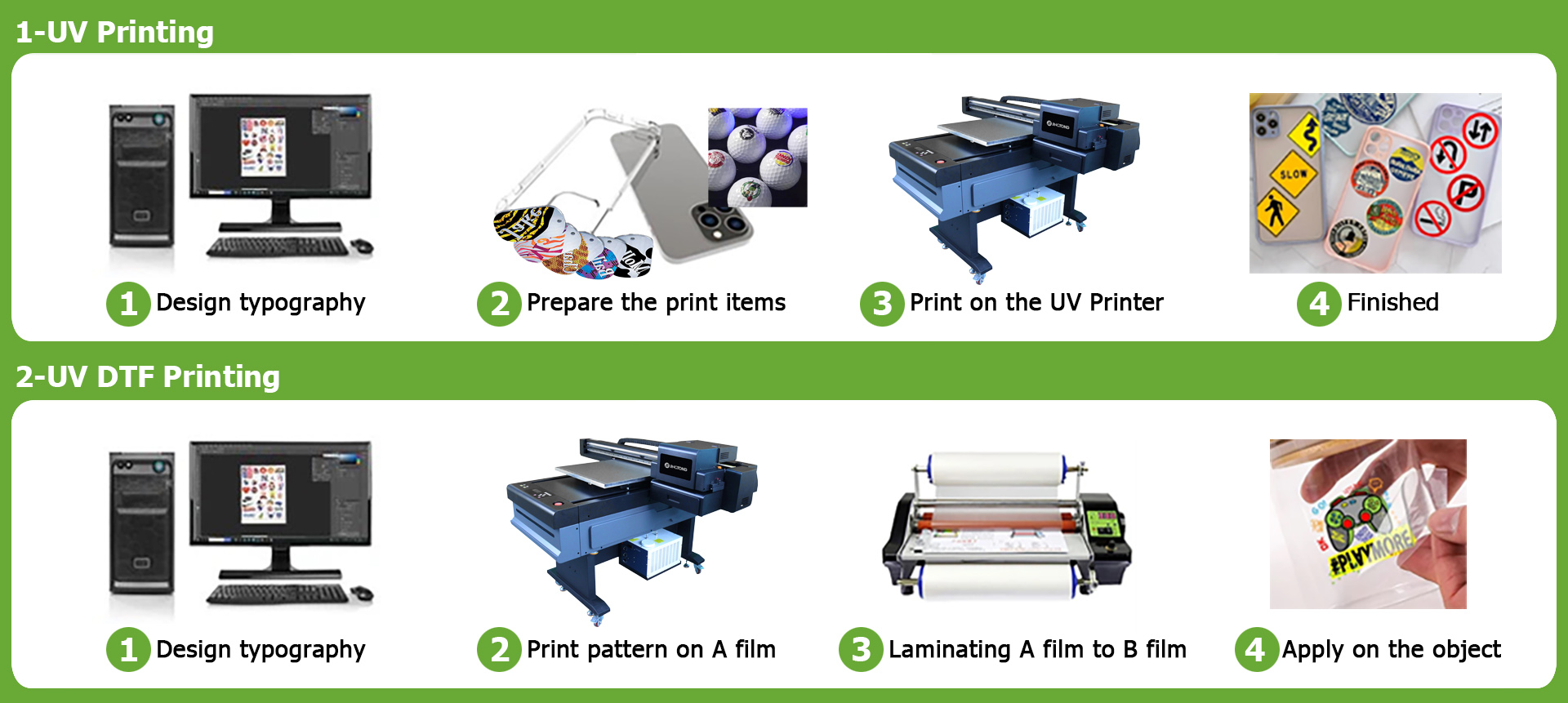

Multi Printing Methods
The 6090 UV printer supports two flexible printing methods to meet different production needs:
1. UV Flatbed Printing (Direct Printing)
Materials are placed directly on the flatbed platform, where UV ink is printed and instantly cured by UV LED lamps. This method is ideal for rigid and flat surfaces such as glass, acrylic, wood, metal, and plastic.
With an optional rotary attachment (cylindrical fixture), the printer can also handle round objects like bottles, tumblers, mugs, and cups, expanding its application range.
2. UV DTF Sticker Printing (Indirect Transfer Printing)
The printer can also produce UV DTF (Direct-to-Film) stickers using AB film. First, designs are printed onto a special film with UV ink and varnish layers. Then, the printed sticker can be transferred onto various surfaces by simple application—no direct printing required.
This method is perfect for irregular shapes, curved surfaces, or items that are difficult to print on directly.

Applications of Jingtong UV Flatbed Printer (JT-UV 6090-3H)
This UV flatbed printer is widely used for printing on rigid and flexible materials such as acrylic, glass, wood, PVC, metal, ceramic, leather, and plastic. It is ideal for producing customized promotional products, signage, phone cases, packaging materials, and decorative items.
With its ability to print white ink and varnish effects, it is especially suitable for high-end personalized products and industrial customization markets.


Arcylic	Canvas	Wood	Glass

Leather	Metal	PET Film	Plastic

PVC Board	Silica Gel	Rubber	Ceramic Tiles

FAQ – 6090 UV Flatbed Printer

Q1: What materials can the 6090 UV printer print on?
A: It can print on a wide range of materials including acrylic, glass, wood, metal, ceramic, plastic, leather, and more. It is suitable for both rigid and some flexible materials.

Q2: What is the difference between XP600, i1600, and i3200 printheads?
A:
• XP600: Cost-effective, suitable for entry-level and general printing
• i1600: Better stability and finer details
• i3200: Higher speed, industrial-level performance, longer lifespan

Q3: Does the printer support white ink and varnish?
A: Yes, it supports CMYK + White + Varnish printing, allowing printing on dark surfaces and creating 3D or glossy effects.

Q4: Can it print on cylindrical objects like bottles?
A: Yes, with an optional rotary device, the printer can print on bottles, mugs, tumblers, and other cylindrical items.

Q5: Is this printer suitable for small businesses?
A: Absolutely. The 6090 UV printer is compact, affordable, and versatile, making it ideal for startups, small businesses, and customization shops.

Q6: What software is compatible with this printer?
A: It supports popular RIP software such as MainTop and PhotoPrint, ensuring easy operation and professional color management.

Q7: What is the difference between UV printer and UV DTF printer?
A: UV printers print on substrates directly while UV DTF printers print on AB films first, and then attach to the substrates. UV DTF printer is extended from UV printer to make up for the shortcomings of UV printing.
