Dual XP600 head A3 DTF printer U13D offers the perfect combination of quality and speed. Featuring its dual printhead design, it can experience as much as a 150% improvement in printing efficiency compared to single-head variants, speeding up batch production faster and smoother. In the meantime, its high resolution of 2800*720 DPI yields clear details and deep colors, and all prints have professional appearances while having great cost performance.
A DTF printing/ direct-to-film printer prints on film first, then transfers the pattern onto the fabric. This printer can print on almost any fabric without restricting the image composition, overcoming common deficiencies of both DTG and sublimation printing. A3 DTF printers are the perfect printer for small custom t-shirt businesses.Features of JT-A3 DTF-U13D DTF Printer
- Sleek, Modern Design – With its upgraded, lightweight design, the A3 DTF-U13D maintains its exceptional print quality while enhancing the overall user experience.
- Auto-Cleaning Printhead – When left on, the A3 DTF-U13D automatically cleans the printhead every 10 hours, ensuring optimal performance, using just 1ml of ink daily.

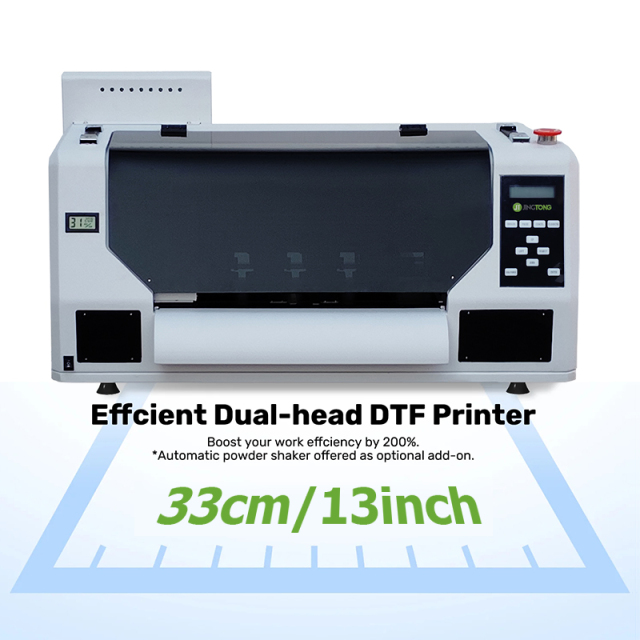

- Dual Print Heads – The A3 DTF-U13D boasts two XP600 print heads, increasing printing efficiency and reducing the time required for each job.
- Superior Print Quality – Utilizing its dual print heads, the A3 DTF-U13D can create high-resolution prints with minimal color distortion, ensuring consistent, industrial-grade results.

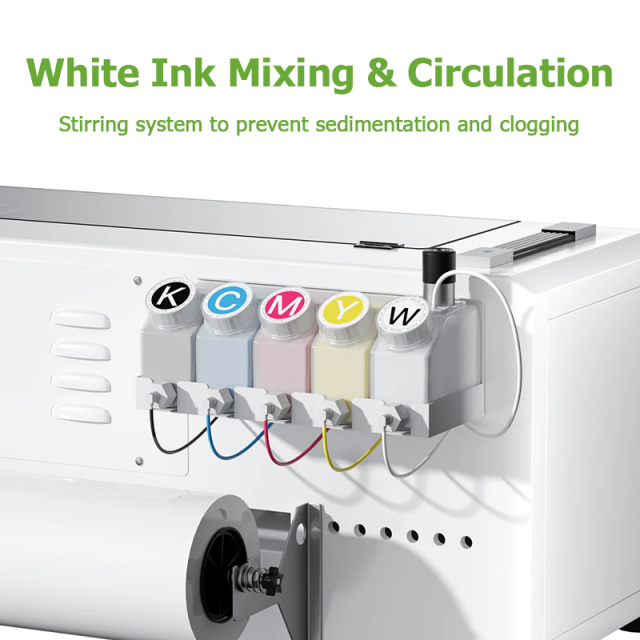

- White Ink Circulation Technology - The advanced CISS white ink circulation, mixing, and filtration system effectively prevents clogs caused by white ink sedimentation. This system protects the printhead and ink sacs from damage, significantly reducing maintenance frequency. At the same time, it ensures consistent high-quality white ink output, delivering reliable and flawless print results every time.
- User Friendly – The A3 DTF-U13D eliminates the need for pretreatment, offering straightforward printing steps that are easy to learn, even for beginners.
Machine Parameter

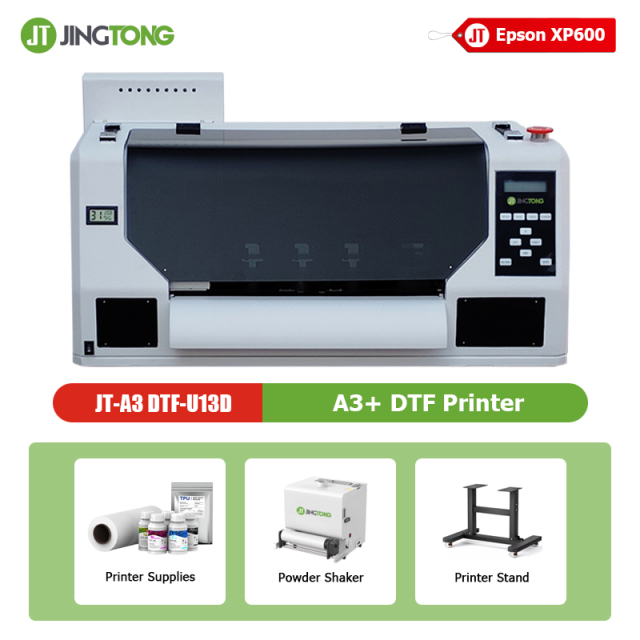

| A3 Plus Dual XP600 DTF Printer |
| Machine Model |
JT-A3 DTF-U13D |
| Printhead |
Epson XP600 Printhead * 2pc |
| Ink |
Textile pigment ink/DTF Ink |
| Max Print Width |
330mm |
| Printing Speed |
3-8 m2/h |
| Printing Material |
DTF PET Film |
| Print Accuracy |
720*1080dpi / 720*1440dpi / 720*2160dpi |
| Ink Capacity |
5 Color: 0.5L*CMYKW |
| Printing Software |
Maintop / Photoprint / RIIN / PrintFactory |
| Ink Loss |
20m1/m |
| Ink Supply Method |

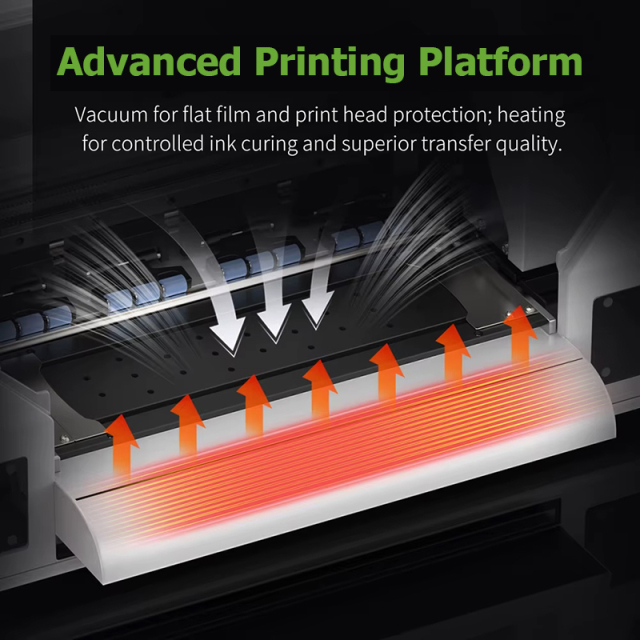

Continuous Ink Supply ; White Ink Mixing System; White Ink Circulate System; Vacuum Suction Plateform |
| Print Interface |
Gigabit Ethernet interface |
| 0peration System |
Windows7 / Windows10 / Windows11(Must be 64-bit) |
| Operation Environment |
Temperature 18-30°C Humidity: 40%-60%RH |
| Power/Voltage |
110V/220V, 50/60HZ |
| Print Height |
0-500mm |
| Printer Size |
750*580*420mm |
| N.W |
30KG |
| Package Size |
800*455*400mm |
| G.W |
45KG |
| Drying System |
A3+ DTF Oven, A3+ DTF Powder Shaker (Optional) |

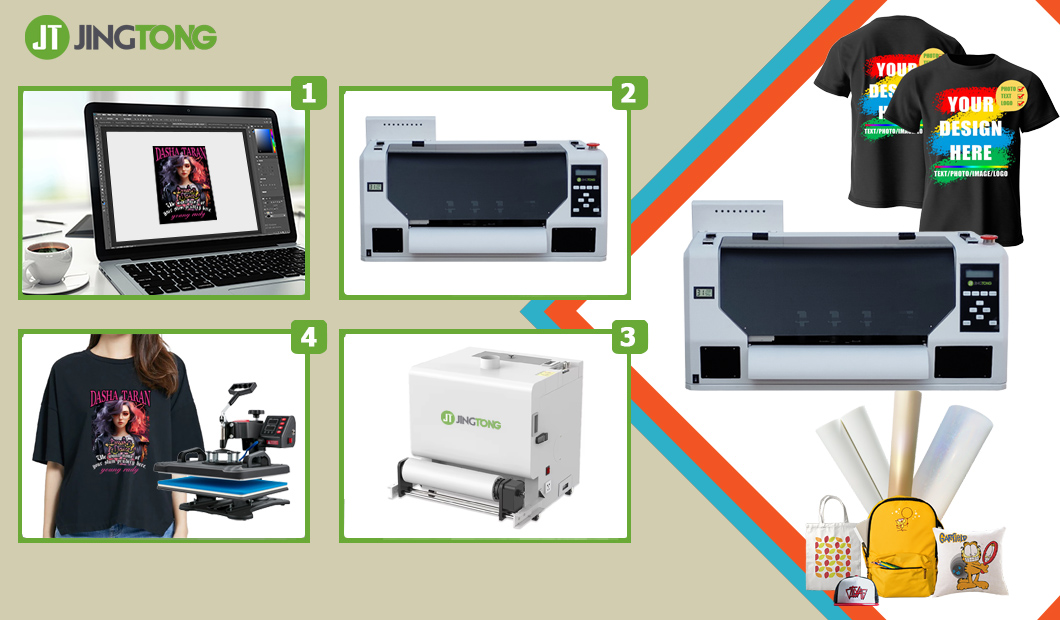

Color Channel for Design Spot
Create spot color channels using a variety of design applications.
Drawing Software RIP
Utilize RIP software; spot color and color are RIP out.
Drying While Printing And Powdering
DTF Fluorescent printing, dusting, drying, and automatic winding are all integrated processing steps.
Pressing of Garments
The printed PET film will either be manually or mechanically cut, hot pressed, and torn before being considered complete. |
 |
FAQ – Dual XP600 A3 DTF Printer (U13D) with Powder Shaker
1. What is this DTF printer bundle used for?
This bundle is designed for DTF (Direct to Film) printing, allowing you to print designs on PET film, apply hot-melt powder, cure the film, and transfer designs onto T-shirts, hoodies, bags, and other textiles.
2. Which printheads does the printer use?
The printer is equipped with dual Epson XP600 printheads, providing a good balance of print quality, speed, and cost efficiency for small to medium DTF production.
3. What is the maximum printing size?
The printer supports A3 size printing, suitable for most apparel logos and graphic designs.
4. Does the printer support white ink?
Yes. The printer supports CMYK + White ink, essential for vibrant DTF transfers on both light and dark fabrics.
5. What does the powder shaker and oven do?
The powder shaker automatically coats and shakes off hot-melt powder, while the oven cures the printed film, ensuring strong adhesion and consistent transfer quality.
6. What materials can be transferred after printing?
DTF transfers can be applied to cotton, polyester, blends, and many other fabrics, making the system highly versatile.
7. Is this bundle suitable for beginners or small businesses?
Yes. The all-in-one bundle simplifies the DTF workflow and is ideal for startups, small print shops, and on-demand apparel businesses.
8. What software is required?
The printer works with professional DTF RIP software to control color output, white ink layers, and print settings. A Windows-based computer is typically required.
9. What maintenance is required?
Routine maintenance includes:
• Daily nozzle checks
• Regular printhead cleaning
• Proper white ink circulation
• Cleaning excess powder from the shaker
These steps help ensure stable operation and long printhead life.
10. What is the warranty?
Jingtong machines come with a one-year warranty, except for the print head. During the warranty period, we will send some parts for replacement free of charge, and damaged parts should be returned promptly.
